30" & 36"
RANGE HOOD
30"
UGP-30RH PL1
36"
UGP-36RH PL1
OWNER'S GUIDE
serial number:
NOV17V1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UGP-30RH PL1 and is the answer not in the manual?

Questions and answers

Related Manuals for Unique UGP-30RH PL1

Summary of Contents for Unique UGP-30RH PL1

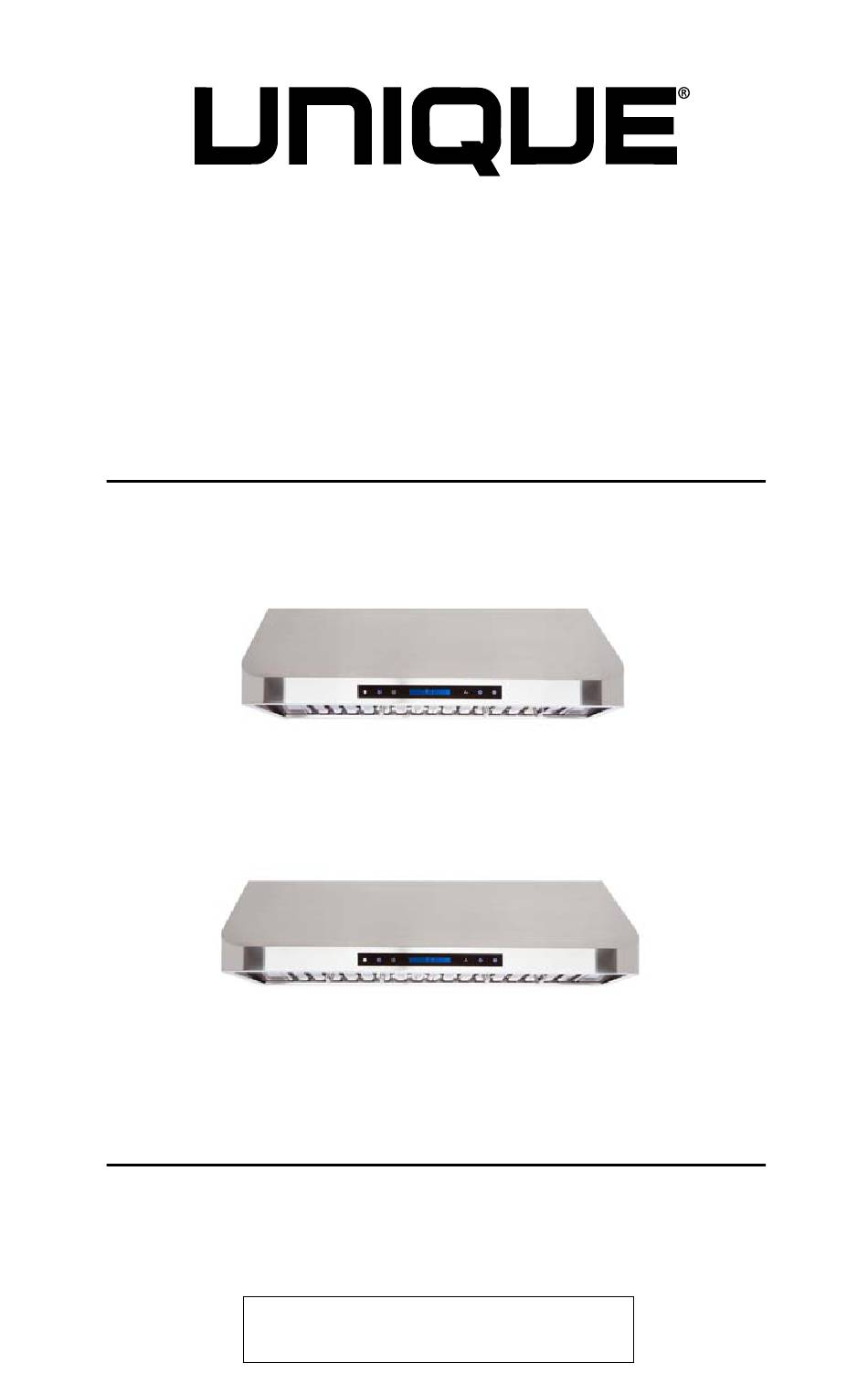

  • Page 1 30” & 36” RANGE HOOD 30” UGP-30RH PL1 36” UGP-36RH PL1 OWNER’S GUIDE serial number: NOV17V1...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Safety notice Electrical requirements and installation requirments Examples and positioning of possible ducts Clearance training Installation Necessary tools Description orders for 02 series, range hood Maintenance Technical specifications Trouble shooting Wiring diagram Appliance information Notes Contact us Limited warranty 30”...

  • Page 3: Safety Notice

    SAFETY NOTICE Approved for residential type units for residential use only read these instructions and be safe. Please read these instructions completely before starting. The installation of the appliance must respect all codes. Important: Save these instruction so that you can provide the elec- trical inspector in your area.
  • Page 4 6. When cutting or drilling into wall or ceiling, be sure not to damage electrical wiring or other access to public service. 7. Always evacuate outside the conduit system. To reduce the risk of fire and to properly exhaust air, be sure that the pipe is leading outside, do not exhaust air into the space between the walls, ceilings, attics, crawl spaces or garages.

  • Page 5: Electrical Requirements And Installation Requirments

    Operative Mode Always leave safety grills and filers in place. Without the presence of these blowers could catch hair, fingers or clothing. The manu- facturer is not liable if detailed in this manual for installation info, maintenance and proper use of the product are not observed. The manufacturer declines all responsibility for any injury caused by negligence.
  • Page 6 Examples and positioning possibilities ducts Follow the letter of the guidelines presented in this manual. The manufacturer declines any liability with respect to any loss, damage or fire caused by non-observance of the instructions con- tained in this manual. Ventilation methods The hood is equipped with a vertical transition to remove fumes outside.

  • Page 8: Clearance Training

    CLEARANCE TRAINING Caution: When install the hood, the height should not be too high or too low. Before the installation, please inspect the maximum height of your ceiling and bonnet.Too high, will affect the efficiency of the hood; too low, stove temperature will damage some parts of the hood.

  • Page 9: Installation

    INSTALLATION If possible, unplug the stove and move it in order to have better ac- cess to the rear wall. Otherwise, place a thick blanket on the counter and the cooking surface to protect it from damage and dirt. Select a flat surface for assembling the device.

  • Page 10: Necessary Tools

    Lead in the wall If the duct vents at the rear: Note: For a minimum extension of the chimney, we recommend us- ing an adapter circular / rectangular fireplace. • Use a level to draw a straight line from the center line on the tem- plate.
  • Page 11 01 series, 02 series range hood...
  • Page 12 Installation dimension figure of 01 series, 02 series 05 series and 06 series as below: Fix 6pcs screws( see figure 4) to the installation dead plate Fix the installation dead plate to the wall by screws( see figure 5) Use double-faced aluminum foil sealed-joint( see figure 6) Power line color (black to black, white to white, green to green) (see figure 7) Oil box of the hood (see figure 8)

  • Page 14: Description Orders For 02 Series, Range Hood

    DESCRIPTION ORDERS FOR 02 SERIES, RANGE HOOD 02 series range hood operating instruction as following: Function Button: LED light button F1 low speed F2 medium speed F3 high speed F4 time-delay/on-off F5 Light Button: Power on, press F1 button once, turn on the lights, and again to turn off.
  • Page 15 Grease filters The grease filters should be cleaned once a month or as needed. To remove grease filter, pull the metal latch down. This will disengage the filter hood. Tilt the filter down, then remove. To clean the filters, use a solution of warm water and detergent. Let them dry, then re in- stall.
  • Page 16 To avoid when choosing a detergent - Any cleaners that contain bleach, because they attack stainless steel. - Any product containing chloride, fluoride, iodide, bromide, they quickly deteriorate surfaces. - Any combustible products used for cleaning such as acetone, al- cohol, ether, benzene, etc.These products are highly explosive and should never be used near a stove.

  • Page 17: Technical Specifications

    TECHNICAL SPECIFICATIONS MODEL UGP-30RH PL1 UGP-36RH PL1 SIZE 30” (76.2 cm) 36” (91.44 cm) RATED POWER 900 CFM 900 CFM CONTROLS 4 speed power control 4 speed power control NOISE LEVEL Super quiet: 386 CFM (1.5 sones/46 db) Super quiet: 386 CFM (1.5 sones/46 db) Low speed: 490 CFM (3.5 sones/58 db)

  • Page 18: Wiring Diagram

    30/36” WIRING DIAGRAM LED LIGHT LED LIGHT circuit boards BLACK GREEN BLACK GREY(L) GREEN BROWN WHITE WHITE(R) GREEN BROWN BLACK YELLOW 12uF/250V YELLOW BLUE 12uF/250V BLUE MOTOR MOTOR LED LIGHT LED LIGHT circuit boards BLACK GREEN BLACK GREY(L) GREEN BROWN WHITE GREEN BROWN...

  • Page 19: Appliance Information

    APPLIANCE INFORMATION (manual copy - keep with your records) To make care and servicing of your fridge/freezer easy and efficient, please record the following information for future reference: Model: Serial Number: Purchased From: Date Purchased: NOTES...

  • Page 20: Contact Us

    Unique Gas Products Ltd. and by the Seller. 2. Any part of this fridge/freezer returned to the Seller or Unique Gas Products Ltd., which upon examina- tion is determined by them to have been defective in material or workmanship, will at their option be either repaired or replaced under this warranty, within 14 days from date of return to Unique Gas Products Ltd., without charge for materials/parts.
  • Page 21 30” PARTS DIAGRAM AND LIST Item # Description Part # outer cover motor assembly,right UGP-22.99.0053-A0 motor assembly,left UGP-22.99.0054-A0 filter baffle UGP-04.01.0626-A1 filter UGP-20.01.0124-A0 handle UGP-12.03.0021-A0 LED light wire UGP-07.06.0230-A0 LED light UGP-07.04.0132-A0 touch panel UGP-07.09.0191-A0 toggle button UGP-07.02.0135-A0 retaining clip UGP-04.02.0596-A0 Top plate UGP-20.02.0117-A0 fixed plate UGP-04.02.0621-A0 fan assembly UGP-20.05.0119-A0 starting capacitance UGP-07.08.0141-A0 Circuit box UGP-22.99.0056-A0 socket UGP-07.07.0134-A0 plug UGP-07.06.0142-A0...
  • Page 22 36” PARTS DIAGRAM AND LIST Item # Description Part # outer cover motor assembly,right UGP-22.99.0053-A0 motor assembly,left UGP-22.99.0054-A0 filter baffle UGP-04.07.1149-A0 filter UGP-20.07.0216-A0 handle UGP-12.03.0021-A0 LED light wire UGP-07.06.0230-A0 LED light UGP-07.04.0132-A0 touch panel UGP-07.09.0191-A0 toggle button UGP-07.02.0135-A0 retaining clip UGP-04.02.0596-A0 Top plate UGP-20.02.0117-A0 fixed plate UGP-04.02.0621-A0 fan assembly UGP-20.05.0119-A0 starting capacitance UGP-07.08.0141-A0 Circuit box UGP-22.99.0056-A0 socket UGP-07.07.0134-A0 plug UGP-07.06.0142-A0...
