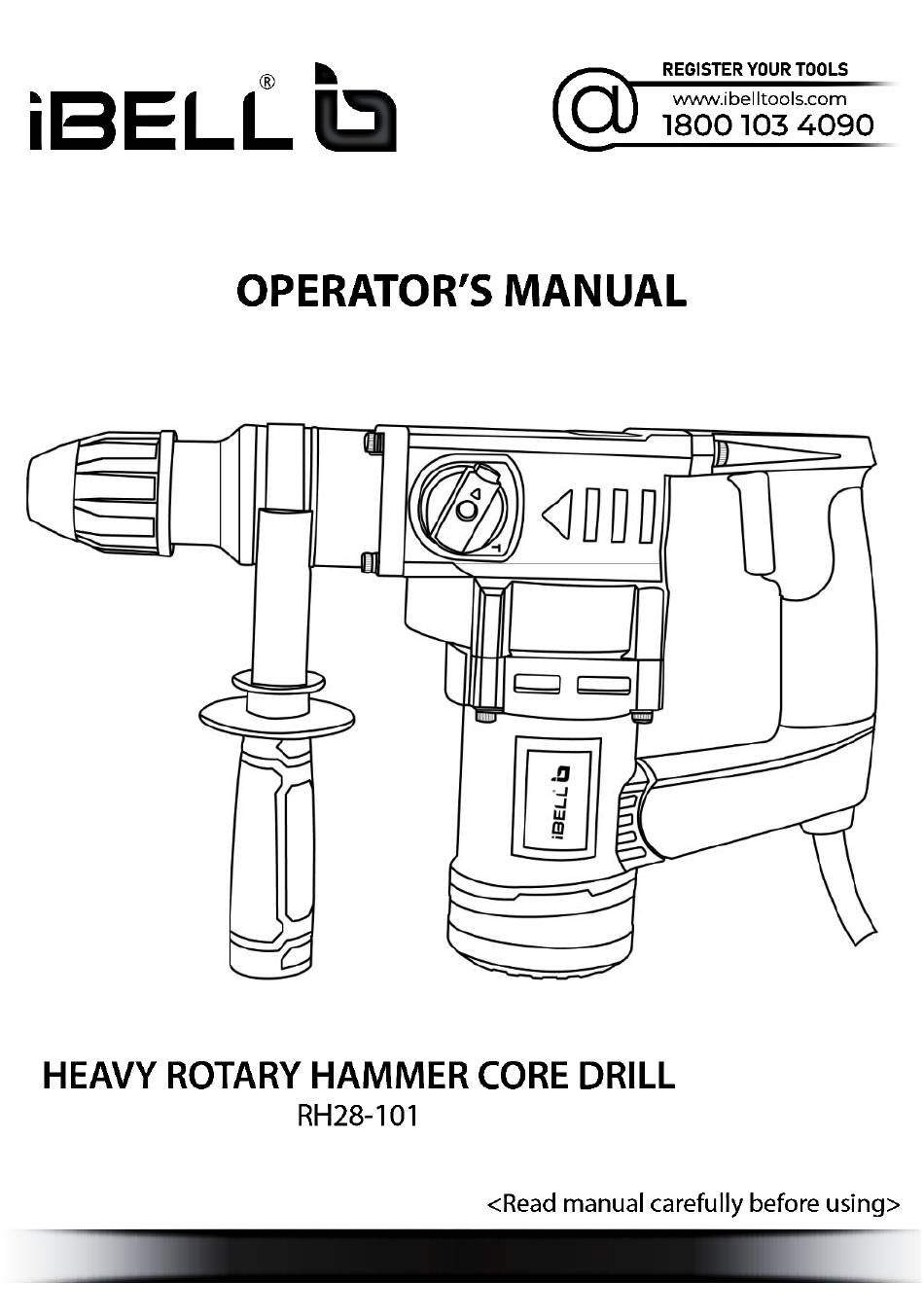

iBell RH28-101 Operator's Manual

Heavy rotary hammer core drill

Hide thumbs

Table Of Contents

Quick Links

Table of Contents

Need help?

Do you have a question about the RH28-101 and is the answer not in the manual?

Questions and answers

Summary of Contents for iBell RH28-101

Page 3: Table Of Contents
TABLE OF CONTENTS 1. GENERAL POWER TOOL SAFETY WARNINGS __________ 2. ROTORY HAMMER SAFETY WARNINGS________________ 3. PRODUCT OVERVIEW _________________________________ 4. PRODUCT SPECIFICATIONS ___________________________ 5. SETUP _________________________________________________ 6. PRODUCT FUNCTIONS AND ASSEMBLY________________ 7. GENERAL OPERATION ________________________________ 8. TROUBLESHOOTING __________________________________ IBL RH28-101...
Page 4: General Power Tool Safety Warnings
Keep it away from heat, oil, sharp edges or moving parts.  When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. IBL RH28-101...
Page 5  When servicing a power tool, use only identical replacement parts. Follow instructions in the maintenance section of this manual. Use of unauthorized parts or failure to follow maintenance instructions may create a risk of shock or injury. IBL RH28-101...
Page 6  Injuries and damage to property due to broken cutting attachments or the sudden impact of hidden objects during use.  Danger of injury and property damage caused by other objects or due to natural reactions or calamities. IBL RH28-101...
Page 7: Rotory Hammer Safety Warnings
Improperly reconditioned chisels could cause injury.  Wear gloves when operating tool or changing bits. Accessible metal parts on the tool and bits may get extremely hot during operation. Small bits of broken material may damage bare hands. IBL RH28-101...
Page 8: Product Overview
PRODUCT OVERVIEW 1. SDS Plus Chuck/Tool Holder 2. Mode Adjustment knob with button 3. ON/OFF Switch 4. Auxiliary Handle 5. Grease box cover IBL RH28-101...
Page 9: Product Specifications
: 4000/min : 5 J Impact energy per stroke : 27 m/s Vibration level : 26 mm SDS plus Chuck capacity Max Drill performance : Concrete – 28 mm Stone – 28 mm Protection class : Class II IBL RH28-101...
Page 10: Setup
 For safety reasons it is essential to read the entire instruction manual before first operation and to observe all the instructions mentioned in it. IBL RH28-101...
Page 11: Product Functions And Assembly
Never change the mode while the rotary hammer is in running. Mode Description Hammering only: for light chipping, chiselling and demolition applications. In this mode the tool can also be used as a lever to free a jammed drill bit. Hammer-drilling: for concrete and masonry drilling operations. IBL RH28-101...
Page 12  Rotate the auxiliary handle to the desired position and tighten the handle. INSERTING AND REMOVING SDS PLUS ACCESSORIES This tool uses SDS Plus accessories (a cross-section of an SDS Plus bit shank is shown). SDS Plus shank cross-section IBL RH28-101...
Page 13 Mount the core bit shank to the rotary hammer. Then suitable drill or chisel bit can be inserted. When inserting and removing the core bit assembly, turn OFF the switch and disconnect the plug form the power receptacle. IBL RH28-101...
Page 14: General Operation
Always switch the product off, disconnect the product from the NOTE: power supply and let the product cool down before performing inspection, maintenance and cleaning work! Only perform repairs and maintenance work according to these instructions! All further works must be performed by a qualified specialist! IBL RH28-101...
Page 15 Open the grease box cover (5) at the top of the hammer using the pin spanner wrench provided. Then refill the grease provided with your tool. Always check there is sufficient grease in the grease box before usage. IBL RH28-101...
Page 16: Troubleshooting
Only perform the steps described within these WARNING! instructions! All further inspection, maintenance and repair work must be performed by an authorised service centre or a similarly qualified specialist if you cannot solve the problem yourself! IBL RH28-101...
Page 17 Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice. Do not dispose this product by normal household waste, but take it to a collection point and recycling of electrical and electronic equipment.
