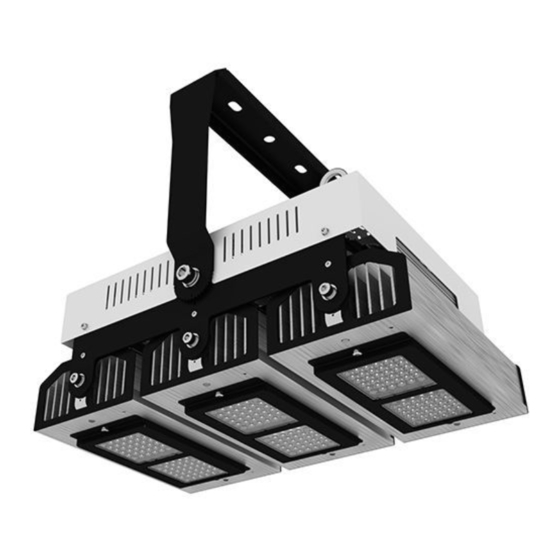

Summary of Contents for Midstream Modus Series

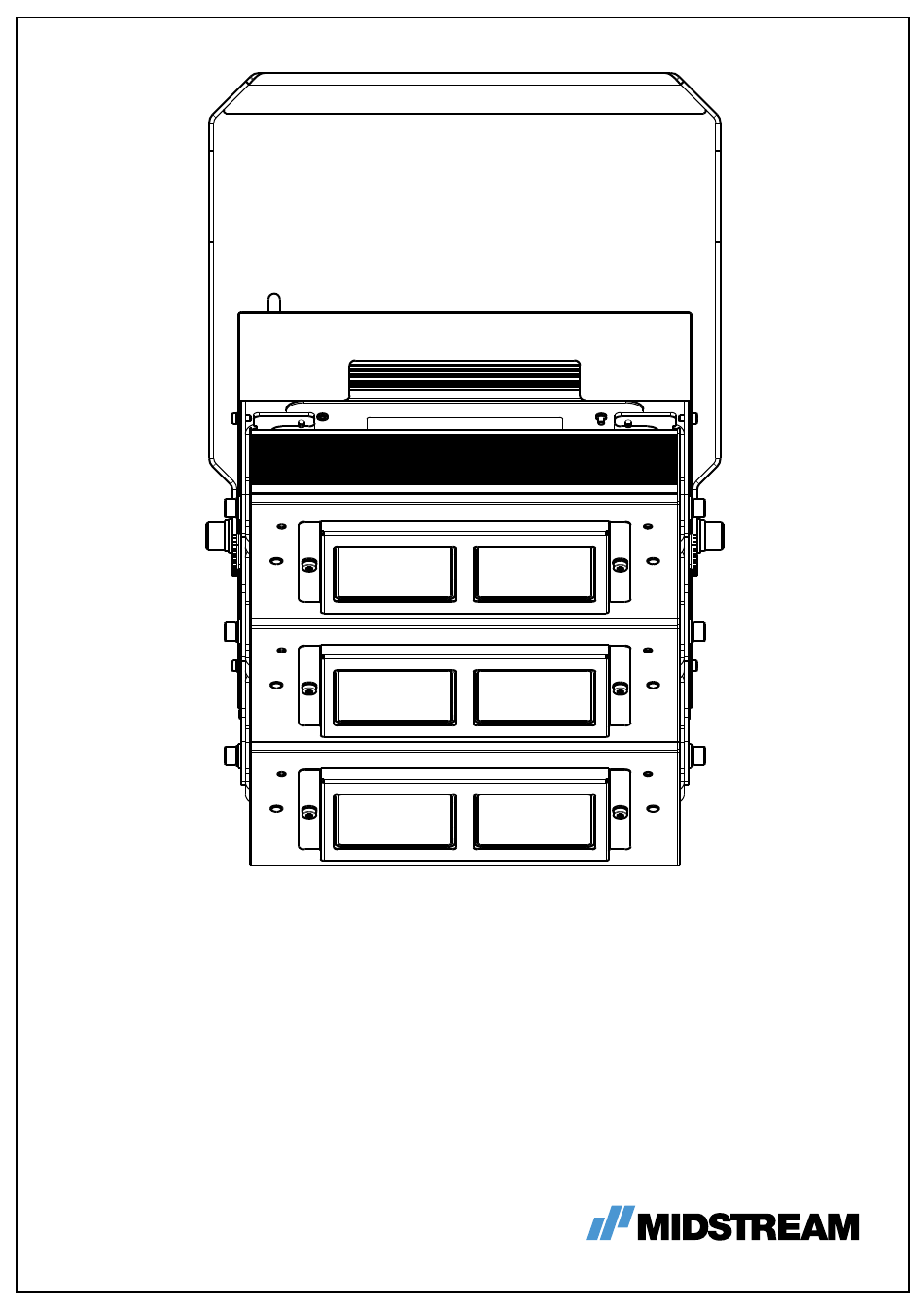

- Page 1 Modus Series INSTALLATION GUIDANCE v1.0...
- Page 2 Contents Section PAGE 2. Safety instructions General notes Safety instructions Use the device only as described in this user manual. Any other Only persons with sufficient physical, sensorial, and intellectual Contents use or use under other operating conditions is considered to be abilities and having corresponding knowledge and experience Bracket mounting and aiming improper and may result in personal injury or property damage...
- Page 3 MIDSTREAM LIGHTING LTD - 1 CHESHAM STREET - LONDON - SW1X 8ND - UNITED KINGDOM - Ph +44 207 584 8310 This drawing is property of MIDSTREAM LIGHTING LTD. All rights reserved the partial or total reproduction of it is forbidden without express consent.
- Page 4 5. Visor mounting 6. Floodlight connection Power supply 3 poles - white SEE DETAIL Secure visors Control system 1-10 V or DALI Mount the LED luminaire with the highlighted threaded holes of LED modules facing upwards and pointing away from the mast. 2 poles - yellow Securing the cable Power supply cable must have 3 conductors:...
- Page 5 7. Electrical connection 7. Electrical connection CONTROL - 2 pole POWER - 3 pole Connector socket Wiring the terminal The connector socket can fit a H05RN-F or H07RN-F rubber cable with a maximum outer diameter of 12 mm and the conductor Insert each wire into the socket terminal, matching wire color with the “L”, “N”...
- Page 6 8. Electrical specifications Modus 150 Modus 300 Modus 600 Modus 900 Modus 1200 Input Voltage 90-305 V ac Input Frequency 50 – 60 Hz Absorbed Power 145 W 330 W 660 W 990 W 1320 W Power Factor 0.95 Inrush Current (I2t) 2.6 A 3.4 A 6.4 A...
- Page 7 For translations, digital versions or more information please head to https://www.midstreamlighting.com/installation-guides European HQ Midstream Ltd. Wessex House, 1 Chesham Street, London SW1X 8ND, United Kingdom Telephone: +44 207 584 8310 Email: info@midstreamlighting.com US HQ Midstream Lighting Ltd. 66 West Flagler Street, Miami, FL 33130, USA Telephone: (888) 549-6775 Email: info@midstreamlighting.com...
