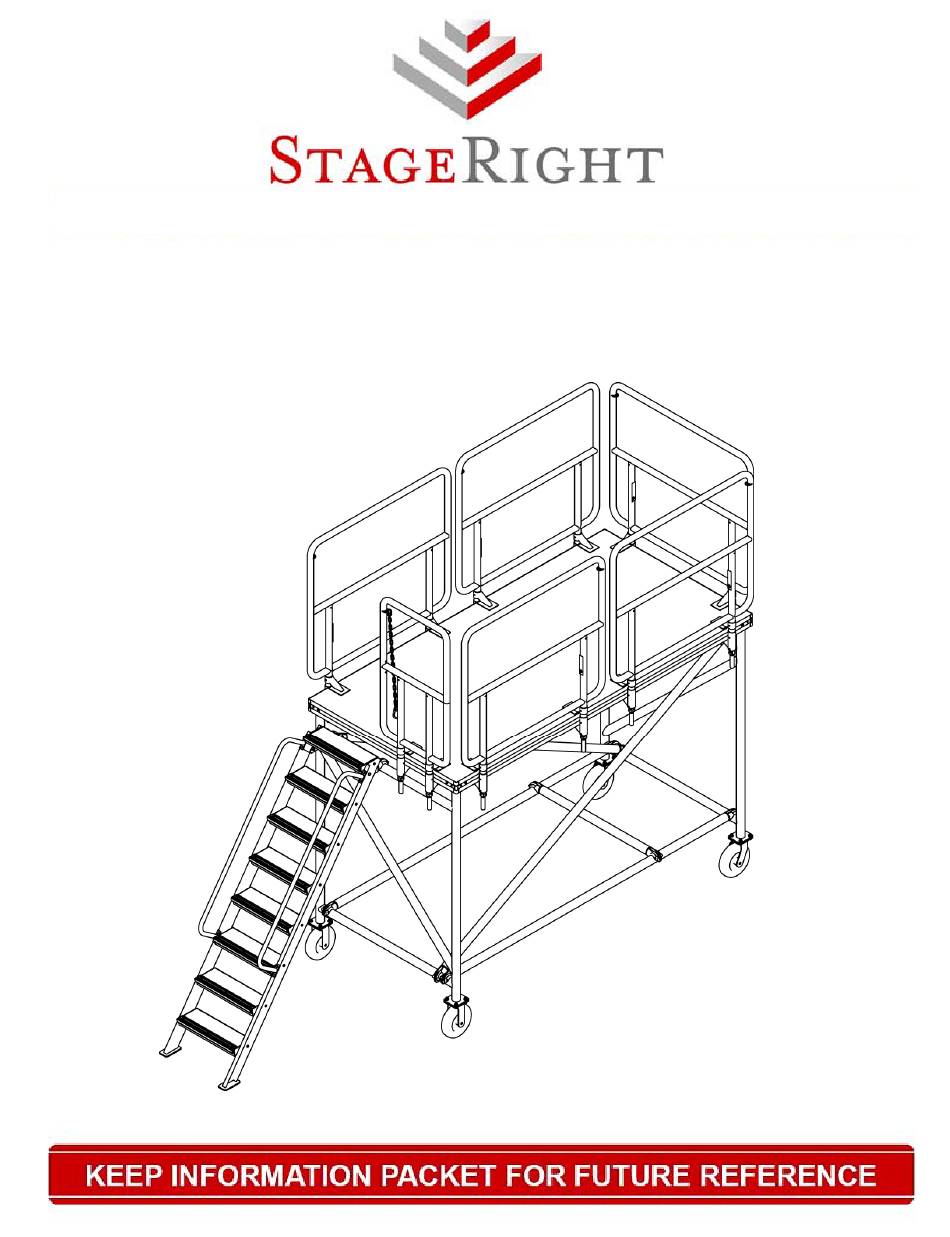

StageRight 360168 Product Information Packet

Stadium pro director's tower

Advertisement

Quick Links

P
I
P
RODUCT
NFORMATION
ACKET
P
N
RODUCT
AME: Stadium Pro Director's Tower
Part Number: 360168

Advertisement

loading
Need help?

Need help?

Do you have a question about the 360168 and is the answer not in the manual?

Questions and answers

Summary of Contents for StageRight 360168

  • Page 1 RODUCT NFORMATION ACKET RODUCT AME: Stadium Pro Director’s Tower Part Number: 360168...
  • Page 2: Table Of Contents

    Careful study of this manual is encouraged to obtain a thorough understanding of your new Director’s Tower and its functions and maintenance. If your manual becomes lost or destroyed, StageRight will gladly provide you with a new copy. Should you require additional information or assistance, please feel free to contact us at 1-800-438-4499.
  • Page 3: General Safety Rules

    General Safety Rules WARNING! READ AND UNDERSTAND ALL INSTRUCTIONS Failure to follow all instructions listed below may result in serious personal injury. SAVE THESE INSTRUCTIONS SET BRAKES ON THE DIRECTOR’S TOWER WHILE IN USE AND WHEN LEFT UNATTENDED! Stay clear of all pinch points. Keep hands away from pinch points. Use on level surface.
  • Page 4: Symbols

    Symbols Safety Alert: Precautions that involve your safety Read The Operator’s Manual: To reduce risk of injury, user must read and understand operator’s manual before using this product Pinch Point Warning Label: Failure to keep hands away from pinch points will result in personal injury For Off-Road Use Only Warning Label: Field equipment is not intended or designated for roadway travel.
  • Page 5: Technical Specifications

    StageRight Corporation Technical Specifications Stadium Pro Director’s Tower Weight: 537 lbs Dim A: 8 ft Dim B: 4 ft Dim C: 42 in Dim D: 6 ft 4’x 8’ platform area 42” rail height for safety and confidence 6’ platform height 6 ½”...
  • Page 6: Assembly Instructions

    Assembly Instructions Note: Assembly will require at least two people. Lay out the understructure as shown. Having parts in approximate layout will be a great help during assembly. With the casters locked, raise the H-Sections. While holding the H-section upright, place the two shorter connector bars on the lower horizontal tube as shown.
  • Page 7 Next, attach longer connector bars to a lower, and an upper horizontal tube as shown. Make sure all frame locks are locked. 2’ Place the shortest connector between the two horizontal connectors, 2 ft. from one end.
  • Page 8 Place deck onto conical nodes. Assure the deck is fully placed on all four nodes. Place rails on deck, to secure rails, turn handles clockwise. Make sure someone is holding the rail until BOTH handles are tightened, and rail is fully secured to the deck. Repeat until all 6 rails are secured.
  • Page 9 Place stair assembly on the top horizontal tube of the h-section containing the 2’ rail. Make sure the Frame Locks are fully secured. Stow the stairs by clipping them to the short crossbar on the base of the tower frame. To release frame locks for stowing stairs or disassembly, push the finger of the lock upward and lift the lock off the tube.
  • Page 10: Customer Service Information

    Engage Disengage CASTER BRAKES MUST BE ENGAGED BEFORE STANDING ON THE DIRECTOR’S TOWER! CLIP THE SAFETY CHAIN WHILE THE DIRECTOR’S TOWER IS IN USE.
  • Page 11: Maintenance

    Customer Service For parts or service contact StageRight Corporation. When ordering parts be sure to provide all relevant information available including the name and part number of the equipment purchased. This information is located on the cover of this product information package. Hours of phone service are Monday thru Friday from 8:00 a.m.
  • Page 12 StageRight Corporation 495 Pioneer Parkway Clare, MI 48617 Toll-free: 800-438-4499 Phone: 989-386-7393 Fax: 989-386-3500 Email: info@stageright.com Web: www.stageright.com...
