Page 2: Table Of Contents

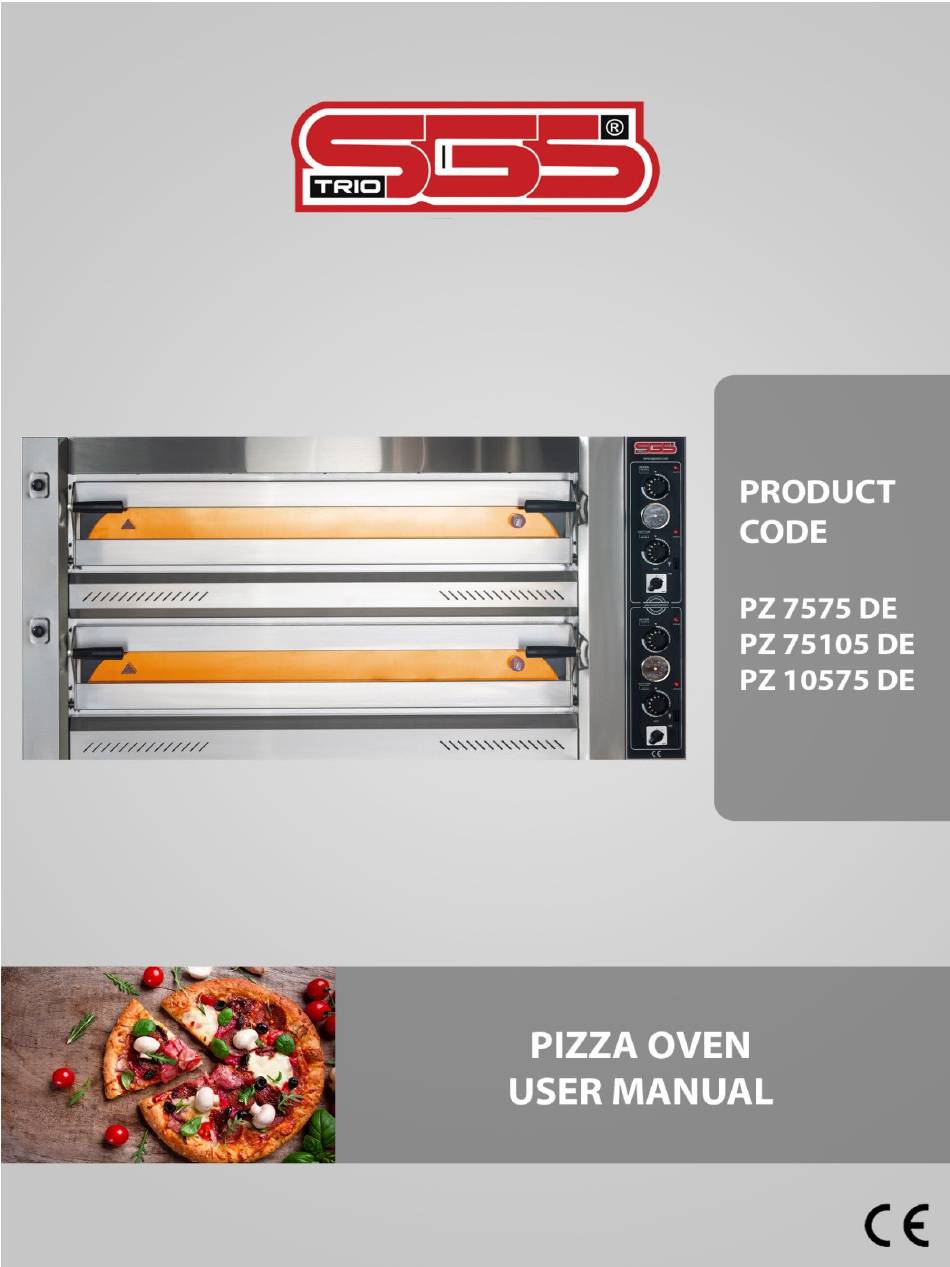

CONTENTS ISSUES PAGE NO COVER CONTENT PRESENTATION TECHNICIAL SPECIFICATIONS OVERAL DIMENSIONS ELECTRIC SCHEME WARNING SIGNS PRODUCT LABEL INFORMATION SAFETY HANDLING AND RELOCATION/ CONTROL BOARD 12-13 USING THE DEVICE / CLEANING AND MAINTENANCE WARRANTY CONDITIONS EXPLODED VIEW SPARE PARTS LIST... -
Page 3: Presentation
In order to exploit the product’s full potential in the long term, we do strongly advise our customers to read the user’s manual before the installation and follow the following points mentioned in this user manual. SGS OVEN ☞ Please carefully read and follow the instructions before using the product Otherwise, the warranty will be void. -
Page 4: Technicial Specifications
TECHNICIAL SPECIFICATIONS TECHNICIAL PZ 7575 DE PZ 10575 DE PZ75105 DE SPECIFICATIONS TOTAL ELECTRIC POWER (KW) POWER SUPPLY 380/400 380/400 380/400 VOLTAGE (V AC) OPERATING 50 / 60 50 / 60 50 / 60 FREQUENCY (Hz.) CURRENT (A) POWER CORD (number... -
Page 5: Overal Dimensions
OVERALL DIMENSIONS CODE PZ 7575 DE 118cm 113cm 78,4cm PZ 10575 DE 150cm 113cm 78,4cm PZ 75105 DE 118cm 150cm 78,4cm... -
Page 6: Electric Scheme
ELECTRIC SCHEME PZ 7575 / PZ 75105... - Page 7 ELECTRIC SCHEME PZ 10575...
-
Page 8: Warning Signs
WARNING SIGNS GROUNDING NETWORK PROTECTION GROUNDING ELECTRICITY HIGH TEMPERATURE ELECTRICAL CONNECTION VALUES 380V -400V / 50/60 Hz... -
Page 9: Product Label Information
PRODUCT LABEL INFORMATION... - Page 10 SAFETY WITH DETAILS ☞ Solid and liquid combustible materials of all kinds (clothing, alcohol and derivatives, petro - chemical products, wood and plastic, curtains, etc.) should not be applied to the machine. ☞ The product can be cleaned with sprayed water and a piece of cloth. ☞...
-
Page 11: Handling And Relocation/ Control Board
HANDLING AND RELOCATION * Electricity should be cut off and the wiring should be removed before relocation. * The product should be using a ligfting device. * The machine should not be dropped or damaged during the relocation. * In order to reach the device under normal operating height of 550 (± 10) mm bench should be set high. - Page 12 USING THE DEVICE PURPOSE AND USE This product is meant to be used in commercia Kitchens such as; restaurants, fast food chains, and cafes. Before using the product, the outer surface of the oven should be cleaned with a cloth soaked in warm water. The oven must be connected to the ventilation ducts under the hood filter.
- Page 13 USING THE DEVICE ATTENTION! : As described in the instructions, utmost care must be applied during Operation and the installation. In case of a failure or a technical issue, please advise to the nearest authorized service. In the event of an intervention of an unauthorized personnel or staff, the warranty will be void.
- Page 14 Provided that the the products are used according to the instruction and not intervened by an unauthorized personnel, SGS products are covered in warranty against production, assembly, and component failures. The warranty does not cover the lamps, electronic board, baking stone and the glass.
