ORLANDO - FIXING AND CARE INSTRUCTIONS
IMPORTANT - Please read these instructions before starting work
1. Check that there are no buried pipes or cables before drilling any holes.
Take extreme care when using electrical equipment near water.
2. Do not fix accessories onto newly papered or painted surface as chemical reactions
could cause discolouration to the products. (Please refer to manufacturer's instructions).
3. We recommend the use of a special drill bit when fixing accessories to a tiled area.

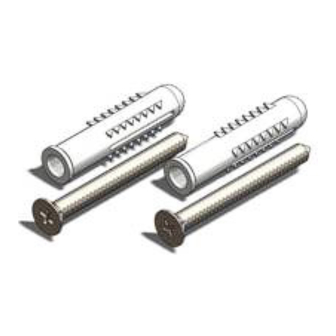

SUPPLIED FIXINGS:

FIXING INSTRUCTIONS

1. Establish position for accessories, making sure there is sufficient room.
2. Use the allen key (2) to loosen the grub screw in the upright pillar and remove the wall fixing plate.
3. Hold the Wall fixing plate in the required position, ensuring the arrow is pointing 'UP', & mark through the holes
with a pencil. If two back plates are necessary, mark the position of the first back plate & then carefully measure
the distance between the upright centers, ensuring the marks are horizontal by use of a spirit level.
Care should be taken when drilling.
4. Drill holes to a depth of 35 mm using a 5.5 mm masonry drill and insert the wall plugs so they are flush
with the wall. (NOTE: The wall plugs provided are recommended for SOLID WALLS only. If using on plasterboard or
hollow walls, specialist fixings ARE required. These can be obtained from a DIY outlet).
5. Fix the wall fixing plate to the wall with the screws provided, then replace the upright, making sure the grub
screw faces directly downwards before tightening.

CARE INSTRUCTIONS

We recommend regular cleaning with a mild soap liquid and drying with a soft cloth. The use of abrasive cleaners or
bleach will damage the finish. Your bathroom should be ventilated to prevent condensation.
1.
