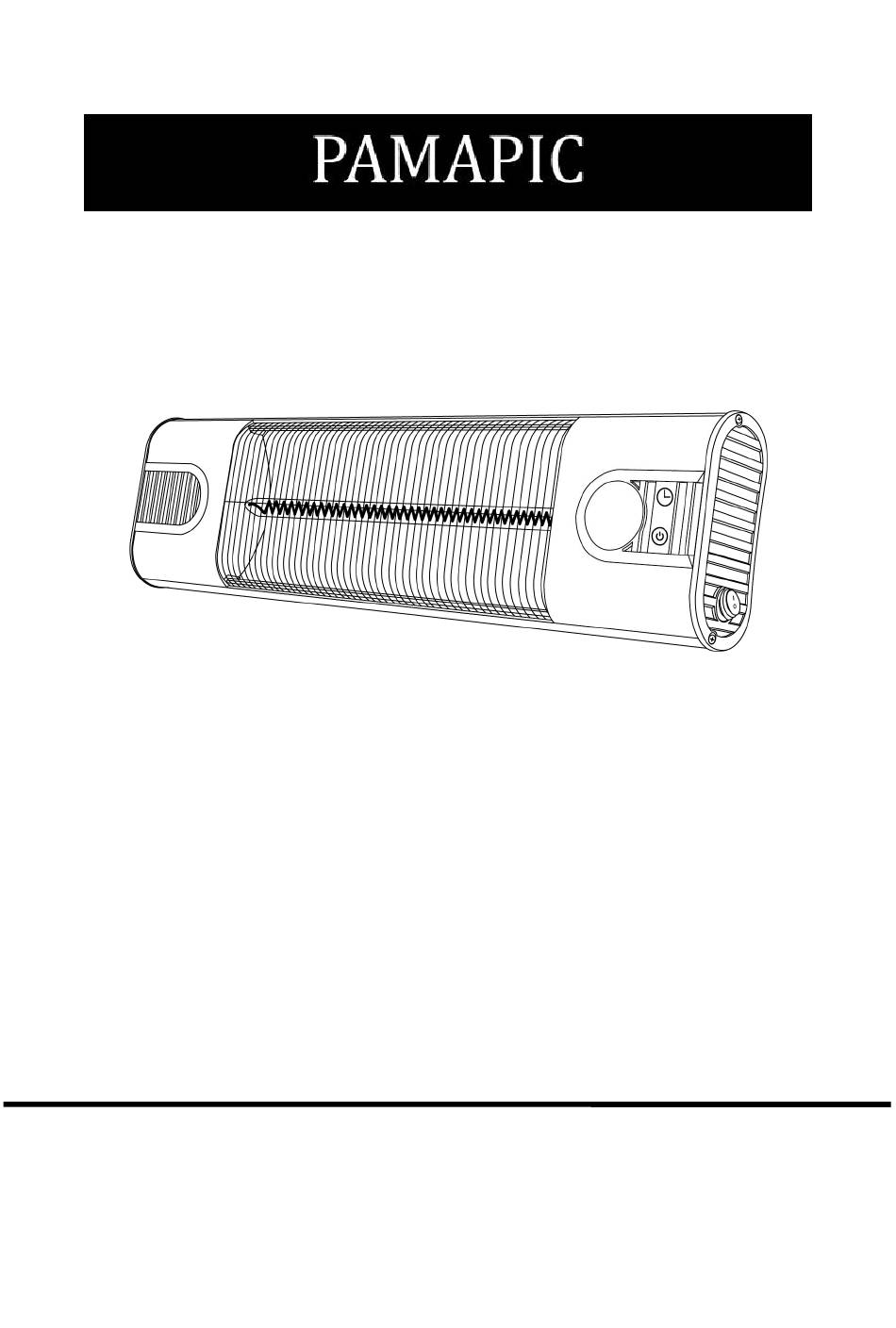

- Page 1 INFRARED HEATER THE USER MANUAL AND WARRANTY CERTIFICATE Model:JHB-1500R If you have any problem, please do not hesitate to contact us via email:pamapic@hotmail.com We will respond to you at our earliest time(within 24h)! Your satisfaction is our greatest pursuit! Warm regards...
- Page 2 WARNING! PLEASE DO NOT USE THIS PRODUCT IN THE VERTICAL POSITION Distinguished Customer, This manual has been designed for our Infrared Line, Infrared Star and Infrared U K Line models. You have purchased a high quality, efficient and original Infrared Heater. We would like to express our gratitude to you for your appropriate choice and confidence in our company.
-
Page 3: Table Of Contents
1. Table of contents 1. Table of contents 2. Safety 2.1 Safety Instructions (A+B) 2.2 Safety Instructions (C+D) 3. Installation 3.1 Installation Instructions 3.2 Installation Instructions Position + Distance 3.3 Installation Instructions with Right and Wrong Positions 4. Using steps 5. -
Page 4: Safety
2. Safety 2.1 Safety Instructions (A+B) A-Electrical Connection Safety Check whether your appliance and power cord are damaged before operating your appliance. Check whether there is any crack, disjoint or scratch on the filament (heating tube). If any, contact with your authorized technical service. If you appliance or power cord is damaged, do not operate your appliance and return ... - Page 5 Do not make use of your heater to light up cigarette or similar materials. Supervision is needed when this product is used anywhere near children. The appliance is not intended for use by children or other persons without assistance or supervision if their physical, sensory or mental capabilities prevent them from using it safely.
-
Page 6: Installation
Take out the front grid to clean the reflector (reflecting mirror) and the filament and apply the instructions on page 15. D-Repair and Service (page 16) Attention! Only technical services and persons authorized by professional maintenance staff may serve, repair and replace the parts of this heater. Distinguished Customer: Please read safety instructions carefully for the security of you, your family and your belongings before operating your appliance. - Page 7 Relieve the four 25×25mm square fastener washers in the canal on the back of the heater and fasten 2 brackets to the canal of the backside of the heater by the help of screws. The screws on the back of the heater should not be tightened too tightly.
- Page 8 Join the brackets on the heater with the brackets, fastened on the wall, with help of figured screw-nuts. Install the heater under necessary angle (in the direction to the area being heated). You could loosen the screws connecting the heater bracket to the wall bracket to change the best Angle of heating.
-
Page 9: Using Steps
Electric wiring for the heater has to be done by the qualified specialist. 4.Using steps Step 1：Connect the power line and the power strip. Step 2：Turn on the side heater switch. - Page 10 Step 3：Turn on the main power switch , which is standby. the digital screen shows P1, the temperature reaches the first gear.. Step 4：Touch Switch Diagram Case ，the digital screen shows P2, the temperature reaches the second gear. Step 5：Touch Switch Diagram Case ，the digital screen shows P3, the temperature reaches the third gear.
-
Page 11: Application Fields
Step 6: Turn on the timer next to the power switch, After the function is turned on, the touch time can be adjusted at will for 1-24 hours to stop at a fixed time. The digital screen shows 0.1 for 1 hour and 0.2 for 2 hours. 5. -
Page 12: Specifications
6. Specifications Voltage 110-120V~ Frequency 60Hz Electric power(W) 1500W Product size 690*80*180mm Product weight 2.1kg Operating Instructions 7.1 Definitions of the Buttons on the Remote Control The functions of the heater may be controlled via the buttons on your remote control and LED screen. -
Page 13: Operation Of The Remote Control
1. On / Off Switches on or off the heater or stands it by. 2. P1 After turn on the heater, you can choose low heating. 3. P2 After turn on the heater, you can choose moderate heating. 4. P3 After turn on the heater, you can choose high heating. -
Page 14: Manual Operation
7.3 Manual Operation Control through the main module on the heater: 1.Control through the main module on the heater: The 1st digit on the screen illustrates P symbol while 2nd digit illustrates power level mode from 1 to 3. 2.After pressed ON / OFF button, the power level mode (P1, P2, P3)can be adjusted through the buttons on the switch on heater. -
Page 15: Technical Service
Cleaning Attention! Regular and careful cleaning helps your heater operate for longer years and more efficiently. 1- Unplug your power cord for your safety before cleaning your appliance. 2- Press the grid wire of the heater and then remove it. 3- Make sure that the power is off for your safety. -
Page 16: Terms Of Warranty
10. Terms of Warranty Warranty by SUN does not cover the defects arising out of the improper use the appliance. The warranty does not cover the situations below: 1- The damages and defects arising out of improper use. 2- The damages and defects having occurred during the transportation after the delivery of the product to the customer by the company.
