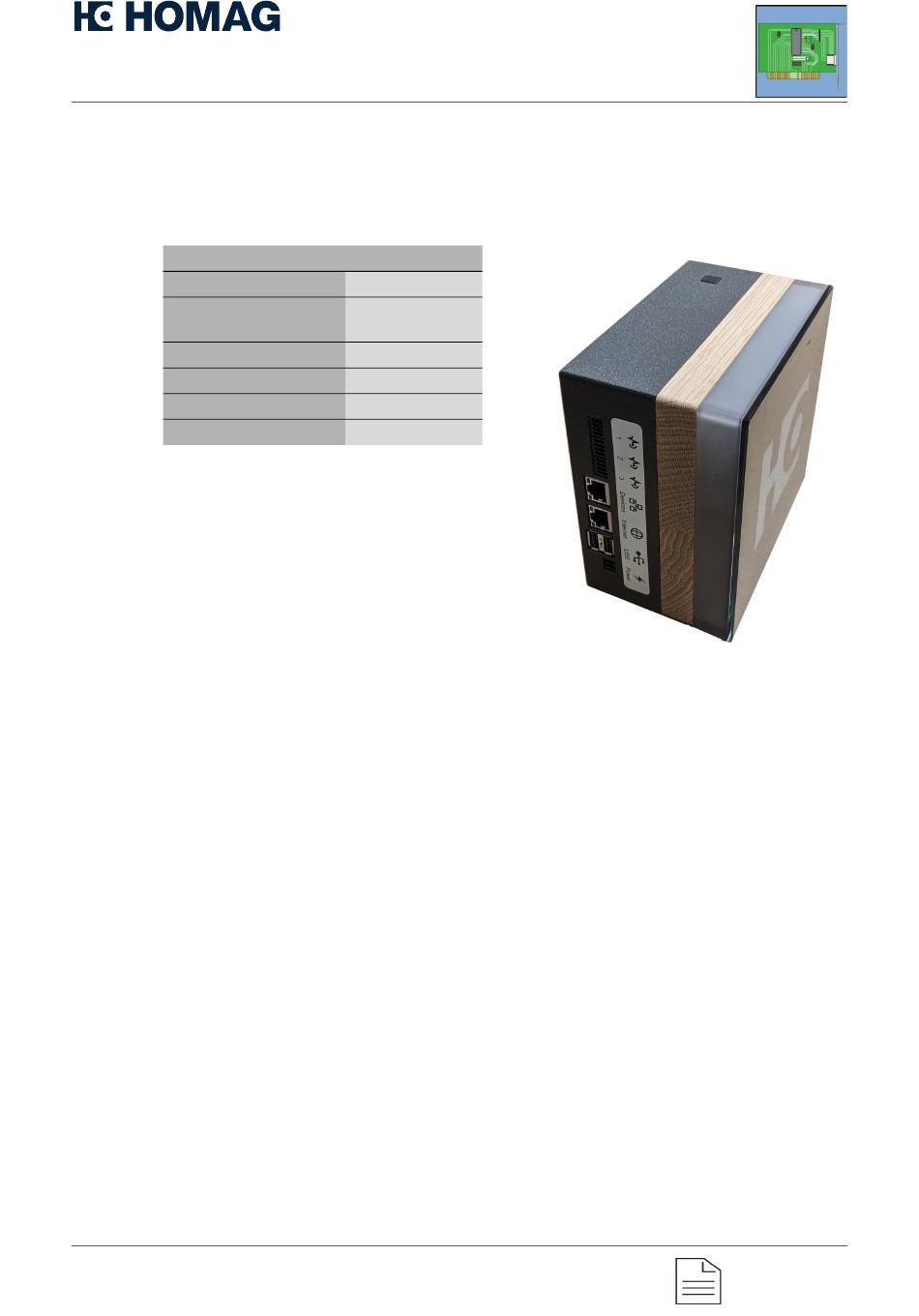

HOMAG CUBE
Smart device
1
Intended use
The HOMAG CUBE is a mini-computer that is
used for assistance systems, e.g. to control
LED strips for an edgeband shelf, or to
identify material for a label printer.
Features
Connection voltage
Connections
Operating temperature 10–35
9082462090 _ 100210512 _ 82 _ ENU _ 00
Values
24 V
DC
2X
Ethernet
2XUSB
I/OS
°C
50–95
°F
4.6.2
1 / 24
Advertisement
Table of Contents
Summary of Contents for HOMAG CUBE
-
Page 1: Intended Use
HOMAG CUBE Smart device 4.6.2 Intended use The HOMAG CUBE is a mini-computer that is used for assistance systems, e.g. to control LED strips for an edgeband shelf, or to identify material for a label printer. Features Values Connection voltage... -
Page 2: Table Of Contents
Exiting the menu 3.3.2 Menus and options Assembly Stand-alone Cabinet mounting Wall mounting Integration into a saw Connecting the CUBE Commissioning Status display Routine maintenance / Care Troubleshooting 9082462090 _ 100210512 _ 82 _ ENU _ 00 2 / 24... -
Page 3: Functions / Sequences
See the chapter entitled "CUBE power supply" The CUBE can be connected to the network and to the device to be connected, e.g. an LED box, via the two Ethernet interfaces. There is also a status display on the HOMAG Printer control CUBE. -
Page 4: Operation
HOMAG CUBE Smart device 4.6.2 Operation 9082462090 _ 100210512 _ 82 _ ENU _ 00 4 / 24... -
Page 5: Connections/Display/Buttons
Only devices that require a maximum current of 100 mA may be connected to the USB interface. Note • The HOMAG CUBE may be used in indoor spaces only. • It should not be exposed to direct sunlight or heat radiation. -
Page 6: Supply
HOMAG CUBE Smart device 4.6.2 Supply A plug-in power supply unit is required to supply the HOMAG CUBE with power. The power supply unit is included in the sales package. Note • Only connect the power supply unit for the CUBE to suitable power supplies. -
Page 7: Button Functions
The menus and options are displayed with different colors and LEDs on the status display of the CUBE. For some options, the color also indicates whether they are activated or deactivated. If the operator does not interact within 30 seconds, the CUBE returns to its initial state. -
Page 8: Navigating Through Menus And Executing Options With The Button
To get to the main menu, press button 2.7 once. This will take you to the first option. The color of the HOMAG logo on the front changes to blue and the first LED on the corners of the status display lights up white. -
Page 9: Exiting The Menu
To exit the menu, do not release the button after 2 seconds, otherwise the currently selected option will be executed. If the operator does not interact within 30 seconds, the CUBE returns to its initial state. 9082462090 _ 100210512 _ 82 _ ENU _ 00 9 / 24... -
Page 10: Menus And Options
When this option is selected, the sixth LED lights up white. Note The password for the factory setting can be found on the type plate of the CUBE. This is located on the rear. 9082462090 _ 100210512 _ 82 _ ENU _ 00 10 / 24... -
Page 11: Assembly
HOMAG CUBE Smart device 4.6.2 Assembly Note The sales package includes instructions for mounting and installation. Depending on the application, different mounting variants are possible for the CUBE: • Stand-alone, e.g. on the desk • Cabinet mounting • Wall mounting •... -
Page 12: Stand-Alone
HOMAG CUBE Smart device 4.6.2 Stand-alone Free-standing, e.g. on the desk. 9082462090 _ 100210512 _ 82 _ ENU _ 00 12 / 24... -
Page 13: Cabinet Mounting
(or you may have already processed this with the CNC program). Now screw the two halves of the CUBE to the cabinet door and connect them to each other using the integrated plug connector. -
Page 14: Wall Mounting
HOMAG CUBE Smart device 4.6.2 Wall mounting The CUBE can be secured with screws (see drawing for the bore holes and dimensions for mounting the CUBE on the wall). In addition, the CUBE can be attached to magnetic surfaces by means of the magnets integrated into the housing. -
Page 15: Integration Into A Saw
CUBE in a self-built rack for a saw. Drawings for the installation of the CUBE can be downloaded free of charge. The CUBE is installed in the door in the same way as for cabinet mounting. The individual installation steps are described in the chapter on cabinet mounting. -
Page 16: Connecting The Cube
Connecting the CUBE Note The LAN socket must allow access to the Internet. Connect the CUBE at Internet connection 2.3 to a LAN socket in your network using a LAN cable. The LAN cable is included in the sales package. - Page 17 HOMAG CUBE Smart device 4.6.2 Connect the CUBE to the LED box and/or printer. Connect the LED box via Ethernet 2.4. Connect the printer via USB interface 2.2. 2x USB Interface Ethernet connection 9082462090 _ 100210512 _ 82 _ ENU _ 00...
- Page 18 Smart device 4.6.2 Insert the power supply unit belonging to the set into the power supply connector on the CUBE 2.1 and plug it into a suitable socket. Check cabling. Power supply connection 9082462090 _ 100210512 _ 82 _ ENU _ 00...
-
Page 19: Commissioning
A mobile end device is required for commissioning. (E.g. a tablet) Install either the "HOMAG productionAssist" app or the "HOMAG materialAssist" app on this mobile end device. You can find these apps in the Google Play Store or the App Store. -
Page 20: Status Display
HOMAG CUBE Smart device 4.6.2 Status display General meaning of the status display Meaning of Color Animation Status light Note status display status Connect, device White, logo white Chaser lights Wait starts Network error White, logo off Chaser lights Restart the... - Page 21 HOMAG CUBE Smart device 4.6.2 Meaning of Color Animation Status light Note status display status Error Yellow, logo Flashing Open APP/open white diagnostics Onboarding/confi White/blue, logo Flashing Open THE APP guration required white and configure it SSH active Turquoise/blue, Flashing, static...
- Page 22 HOMAG CUBE Smart device 4.6.2 Meaning of Color Animation Status light Note display Error during Red, logo red Flashing execution of the menu option Main menu, first First LED white, Static option is selected logo blue Activate/deactiva Second LED Static...
-
Page 23: Routine Maintenance / Care
Note • Do not use any aggressive cleaning agents, abrasives or abrasive pads to clean the CUBE. • Do not spray or pour any liquids directly onto the device. Disposal In accordance with Directive 2012/19/EU –... -
Page 24: Troubleshooting
Smart device 4.6.2 Troubleshooting error description Situation Possible cause Remedies Status display on the CUBE flashing yellow Error Open APP/open diagnostics Status display on the CUBE flashing white Internet connection faulty Check that the Internet connection and router are working ...
