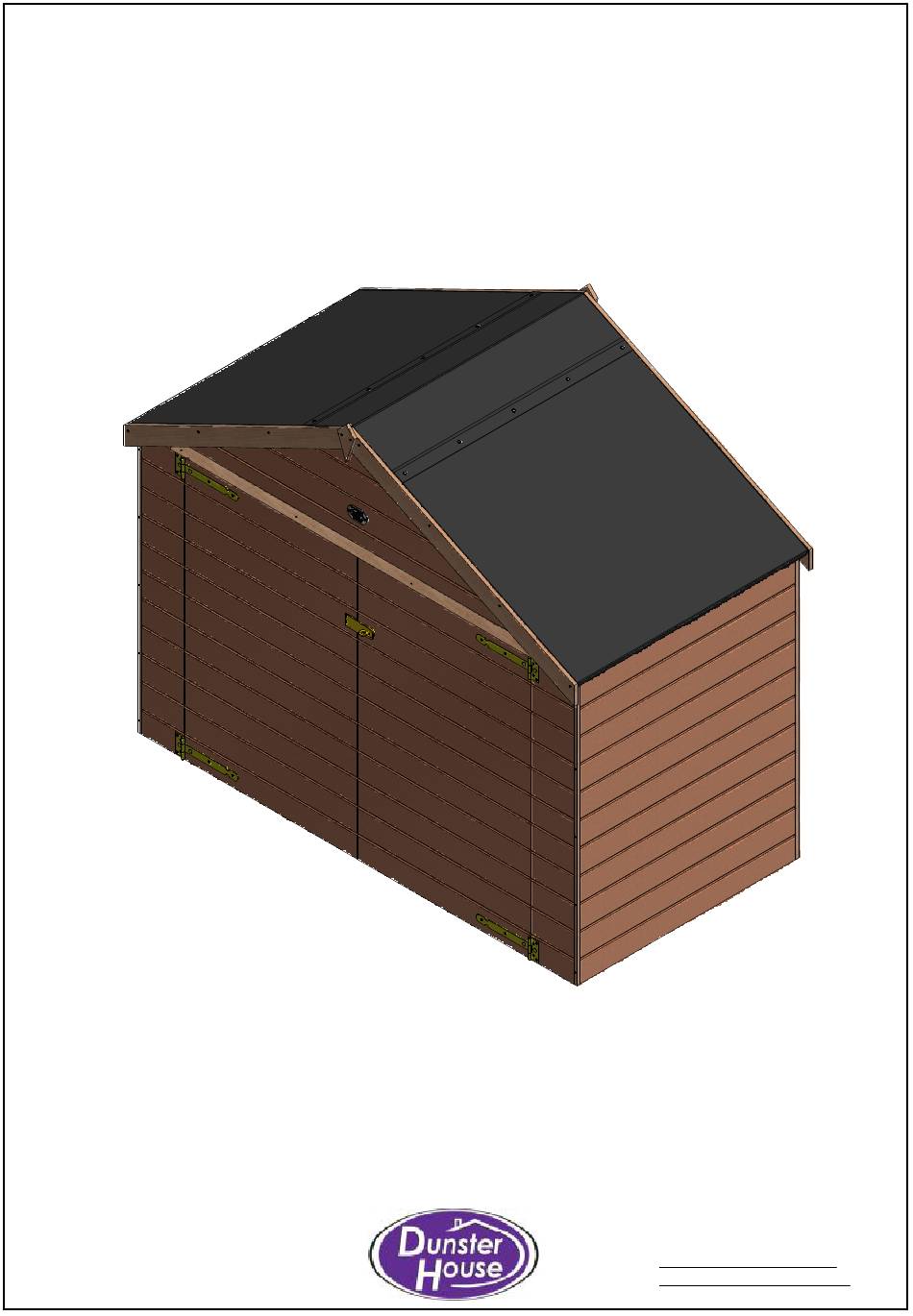

- Page 1 Ariane Bike Storage Shed 2m x 1m Installation Manual P3-2010SH Unique Product Reference Number Manufacturer: ________________________________ Dunster House Ltd. Caxton Road Bedford Bedfordshire Customer Service Department: England cs@dunsterhouse.co.uk MK41 0LF www.dunsterhouse.co.uk...
- Page 2 Queries arising from a neglectful manner of construction, be it foundational or during/due to the erection of the garden building. Queries due to modifications by the owner, causing timber to deform. All valid queries will be dealt with by the exchange or replacement of the defective parts only. P3-2010SH...
-
Page 3: You Will Need
YOU WILL NEED & INFORMATION All dimensions shown in this manual are in millimetres (mm) P3-2010SH... -
Page 4: Pack Contents
PACK CONTENTS - PAGE 1 OF 2 Floor Panel Back Panel Required Required Side Panel Front Panel Required Required Door Panel- Right Door Panel- Left Required Required Apex Back Panel Apex Front Panel Required Required P3-2010SH... - Page 5 90mm Wood Screw 4 required Coach Bolt M6x 60mm Door Hinge 288x84 8 required Required Nut M6 8 required Hasp & Staple 70mm Golden Shootbolt Required 1 required Please note: You may have some fixings left over as we provide extra. P3-2010SH...
-
Page 6: Assembly Steps
ASSEMBLY STEPS Pre-drill parts before fixing with screws. Ensure base is level Floor Panel Back Panel Floor Panel Back Panel SIDE VIEW 6x 60mm Screw Flush Floor Panel P3-2010SH... -
Page 7: Top View
Pre-drill parts before fixing with screws. Top View Back Panel Back Panel Side Panel Side Panel 4x60mm Screw Floor Panel 2x 60mm Screw Back Panel Side Panel 4x 60mm Screw Back Panel Side Panel Top View 2x 60mm Floor Panel P3-2010SH... - Page 8 2x Front Panel (4x 60mm & 2x 90mm) Side Panel 4x 60mm Screw Side Panel 2x 90mm Screw 4x 60mm Screw 2x 90mm Screw Note: Section of Side Panel hidden for illustration. 2x 60mm Screw 2x 60mm Screw Front Top Timber Front Panel P3-2010SH...
- Page 9 Apex Back Panel 60mm Screw 60mm Screw 60mm Screw 2x 35mm Screw Apex Back Panel Back Panel 2x Back Panel Support (2x 35mm) Back Panel Support Note: Ensure the back supports cover apex and the back panel equally as shown above. P3-2010SH...
- Page 10 Pre-drill parts before fixing with screws. 60mm Apex Front Panel (3x 60mm) 60mm 60mm Roof Support 60mm Apex Back Panel Apex Front Panel 60mm P3-2010SH...
- Page 11 Note: Fix the roof panels by screwing through the Top View timber pieces on to the front and the back panels. Clout nail 15mm Washer Ridge Cover (10x Clout Nail, 10x Washer & 4x 60mm) 2x 60mm 2x 60mm 5x Clout Nail per side P3-2010SH...
- Page 12 Door Panel- Right Hasp (3x 35mm) Note: Fix the hinges to the timber frames at the back of the doors. - 1st Staple (4x 35mm) Fix the hasp and staple on the horizontal timber at the back. - 2nd 35mm Screw P3-2010SH...
-
Page 13: Internal View
Pre-drill parts before fixing with screws. Drip Tray Apex Front Panel Drip Tray (4x 35mm) Note: Fix the drip tray from the inside using 4x 35mm Screw. 35mm Screw Drip Trim Shootbolt (4x 35mm Screw) 35mm Screw Internal View P3-2010SH... -
Page 14: Front View
Pre-drill parts before fixing with screws. 2x Fascia (4x 35mm) Note: The fascias are flush with the roof panels at the top. 2x Fascia (4x 35mm) 35mm Screw Flush Fascia FRONT VIEW Diamond Finial (2x 35mm) 2x 35mm Diamond Finial (2x 35mm) P3-2010SH... - Page 15 Pre-drill parts before fixing with screws. Top View Corner Trim (5x 35mm) Corner Trim Back Panel Corner Trim (5x 35mm) 35mm Side Panel 30mm Screw 2x Corner Trim (5x 35mm) Congratulations on your new Bike Storage Shed! P3-2010SH...
