INFARED MOTION
ACTIVATED SECURITY LIGHT
INSTALLTION INSTURCTIONS
Model # L6003
1 Year Warranty on Fixture
(Does not apply to bulbs, which have no warranty)
Congratulations and Thank You! The fixture you have purchased should give you 1
year of trouble free service. We take pride in the design and construction of each of our
products and work to maintain the quality of our materials and craftsmanship to assure
your satisfaction.
This product is warranted to be free of defects in workmanship and materials for a period
of 1 year from the original date of purchase. If any problems appear (other than burnt
out bulbs, which carry no warranty) within 1 year, the purchaser may return the item,
freight prepaid, together with a copy of your original purchase receipt to:
th
Southwire Co. 11290 80
Ave. Pleasant Prairie, WI 53158
Upon receipt of the item prepaid with a letter describing the problem, and a check for
$7.50 to cover return postage and handling, the company will, at its option, either repair
or replace the defective part or fixture at no charge to the purchaser. This warranty does
Advertisement
Table of Contents
Related Manuals for Southwire L6003
Summary of Contents for Southwire L6003

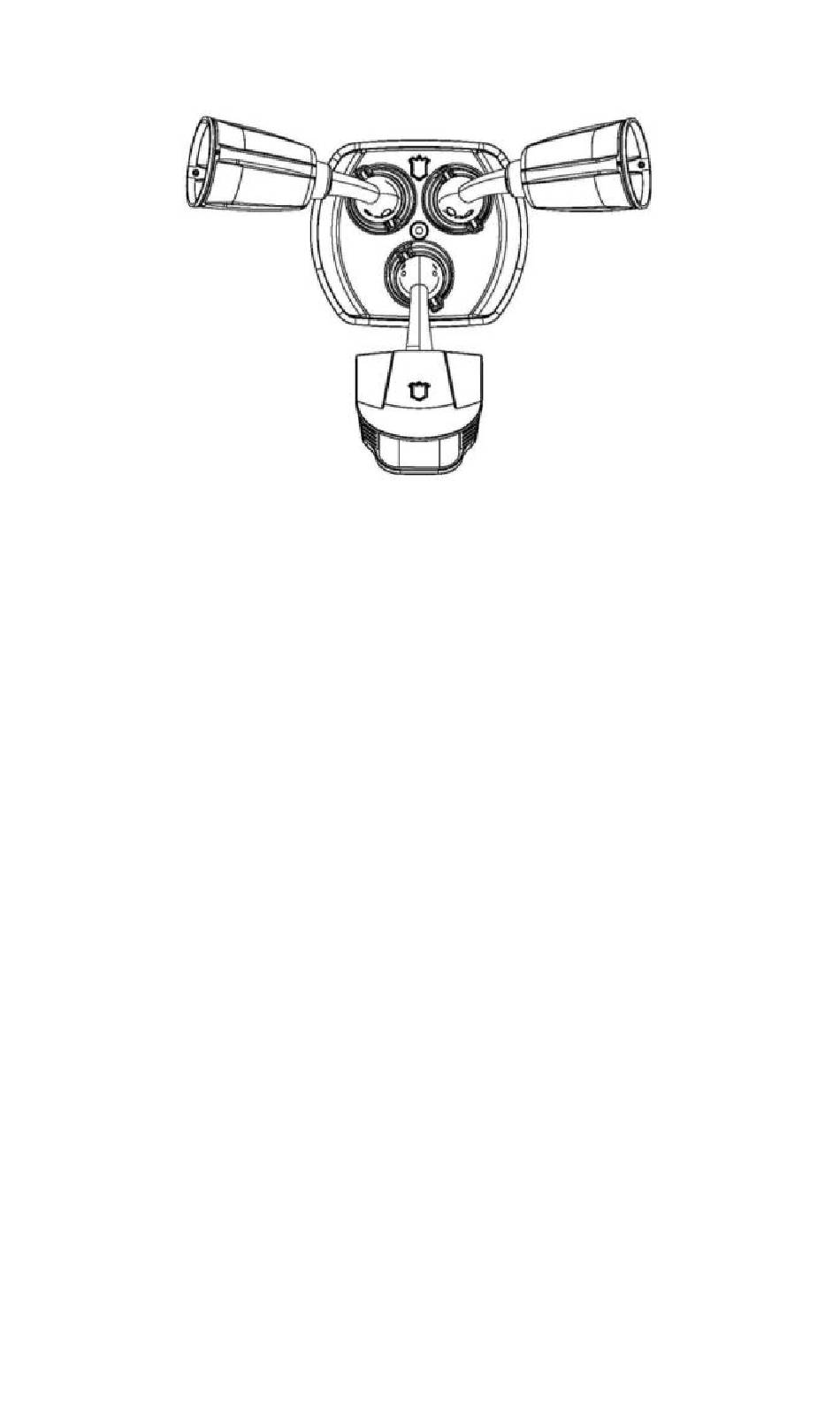

- Page 1 INFARED MOTION ACTIVATED SECURITY LIGHT INSTALLTION INSTURCTIONS Model # L6003 1 Year Warranty on Fixture (Does not apply to bulbs, which have no warranty) Congratulations and Thank You! The fixture you have purchased should give you 1 year of trouble free service. We take pride in the design and construction of each of our products and work to maintain the quality of our materials and craftsmanship to assure your satisfaction.
- Page 2 RETURN TO PLACE OF PURCHASE. PLEASE CALL THE NUMBER BELOW FOR BULB OR PARTS PROBLEMS: (847) 672-4017 8-5 pm (West Coast time). All warranty problems are handled through Southwire Co. HOW IT WORKS Congratulations on the purchase of your Southwire Co. motion sensor light with infrared detection.
- Page 3 Note: The detection range specified above is based on the sensor’s performance in conditions that represent average temperatures found in North America. The detection range of the sensor will vary with changing ambient temperatures. This fixture may be mounted on a wall or an eave. It may be mounted onto a standard recessed outlet box or a wet location / outdoor outlet box.
- Page 4 electrical shock. MAIN CIRCUIT BREAKER OR FUSE WIRING THE LIGHT CONTROL Fixture is pre-wired for quick and easy installation for both professionals and do-it-yourself alike: DO NOT REMOVE ANY CRIPMP CONNECTORS PREINSTALLED!! ONLY WHITE, BLACK AND GREEN WIRES WILL NEED TO BE ATTACHED TO INCOMING LINES!! 1.
- Page 5 8. Wiring portion is now complete, so you can install bulbs. Again, double check wall switch is in off position and power is shut off at breaker. OPERATION Activate the photocell and allow the motion detector to Test Mode function in daylight for time setting. Auto Mode Turn knob from 30 seconds to 10 minutes as needed.
- Page 6 SPECIFICATIONS Sensor Range Up to 70 ft.(21m) Sensing Angle 180 degree + Downward detection Power Consumption 4 watts maximum(control module only) Power Requirement 110/120 volts 60 Hz Load Rating 500 watts maximum (Incandescent only) Operating Modes TEST, AUTO, MANUAL, and Temperary ON Mode Delay Control 30 seconds to 10 minutes (approximately) LED Indicator...
- Page 7 4. Aim motion detector head lower, away from moving busy areas such as sidewalks and streets. Motion Detector comes on randomly, or blinks in test mode. 1. Move floodlights away from motion detector head, or use lower wattage lamps. 2. Aim motion detector head lower. 3.
