Summary of Contents for Pascal CTR

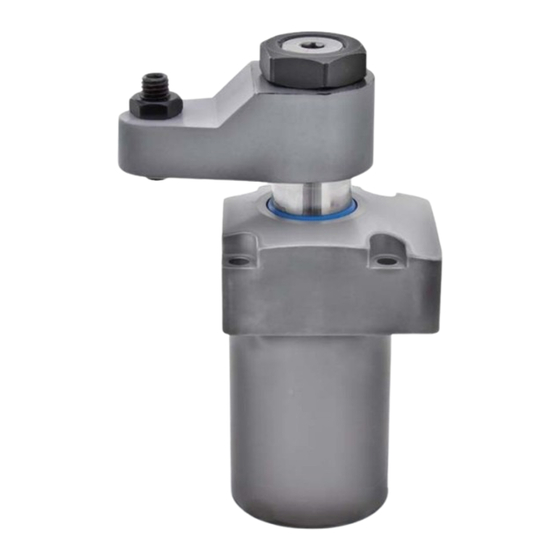

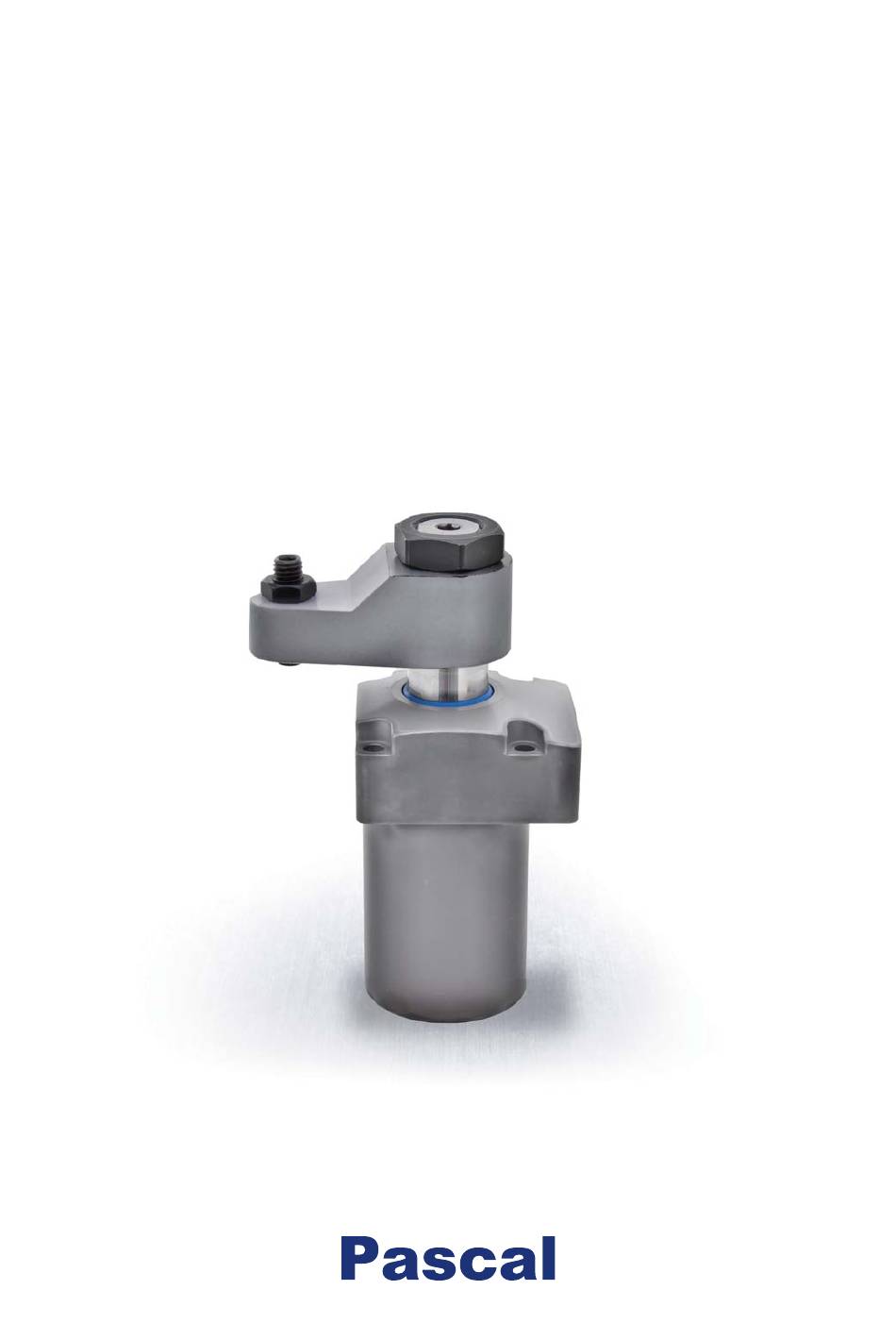

- Page 1 Swivel clamp model Single acting 7MPa w w w. p a s c a l e n g . c o . j p...
- Page 2 model Swivel clamp Single acting 7MPa Horizontal swivel action ① Unclamp ② 90° horizontal swivel ③ Clamp Piston Hydraulic Hydraulic pressure pressure Ball retainer Ball screw nut Clamp rod Rod stroke guide Nut stroke guide Return spring Rod swivel guide Ball screw nut goes down by piston's stroke along nut stroke guide. Clamp rod horizontally swivels 90° along rod swivel guide. When ...
-
Page 3: Specifications
Recommended tightening torque of mounting screws N·m Recommended tightening torque of nut N·m Working pressure range：2.5 〜 7 MPa Proof pressure：10.5 MPa Operating temperature：0 〜 70℃ Fluid used：General mineral based hydraulic oil (ISO-VG32 equivalent) ＊1 : This is value for central position of clamp stroke. ＊2 : Clamping force at time standard clamp arm is mounted. (Clamping force varies depending on clamp arm length. Refer to performance table for details.) ＊3 : Care must be taken when you horizontally mount a clamp with large clamp arm on. ＊4 : Care must be taken when numerous clamps are used or when hydraulic piping is long. ＊5：ISO R898 class 12.9 Seals are resistant to chlorine-based cutting fluid. (not thermal resistant specification) Model designation CTR ① ② ③ (Example：CTR0.6S-R) ① Size ② Mounting and piping types ③ Swivel direction (when clamping) S : Piping mounting L : Counter-clockwise ‒ G : Manifold mounting R : Clockwise... -
Page 4: Performance Table
F ： Clamping force P ： Hydraulic pressure LH ： Clamp arm length CTR1 with clamp arm length (LH) = 50 mm at hydraulic pressure of 7 MPa, Hydraulic Clamping pressure P Clamping force F is calculated by force F (MPa) （7-0.840） /(0.706+0.00244×50)=7.4 kN (kN) Do not use the clamp in the nonusable range. It may cause damage to the cylinder and rod. CTR 0.4 CTR 0.6 Clamping force F = (P-1.34) / (1.47+0.00663×LH) Clamping force F = (P-1.30) / (1.04+0.00387×LH) Clamping force kN Clamping force kN Hydraulic Cylinder Max. arm length Hydraulic Cylinder Max. arm length ... - Page 5 swing time of the clamp arm is greater than the m : Mass (kg) shortest swing time in the graph shown below. （Use flow control valve with cracking pressure of 0.05 MPa or less. Flow control valve model VCF can not be mounted.） T he cam groove may be damaged in case the swing speed is set at the nonusable range in the graph. CTR 0.4 CTR 0.6 I I Shortest swing time Shortest swing time t = t = calculation formula calculation formula...
- Page 6 Dimensions Mounting details Clamping hydraulic port Y1 Max. øAC Max. øAA □F 4-AB Min. C0.5 Max. Y2 (plug projection depth) Clamp stroke Taper 1/10 4-øX øH O-ring 4-øW 0 øG -0.2 Unclamp Stroke end Hex. nut for arm mount H ex. nut for arm mount is included. Clamping hydraulic port C lamp arm, and mounting screws are not included. T his diagram represents external contour of CTR □ G. CTR□S：O-ring and hex socket plug are not included.
- Page 7 model Swivel clamp Single acting 7MPa CTR0.4 CTR0.6 CTR1 CTR1.6 Model A B C 37.5 D E 28.5 F ø G 22.4 35.5 ø H J K 40.5 L 11.5 M N P 12.5 12.5 R1 R2 22.5 R3 30.5 S (nut width across flats) T (hex. socket) U M18×1.5 M20×1.5 M24×1.5 M30×1.5...
- Page 8 model Swivel clamp Single acting 7MPa Model designation Taper sleeve CTH -GS (Example : CTH0.6-GS) ① ① Size øHB GS : Taper sleeve Taper 1/10 øHA CTH0.4-GS CTH0.6-GS CTH1-GS CTH1.6-GS Model ø HA 22.4 35.5 ø HB HC Clamp arm details Not using taper sleeve Using taper sleeve R0.4 ( øB ) øG Taper 1/10 øA øF H8 CTR0.4 CTR0.6 CTR1 CTR1.6 Clamp models...
-
Page 9: Caution In Use
A flat saddle type of gear puller should be piston rod to hold it and tighten locknut with a wrench. used when removing an arm not to convey any rotating force to the piston rod. Clamping position 0.5° ± 90° ±3° Unclamping position 5° Structurally, model CTR has a backrush of 5° at unclamping position. When swivel speed is fast or inertia of clamp arm is large, clamp arm may rotate as much as this backrush. Install clamp arm by setting clamping position always at first. - Page 10 Itami, Hyogo, Japan 664-8502 TEL. 072-777-3333 FAX. 072-777-3520 CERTIFICATE OF APPROVAL ISO9001 PA-576E-3 CLS-11E-6 2018. 09 2018. 09 Specifications are subject to change without prior notice.
