- Page 2 INTERNAL CONTROLS & FEATURES Relay Bypass Switching - XW-1 uses a relay switch for true bypass switching. Input Gain - Controls wah input gain - by turning clockwise it adds up to +6dB of Wah SAMPLE SETTINGS Boost. Input gain trimmer is only active when the #2 dip switch is activated. INTERNAL DIP SWITCHES - see below for detail DEFAULT SETTINGS TOE DOWN RANGE:...
- Page 3 EXTERNAL CONTROLS & FEATURES BIAS CONTROL – Turning up the bias control will lead the XW-1 to having slightly more output & firm up bass frequencies along with a more pronounced wah through the sweep. A cold bias is common with vintage wah pedals for a very clear voice that is more transparent in tone and smoother in operation.
- Page 4 ADJUSTABLE RUBBER STOPPER – Located on the backside bo om of the treadle this rubber bumper can be shimmed to adjust the travel range of the pedal. ADJUSTABLE PEDAL TORSION – Fully-adjustable rocker pedal torsion by adjusting Hex nut on the treadle. LED INDICATOR –...

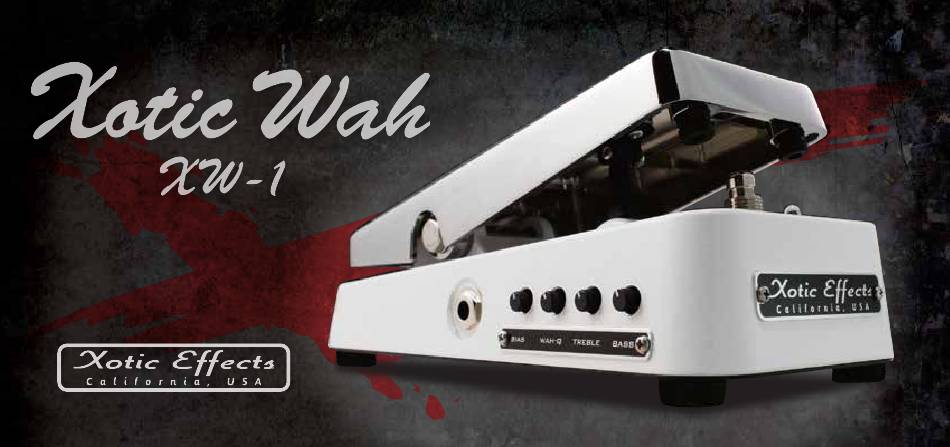

- Page 5 Xotic Wah XW-1 is modeled based on the Holy Grail wah, 1967-1968 Italian-built Clyde McCoy Wahs. With the Xotic XW-1 you don’t get one or three sounds in one pedal, you get unlimited sounds with unique controls that shape and contour your sound the way you hear it! The adjustability and flexibility of the XW-1 makes this one...
- Page 6 This is important to avoid unnecessary custom duties. Please contact us via online form below prior to returning the unit to us for repair. h p://main.xotic.us/contacts XOTIC EFFECTS USA 14920 Calvert Street, Van Nuys, CA 91411 USA h p://www.xoticeffects.com email: support@xotic.us...
