Summary of Contents for Embassy HOME EL1

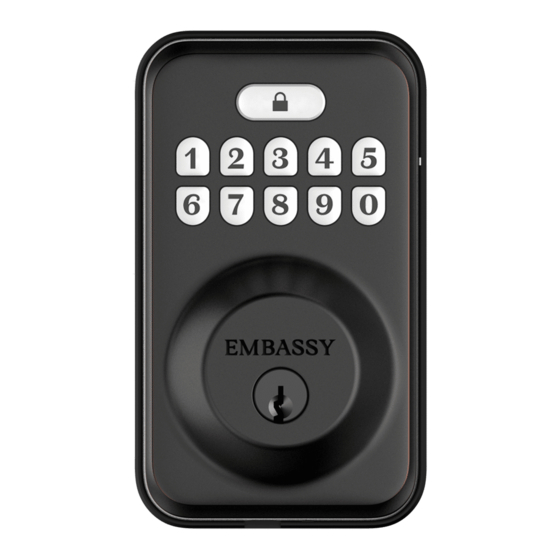

- Page 1 User’s Manual Everything you need to know to install, program, and use your EMBASSY HOME Electronic Door Lock EL1 ® ™...
- Page 2 Documentation Tools You’ll Need Additional Tools Required for New Door Installations User Manual Template for Boring (included) Phillips screwdriver (#2) Tips for Use with Kids & Recording Codes Warranty (requires registration) 4 AA batteries (included) 2 " (54mm) Hole saw More for the EL1 at EmbassyHardware.com/EL1 1"...
- Page 3 Read This First x Failure to follow these instructions could result in damage to the product and will void the manufacturer’s warranty. x Accurate alignment during your door prep is critical for proper functioning and security of this product. This will ensure smooth functioning and prevent both performance degradation and reduced security.
-
Page 4: Table Of Contents
Table of Contents Installation Guide ......................................3 Parts Identification .....................................4 Specifications .....................................5 Door Preparation for Installation ..............................6 Door Preparation for Installation ..............................7 Installing your Embassy EL1 Electronic Door Lock ....................... 8-13 How to Use Your EMBASSY HOME Electronic Door Lock ......................14-15 ® ™... - Page 5 Code Concealment ..................................20 Silent Mode ......................................20 Splash Proof .....................................20 Low Battery Indicator ..................................20 Antimicrobial Coating ..................................21 Reset to Factory Default .................................21 Programming Instructions ...................................22 How to Enter Programming Mode ...............................22 How to Change the Master Code ..............................23 How to Delete a User Code ................................23 How to Add a User Code................................23 How to Mute or Unmute Keypad Beeping ..........................23 How to Set Auto Lock or Manual Lock Mode ..........................24...
-
Page 6: Installation Guide
7/8" (23mm) Latch Screws 1-1/2" (38mm) Strike Plate Screws Door Frame Strike Plate EL1 Electronic Interior Mounting Plate 2-3/8" (60mm) Through Bolt Mounting Screws Door Lock Interior Assembly Battery Cover Installation Guide Interior Assembly Screws OPTIONAL Round Faceplate EMBASSY® HOME™ EL1... -
Page 7: Parts Identification
Parts Identification Installation Guide... -
Page 8: Specifications
(H) 5-1/8" (130mm) x (W) 3" (76mm) x (D) 1-3/16"(30mm) Deadbolt Interior Assembly (H) 5-9/16" (142mm) x (W) 2-3/4" (70mm) x (D) 1-3/4" (44mm) Batteries (included) AA Alkaline battery x4 (Operation voltage: 4.6~4.0V) Lasts up to one year (10 unlock/lock cycles per day) EMBASSY® HOME™ EL1... -
Page 9: Door Preparation For Installation
Door Preparation for Installation 2-1/8 (54mm)" For doors which have pre-existing deadbolt installed. A Ensure that bore is 2-1/8" (54mm) wide. DOOR B Confirm which face plate shape EDGE is required for your door. No change C (Optional) If necessary, change needed faceplate to Round Faceplate (part DOOR... -
Page 10: Door Preparation For Installation
2-3/4" away from the edge of the door (See drawing B) you can adjust the deadbolt by turning the boltcase and pulling it out to extend to the 2-3/4" (70mm) backset position. φ2-3/4" φ2-3/4" (See pictures 1 and 2) (70mm) (70mm) EMBASSY® HOME™ EL1... -
Page 11: Installing Your Embassy El1 Electronic Door Lock
Installing your Embassy EL1 Electronic Door Lock DEADBOLT 1 Install Deadbolt into edge of door. IMPORTANT Make sure that the arrow at the tail end is pointing upwards. 2 Use a Phillips Screwdriver to test if deadbolt 3 Install strike DOOR functions smoothly. - Page 12 Installing your Embassy EL1 Electronic Door Lock 4 Make sure the bolt is in the retracted (unlocked) position. NOTE: The bolt must be in the retracted (unlocked) position before proceeding to the next step. 6 Position the interior mounting 5 Hold the exterior assembly...
- Page 13 Installing your Embassy EL1 Electronic Door Lock Board Connector Cable Connector 7 Make sure that exterior assembly 8 Attach cable assembly to the interior is vertically aligned. Secure both assembly by lining up notches on top assemblies using 1/4" x 2-3/8"...
- Page 14 Installing your Embassy EL1 Electronic Door Lock 10 Secure the interior assembly onto the mounting plate with the 3 Interior Assembly Screws (part NOTE: Before installing the batteries, test lock by using the Manual Over-ride Key and Interior Thumbturn. If the...
- Page 15 Installing your Embassy EL1 Electronic Door Lock 12 Activate the “automatic handing process” of the deadbolt. A Use a paper clip or other small, pointed tool to depress the Reset button. B While holding down the Reset button, insert the fourth battery in battery compartment.
- Page 16 Installing your Embassy EL1 Electronic Door Lock 13 Install battery cover Congratulations! by slipping it into place. You have successfully Ensure that it is firmly installed your EMBASSY inserted into the slots. EL1 Electronic Door Lock. You are now ready to proceed to the Programming steps.
-
Page 17: How To Use Your Embassy Home Electronic Door Lock
How to Use Your EMBASSY ® HOME Electronic Door Lock ™ battery cover lock button keypad key override thumb turn INSIDE OF OUTSIDE DOOR OF DOOR User's Manual // How to Use Your Electronic Door Lock... - Page 18 How to Use Your EMBASSY ® HOME Electronic Door Lock ™ How to UNLOCK the Door How to LOCK the Door How to Perform Auto-Handing for Your Lock From outside, use any From outside, automatically of the following: or manually.
-
Page 19: How To Reset To Factory Default Settings
Keep holding the reset button for 5 more seconds until you hear a long beeping sound. The beep indicates you have successfully reset your EMBASSY door lock to factory default settings. ® CAUTION Performing the reset operation will delete all user settings and all codes. -
Page 20: Codes Overview
(page 16). User Codes (4-10 digits): You may program up to 20 unique User Existing Code Rule Codes for your EMBASSY lock. Use ® the Master Code to create or delete User Codes at any time (page 23-24) . -
Page 21: Features List
One of the most common ways that burglars Programming Instructions (page 22-24). enter a home is through unlocked doors. With the Auto Lock Mode on your new EMBASSY ® X Master Code door lock, misplaced keys and forgetting to lock There is only one Master Code for your the door are things of the past. -
Page 22: Manual Lock Mode
How It Works: Before leaving your home for an extended time, Your EMBASSY door lock prevents intruders ® activate Vacation Mode on your EMBASSY door lock. In Vacation ® Mode, only the Master Code will work on the keypad; all User from using what security experts call a “brute... -
Page 23: One-Time User Code
4 AA batteries. How It Works: Random numbers can be entered before This is based on 10 lock-and-unlock cycles and/or after a valid User Code. Your EMBASSY door lock ® will still recognize the valid code and unlock your door. In per day. -
Page 24: Antimicrobial Coating
X Reset to Factory Default Silent Mode Disabled In some situations, you may wish to wipe all the codes and settings from your EMBASSY ® door lock. Or, you may need to re-trigger the automatic handing of the lock. For either of these situations, you will need to perform a full reset of your lock (page 16). -
Page 25: Programming Instructions
Factory-preset Master Code must be changed Use the Programming Instructions to before any other programming can be done. enable, disable, or adjust the different settings for your EMBASSY door lock. ® (Factory Preset to 1-2-3-4-5-6-7-8) How to Enter Programming Mode... -
Page 26: How To Change The Master Code
We recommend that you write down all your CAUTION: For your security, the Master Code must be changed codes and store them in a safe place. before you program other settings on your EMBASSY door lock. ® How to Mute/Unmute Keypad Beeping... -
Page 27: How To Set Auto Lock Or Manual Lock Mode
How to Set Auto Lock or How to Set a One-Time Code Manual Lock Mode Enter Programming Mode (page 22) Enter Programming Mode (page 22) Press button Press button Enter One-Time Code (4-10 digits) followed by the Lock button. To enable Auto Lock Mode: Press (Default delay is 30 seconds.) Enter One-Time Code again, followed Timing is adjustable. -
Page 28: Free 'Lost Key' Service
Lost Key Service for this EMBASSY HOME electronic ® ™ door lock. Register your EMBASSY ® door lock’s physical key on our website. If yours gets lost, we’ll Thank you for choosing EMBASSY ® make you a new one for free!
