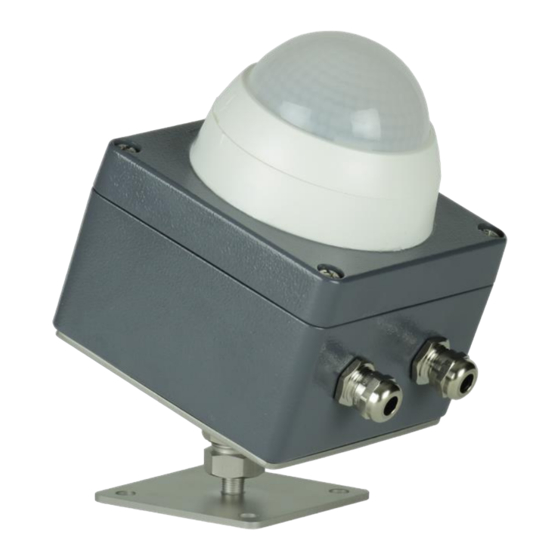

- Page 1 User Manual Explosion-safe occupancy sensor Type series AR-024 II 3 G Ex ec mc IIC T6 Gc II 3 D Ex mc tc IIIC T80ºC Dc...
- Page 2 If these instructions are not followed, the explosion safety of the equipment cannot be guaranteed. The equipment could then endanger the life of the user and could cause the ignition of an explosive atmosphere. Consequently, Artidor as the manufacturer will waive any responsibility.
- Page 3 “encapsulation”, “molding” and “protected by enclosure”. The Artidor AR-024 occupancy sensor is certified in accordance with European Directive 2014/34/EU (ATEX 114) for use in gas or dust hazardous areas and is CE marked.
- Page 4 Application The explosion-safe AR-024 occupancy sensor has been designed for and is suitable for use in hazardous classified areas due to flammable gases, vapors, mist, fibers and dust. Because it is explosion-safe and certified on the basis of...
- Page 5 TF & Serial No.: AS123456 -20 °C < Ta < +50 °C ARTIDOR Explosion Safety B.V. Emopad 38, 5663 PB Geldrop, The Netherlands, www.artidor.com Installation instructions Installation of explosion-safe equipment such as this product must be carried out by personnel specially trained and qualified to do this, following the relevant requirements of the installation standard EN 60079-14.
- Page 6 Troubleshooting The functional indicators in the case of the ARTIDOR AR-024 (red and green LED‘s) have several functions. Red and green LED indicating self-checking mode (over a period of 60 seconds following mains‘-supply lock-on) ...
- Page 7 Maintenance For the maintenance of the AR-024 occupancy sensor the requirements as stated in EN 60079-17 apply. If the occupancy sensor or the connection cable is no longer in good condition, very dirty or damaged, it must be repaired or cleaned immediately.
- Page 8 This document is subject to change without notice. User manual explosion-safe AR-024 occupancy sensor Issue April 2020 8 / 8...
