Model Number:
HC100
CAUTION:
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS.
Avanti has a policy of continuous improvement on its products and reserves the right to change materials and
specifications without notice.

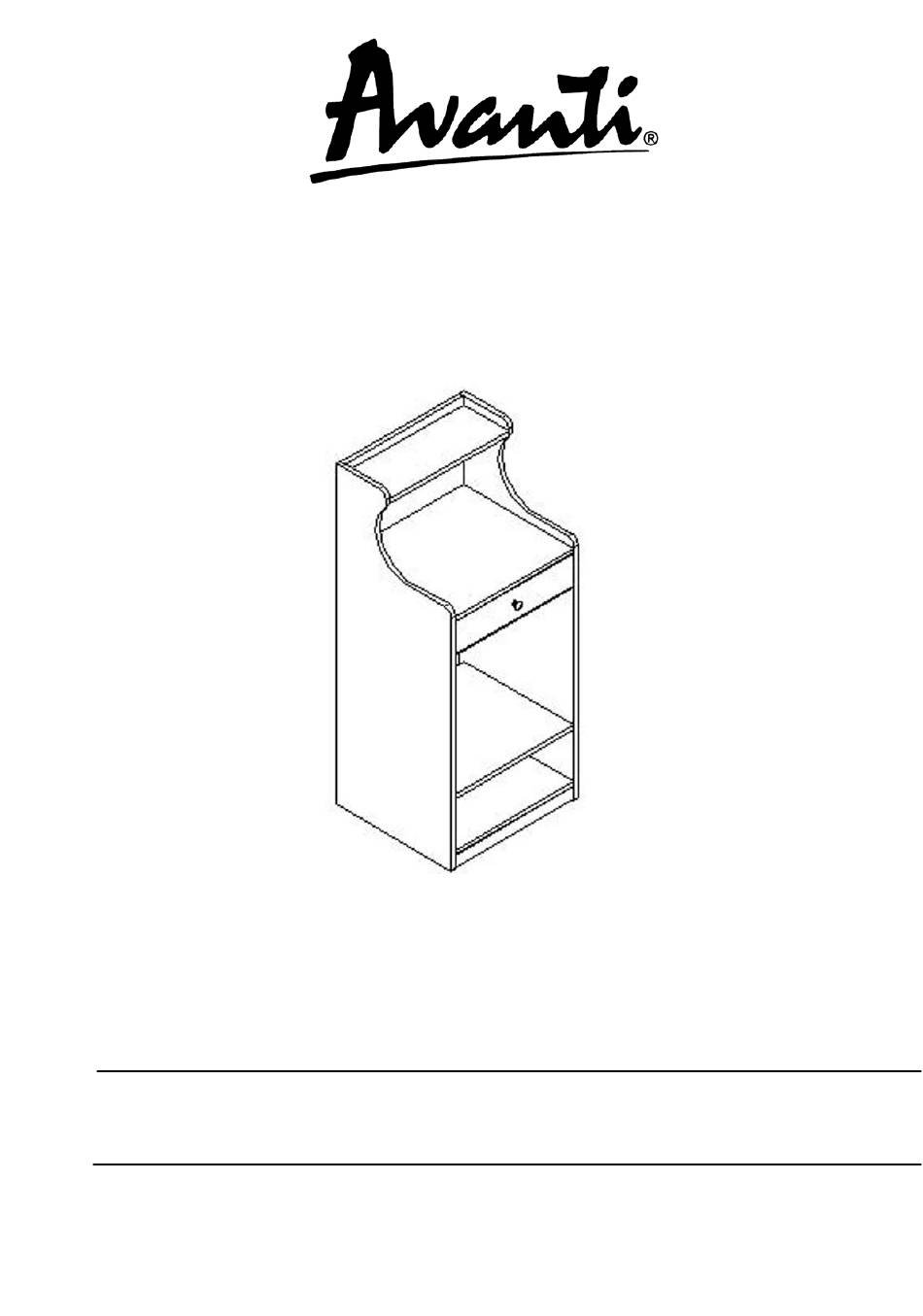

INSTALLATION MANUAL
Hospitality Cabinet
Avanti Products
P.O. Box 520604 - Miami, Florida 33152
www.avantiproducts.com
1
Advertisement
Summary of Contents for Avanti HC100
- Page 1 CAUTION: BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS. Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice. Avanti Products P.O. Box 520604 - Miami, Florida 33152...
- Page 2 • Thank you for purchasing our product, carefully read and follow all assembly instructions before assembling this item. • Please make sure that you have all the parts and hardware as indicated before beginning the assembly of this item. • Use the hardware illustrations to determine correct piece and size. •...
- Page 3 Parts: Part # Part Description Qty Included Left Side Panel Back Panel – Microwave Section Back Panel – Refrigerator Section Bottom Panel – Refrigerator Section Front Fascia Top Shelf Panel Bottom Panel – Microwave Section Door – Dry Storage Section Bottom Panel –...
- Page 4 Assembly Hardware Part No. Illustration / Description Qty included 22 Pieces Anchor Bolt and Lock 32 Pieces Wood Dowel 4 Pieces Shelf Pin 2 Pieces Door Hinge 12 Pieces ST3.5 X 15 – Screw 1 Piece Door Pull - Knob 1 Piece ST4 x 20 - Screw 1 Piece...
- Page 5 Tools required to assembly this unit: Be sure that you have the following at hand prior to beginning the assembly: When installing the assembly hardware be sure that you insert all screws, anchor bolts, and dowels straight and are flush to the surface of the unit. Over tightening of the hardware will result in damage to the finish and a poor fit.
- Page 6 STEP 1: As shown in the illustration (fig. 1) attach the (2) back panels (parts 2 & 3) to the left side panel. Part Description Left Side Panel Back Panel – Microwave Section Back Panel – Refrigerator Section Fig. 1 Assembly Parts Used Part A: Part B:...
- Page 7 STEP 2: As shown in the illustration (fig. 2) attach the (4) horizontal panels (parts 4, 5, 6, 7, and 9) to the left side panel. As well as attach the magnetic (H1) portion to the inside area of the storage compartment. Part Description Bottom Panel –...
- Page 8 STEP 3: As shown in the illustration (fig. 3) attach the right side panel (part 11) to the panels installed in steps 1 and 2. Part Description Right Side Panel Fig. 3 Assembly Parts Used Part A: Part B: STEP 4: Once you have all of the wooden panels assembled and with a good fit, tighten securely all anchor locks.
- Page 9 STEP 5: As shown in the illustration (fig. 5) install the front storage door (part 8)and place the refrigerator support shelf (part 10) in position. Install the metal catch (H2) portion of the magnetic door catch to the storage door as shown below: Part Description Door –...
-
Page 11: Registration Information
Registration Information Thank you for purchasing this fine Avanti product. Please fill out this card and return it within 100 days of purchase and receive these important benefits: Protect your product: We will keep the model number and date of purchase of your new Avanti product on file to help you refer to this information in the event of an insurance claim such as fire or theft. - Page 12 PRINTED IN CHINA...
