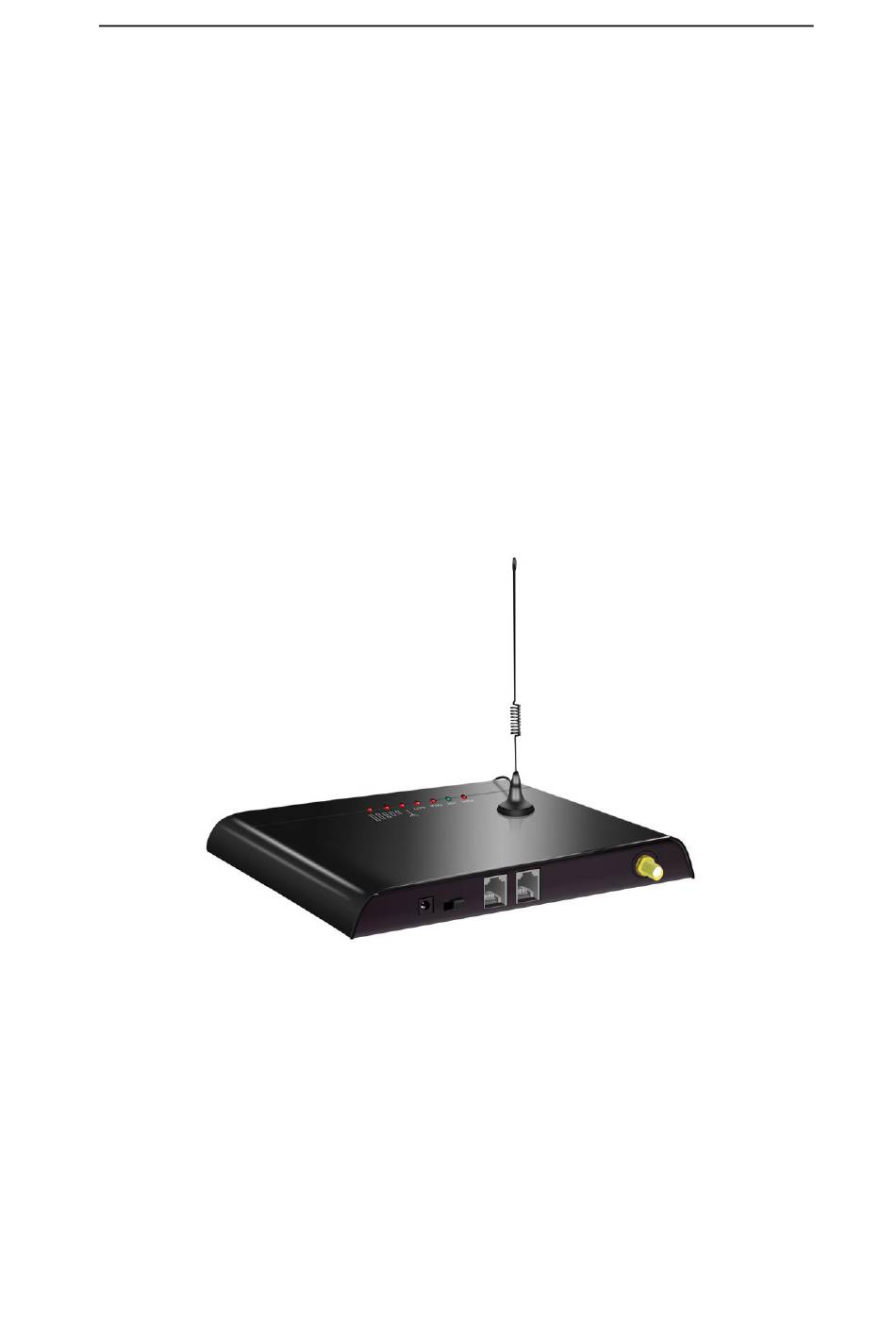

- Page 1 3G FWT ETS-8848 User's Manual Version 2.0 (Fixed Wireless Terminal) 3G FWT ETS-8848 User's Manual 3G WCDMA FWT ETS-8848 Ver 2.0-2020...
-
Page 2: 1, General Description
Version 2.0 1, General Description 3G WCDMA FWT ETS-8848 is a WCDMA to Analog Converter, the device can produce a FXS line to allow a regular phone to be connected and used just like a local landline(PSTN) except your calls will go out from the 3G network. This device can both receive and make calls. - Page 3 3G FWT ETS-8848 User's Manual Version 2.0 Material ABS (Acrylonitrile Butadiene Styrene) Excluding Dimension 170mm×118mm×30mm antenna Weight 250g Weight of Main unit Power Switch Rocker switch Power Socket 12V DC input/5V DC input Phone 2 RJ-11 ports RJ11 interface Antenna...
- Page 4 3G FWT ETS-8848 User's Manual Version 2.0 2) It can connect with ordinary telephone set, PBX , VOIP Gateway, Billing meter etc. 3) Employ industrial module to make 4) Simple to install and easy to maintain 5) Steady module and reliable design ensures good performance...
- Page 5 3G FWT ETS-8848 User's Manual Version 2.0 Phone interface: supply RJ-11 Phone Interface Hanging voltage: 45V Picking off voltage: 30mA / 41mA Dialing tone Frequency: 450Hz Antenna interface: Antenna amplifying>2.5db Sensitivity:<-104DBM Transmitting power<3W Color: White /Black (optional) AC-Adapter interface: Input: AC 110~240VAC 50~60Hz Output: DC 12V 1A.(Quectel &...
- Page 6 3G FWT ETS-8848 User's Manual Version 2.0 Antenna 1 piece Magnetic based Antenna with 3m cable User's Manual 1 piece English G.W: 0.75kg per unit. 20pcs/Carton, 16kg /Carton Carton Box Size: 55cmX34.5cmX32.5cm 6,Installation And Connection The Condition for Installation The terminal asks for 110- 220V AV power supply. It must be installed in the area where the 3G network can cover.
- Page 7 3G FWT ETS-8848 User's Manual Version 2.0 between telephone and terminal and affect voice quality. The distance between telephone and terminal is 1.5m at least. 2) The installation for connecting to billing device for metering If the users demand to register cost during calls, billing device can be connected between terminal and ordinary telephone.
- Page 8 3G FWT ETS-8848 User's Manual Version 2.0 Suppose a VoIP call originates from US, which was transferred from US Server to China Server on VoIP, finally the call will be terminated from internet to 3G network and to be sent out to the destination answer side.
- Page 9 *#01#30# , 01--command， 30--time， Max 9.9 seconds， Min 0.5 seconds, default setting is 3 seconds. *If you use 4G LTE FWT ETS-8848 for connecting to VoIP gateway, you can set dial interval as 0.5 second, it can make PDD<5 sec (Method: *#01#05#);...
- Page 10 3G FWT ETS-8848 User's Manual Version 2.0 01 – CLIR allowed 02 – CLIR prohibited Notice: This Setting must need carrier’s support. 8) Bar incoming call Setting *#14#00# 14--command， 00--value， 00--no barring, 01--set barring default setting --00 9)FSK setting (optional) (should confirm before order)
-
Page 11: Network Lock
3G FWT ETS-8848 User's Manual Version 2.0 2)Network Lock 1,Set to open Network lock function *#10#01234# 10-command, 01234-password 2,Set to close Network lock function *#11#01234# 11-command,01234-password 3,Set the Network codes *#12#1*46003*46003# 12-command,1--No. Of IMSI, 46003--the IMSI code for China Telecom *#12#2*46000*46000# 12-command, 2--No. -
Page 12: Warranty Card
3G FWT ETS-8848 User's Manual Version 2.0 Warranty Card Please fill in the blanks carefully, and keep it properly as the voucher for warranty. Type of Equipment 3G WCDMA FWT ETS-8848 User’s name Contact with: Contact Tel.no. Address Date of Ex-works...
