Viega ProRadiant SYSTEMS Basic Digital Setpoint Control II Product Instructions

Product Instructions
Basic Digital Setpoint Control II
Applications
The Viega Basic Digital Setpoint Control II is a
general purpose temperature control with a wide
range of applications in the HVAC industry. This
control provides two isolated SPDT relay contacts.
The two relays are controlled by a watertight sensor,
included with the Basic Digital Setpoint Control.
This control is commonly used as basic heating
and/ or cooling system control for commercial
and residential slab application.
Features
• Setpoint Control for Heating and Cooling
• Simple installation and programming
• Large digital LCD display
• Reliable, economical
• Two relay outputs with individual
Setpoint capability
• Watertight Sensor included
Specifi cations

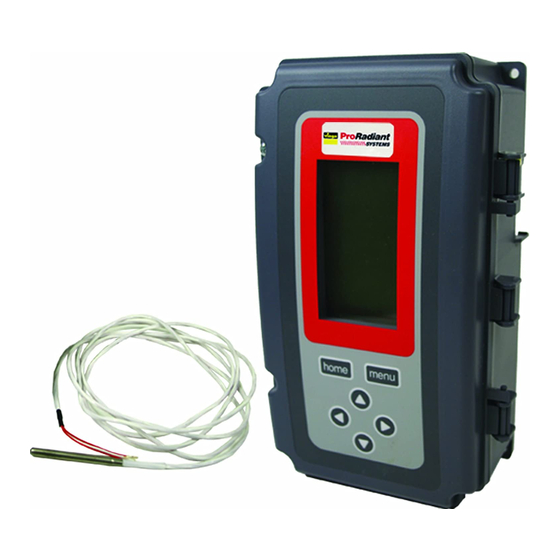

Digital Setpoint Control II
with watertight sensor (17029)
Watertight Sensor (17031)
Digital Setpoint Control II
Input: 24V, 120V, 240V
Output: 2 SPDT dry contacts,
1/2 hp @ 120 VAC
9.8 FLA, 58.8 LRA
Sensor: 6' Resistor, extendable up 100'
Setpoint: -40 - 248°F range
Differential: 1 - 150°F range
Accuracy: +/- 1°F
Environment: -40 - 140°F, 5 - 95% rH,
non-condensing
Power draw: 8 VA
Dimensions: 4.91 x 8.16 x 2.37 in.
