Brookstone BIG BLUE GO User Manual

Compact wireless speaker
Hide thumbs Also See for BIG BLUE GO:

Advertisement

Table of Contents

B I G B L U E
G O
C O M P A C T W I R E L E S S S P E A K E R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BIG BLUE GO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Brookstone BIG BLUE GO

Summary of Contents for Brookstone BIG BLUE GO

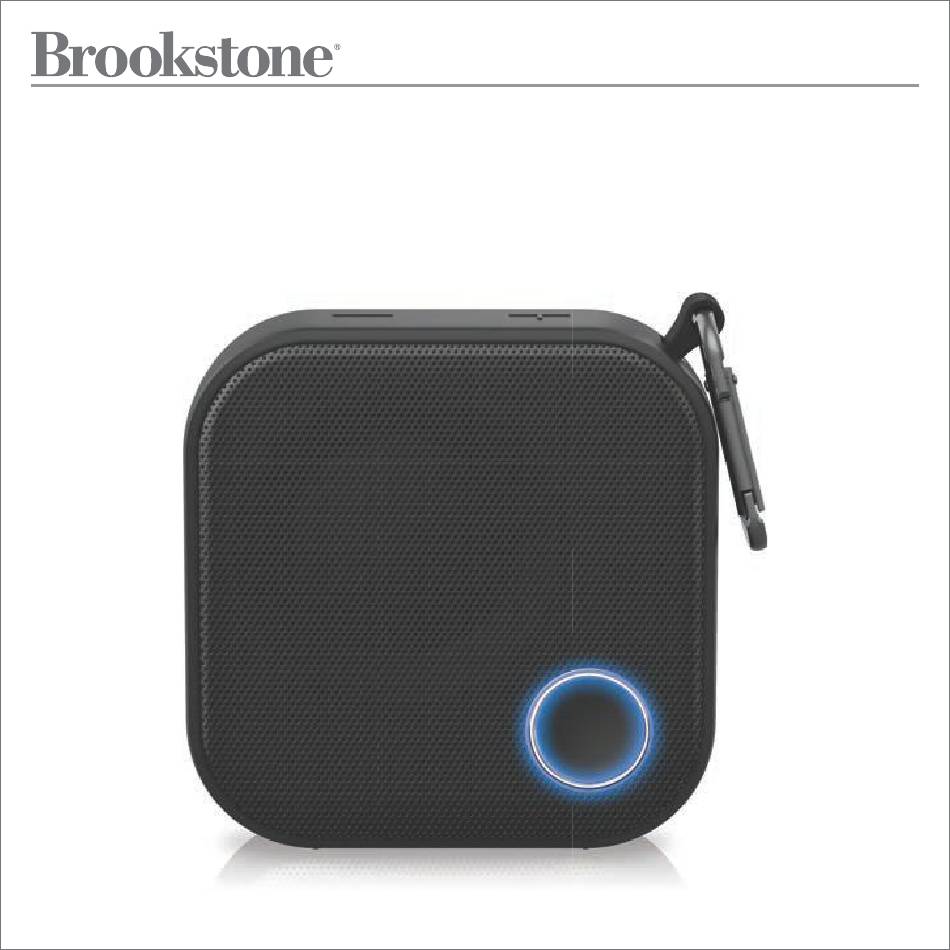

  • Page 1 B I G B L U E C O M P A C T W I R E L E S S S P E A K E R...
  • Page 2 IN THE BOX USB Type-C Cable Wireless Speaker B I G B L U E C O M P A C T W I R E L E S S S P E A K E R Carabiner User Guide...

  • Page 3: Location Of Controls

    LOCATION OF CONTROLS Carabiner – button + button FRONT SIDE BACK LED indicator Power 3.5mm USB Type-C Passive Radiator button audio port port...
  • Page 4 CHARGING Insert the USB Type-C cable into the speaker’ s USB port as shown below and connect the other end to any USB adaptor or charging device. The LED will light up red while charging and turn off when fully charged. USB Type-C Cable Wall outlet USB adaptor...

  • Page 5: Power Button

    POWER BUTTON The Power button is used to power the speaker on or off, play/pause your music, or answer an incoming call. The Power button is touch-controlled. Gently touch it instead of pressing down: Incorrect Correct Don’t push down on Gently touch the Power button the Power button...

  • Page 6: Power On/Off

    POWER ON/OFF Power on Touch and HOLD the Power button for 2 seconds until the speaker powers on. Power o Touch and HOLD the Power button until the blue LED light turns off. Power button LED indicator Note: The speaker will automatically power off after 30 minutes of inactivity.

  • Page 7: Bluetooth Pairing

    BLUETOOTH PAIRING Connecting 1. When the speaker is powered on for the first time or not connected to a device, it will be in pairing mode, and the LED will flash blue. Power button Bluetooth Profile: A2DP V1.3, AVRCP V1.6, HFP V1.7, HSP V1.2...
  • Page 8 2. Open your device’s Bluetooth menu and find BKS350 and select it to pair. Bluetooth DEVICES BKS350 3. Once paired, “Connected” will be heard and the LED will turn solid BLUE.
  • Page 9 Disconnecting Press and HOLD the “+” and “–” buttons for 3 seconds to disconnect the speaker from a device. Once it disconnects, you’ll hear “Disconnected” and it will go into pairing mode. Note: This feature is handy to quickly pair the speaker to a new device.

  • Page 10: Speaker Placement

    SPEAKER PLACEMENT Place the speaker as shown below, on a flat and stable surface. Correct Incorrect Note: The passive radiator produces powerful bass which may cause the speaker to vibrate when playing songs with lots of bass at the speaker’ s highest volume level.

  • Page 11: Audio Control

    AUDIO CONTROL • Touch the Power button to pause or resume audio playback. • Press the + button to increase volume. • Press the – button to decrease volume. • Press and HOLD the + button to skip to the next track. •...

  • Page 12: Phone Calls

    PHONE CALLS • Touch the Power button to answer an incoming phone call or end a call. Power button...
  • Page 13 WATERPROOF RATING IPX7 • This speaker has an ingress protection rating of 7 (IPX7). This means it can be completely submerged in water for up to 30 minutes at a depth of 1 meter. • The protective rubber seal needs to completely cover the speaker’s input panel to protect it from water damage.
  • Page 14 FCC Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modi cations to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
  • Page 15 Rating Label De nitions Direct current symbol. This symbol signi es the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. This symbol signi es and declares that this equipment has battery charging which complies with California CEC and energy e ciency.
  • Page 16 1-Year Limited Warranty Territory: United States/Canada LIMITED WARRANTY TO ORIGINAL CONSUMER This product (including any accessories included in the original packaging) as supplied and distributed new by an authorized retailer is warranted by Southern Telecom, Inc. to the original consumer purchaser against defects in materials and workmanship (“Warranty”) as follows: To obtain warranty service: •...
  • Page 17 The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., used under license. Brookstone® trademark, name and logos are trademarks of BKST Brand Holdings LLC and used under license. Manufactured and Marked by Southern Telecom, Inc. under license.

This manual is also suitable for:

Bks350
