Seconique Nevada Aassembly Instructions
5 drawer narrow chest
Hide thumbs
Also See for Nevada:
- Assembly instructions manual (20 pages) ,
- Assembly instructions manual (14 pages) ,
- Assembly instructions manual (8 pages)
Related Manuals for Seconique Nevada
Summary of Contents for Seconique Nevada

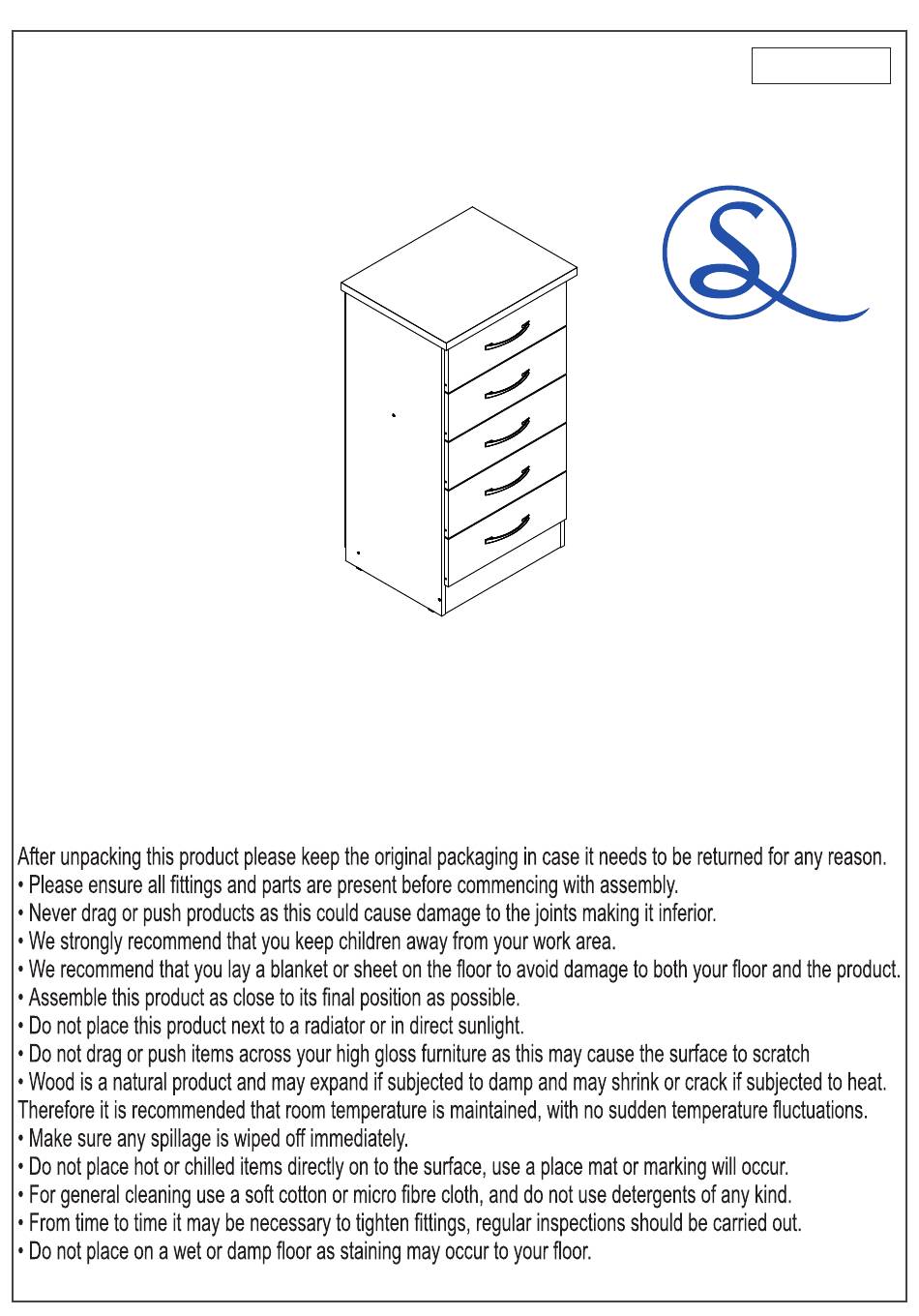

- Page 1 SEC/SH/01/20/CA3 NEVADA 5 DRAWER NARROW CHEST ASSEMBLY INSTRUCTIONS IMPORTANT FOR DOMESTIC USE ONLY PLEASE READ BEFORE YOU CONTINUE FURTHER CARE AND MAINTENANCE PAGE 1...
- Page 2 SEC/SH/01/20/CA3 * Use of power tools to assemble this product will invalidate any claim and damage this product making it unsafe !!! If you wish, after assembly, use a * Please assemble on a clean soft surface to avoid damage. rubber to erase part number "9".
- Page 3 SEC/SH/01/20/CA3 FITTINGS LIST Flat Head Screw Flat Head Screw Flan Head Screw Flat Head Screw Ø6,0 x 10mm (20x) Ø4,0 x 14mm (30x) Ø4,0 x 20mm (10x) Ø4,0 x 50mm (16x) Dowel Ø6,0 x 30mm (56x) Nail 10 x 10 (74x) Cam Nut Ø12mm (10x) Cam Nut Ø15mm (4x) Flan Head Screw...
- Page 4 SEC/SH/01/20/CA3 Pre-Assembly A-Flat Head Screw B-Flat Head Screw E-Dowel L-Cam Bolt (14x) J-Plastic Foot (4x) Ø6,0 x 10mm (20x) Ø4,0 x 14mm (10x) Ø6,0 x 30mm (56x) F-Nail 10 x 10 (4x) O-Drawer Runners (5x) N-Glue Detail 1 Detail 5 Detail 1 Detail 1 Detail 4...
- Page 5 SEC/SH/01/20/CA3 D-Flat Head Screw Ø4,0 x 50mm (6x) N-Glue Detail 6 Detail 1 Detail 1 Detail 6 Detail 6 Detail 6 Detail 6 Detail 1 Detail 6 H-Cam Nut (4x) N-Glue Detail 7 Detail 7 Detail 1 Detail 1 Detail 7 PAGE 5...
- Page 6 SEC/SH/01/20/CA3 P-Back Panel F-Nail 10 x 10 (30x) Strip (1x) Detail 8 Detail 8 D-Flat Head Screw F-Nail 10 x 10 (40x) G-Cam Nut (10x) M-Hole Plugs (10x) N-Glue Ø4,0 x 50mm (10x) 1º 2º Detail 1 Detail 9 Detail 1 Detail 1 Detail 9 3º...
- Page 7 SEC/SH/01/20/CA3 B-Flat Head Screw C-Flan Head Screw O-Drawer R-Handle (5x) Ø4,0 x 14mm (20x) Ø4,0 x 20mm (10x) Runners (5x) 4º 5º FIRST HOLE LAST SECOND HOLE M-Hole Plugs (6x) See the last page Detail 11 Detail 11 PAGE 7...
- Page 8 SEC/SH/01/20/CA3 I-Washer (2x) K-Flan Head Screw Ø3,5 x 30mm (1x) Q-Strap (1x) PAGE 8...
