Summary of Contents for ARB Touring 814205

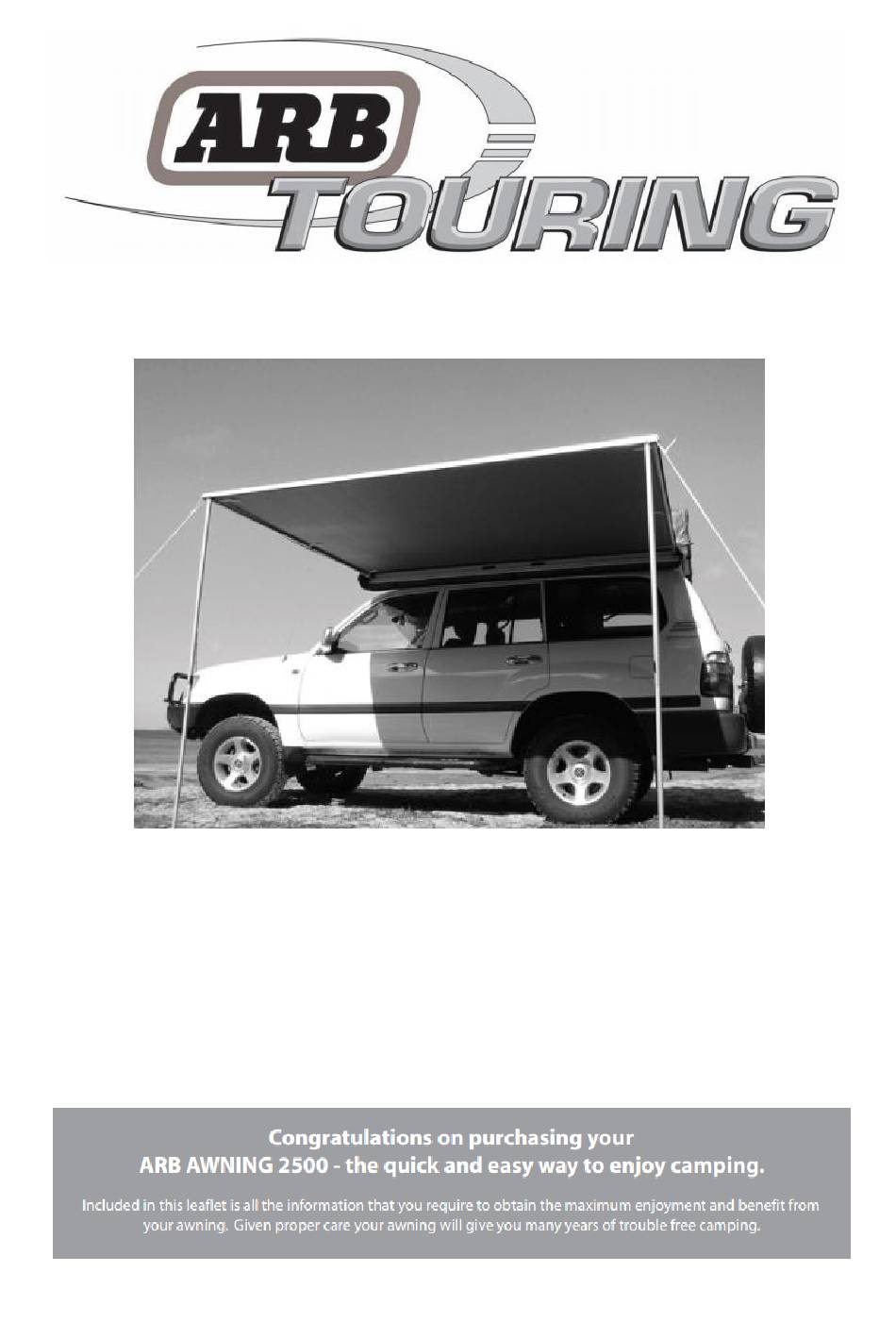

- Page 1 ALL PICTURES ARE FOR ILLUSTRATIVE PURPOSE ONLY AND WILL NOT REFLECT THE END PRODCUT. ALUMINIUM AWNING 2000MM X 2500MM OWNERS MANUAL – PN#814205/814401 OPTIONAL LIGHT UPGRADE KIT...
- Page 2 ALL PICTURES ARE FOR ILLUSTRATIVE PURPOSE ONLY AND WILL NOT REFLECT THE END PRODCUT.
- Page 3 NOTE BRACKETS ARE SOLD SEPARATELY – PLEASE DISCUSS BEST FITTING OPTIONS WITH YOUR ARB REPRESENTATIVES NOTE BRACKETS ARE SOLD SEPERATLEY...
- Page 4 1. Unclip the bungee straps attaching the lid to base of the awning container. The lid will spring up to allow access to the awning canvas ALL PICTURES ARE FOR ILLUSTRATIVE PURPOSE ONLY AND WILL NOT REFLECT THE END PRODCUT.
- Page 5 5. Awning light Installation and Operation ARB awnings fitted with the unique ARB light sleave can accommodate the ARB Awning light – Part No# 814305. Light Installation. 1. Follow item 4 of the above instructions to set your awning up, if it is a windy day please make sure to use the guide ropes included to secure the awning.
- Page 6 Dimmer Function Dimmer brightness + (up) Colour Control (White/Amber/Dual*) Dimmer brightness - (Down) Power On/Standby *Note When running on Dual colour mode, power consumption will be doubled, its recommended not to run in dual colour mode to conserve power. WARRANTY – 2 YEARS FROM DATE OF PURCHASE Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
