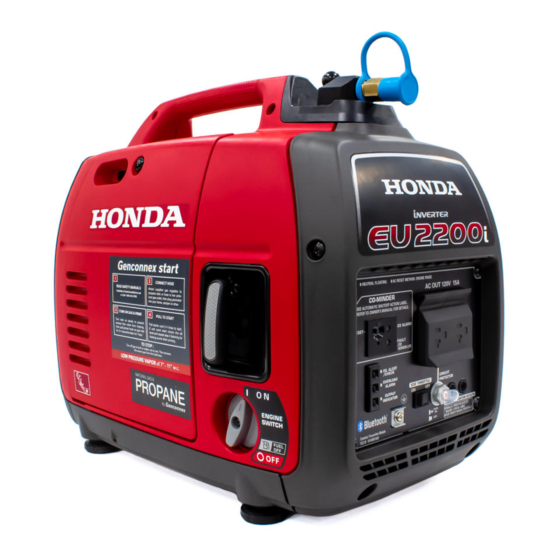

GenConnex EU2200i Propane kit Assembly Instructions

enconnex
35 Pond Park Road, Hingham, MA 02043
1-800-341-0792
Step 1
Dis-assembly
Before tarting: DRAIN OUT ALL GA OLINE FROM TANK AND FLOAT BOWL AND DI PO E OF AFELY
tep 1A - Remove skins
1a-1 Remove choke label
(Propane does not use choke).
1a-7/8 Remove two handle screws.
tep 1B - Remove gas tank & drain lines
1b-2 Remove fuel tank by separating
1b-1 Remove fuel line clamp at
plastic frame at very top and gently lifting
bottom of gasoline tank AFTER
up on tank.
FULLY DRAINING GA OLINE!
tep 1C - Remove air cleaner box
1c-1/2/3/4/5/6 Remove air cleaner unit by first removing outer cover then one inner 8mm hex bolt, vent tube, then two outer 8mm hex nuts then slide off air cleaner assembly.
tep 1D - Remove choke
1d-1/2/3 Remove pressed-in choke plate by pulling outward with pliers (use force),
then turn handle full right then pulling up.
tep 1F - Remove gasoline lines & pump
1f-1/2/3/4/5 Remove gas pump & line to carburetor, engine vent below carburetor, then remove gas lines from plastic holders (leave bracket in place for new fuel line)
and then remove two screws holding pump to frame. Then remove fuel feed tube below pump going two switch. This should free up pump for removal.
tep 1G - Remove carburetor & bolts & ground screw
1g-1/2/3/4 Remove two 8mm long bolts (to be replaced later with longer bolts) holding carburetor to engine by removing two shorter 8mm flange bolts.
Remove ground screw and save..
®
https://genconnexdirect.net/liturature.htm
1a-2 Remove access door. 1a-3 Remove gas cap by
removing cotter snap pin.
1a-9 Remove lower trim (this
side only) by prying off with finger
or flat blade screw driver.
enconnex ®
Copyright 2020 New England Gen-Connect LLC. All rights reserved.
On-Line PDF
=
+
1a-4/5 Unscrew and tilt out front bezel (4 screws).
1a-10/11 Remove lower skins 1a-12 Remove screw near pull handle.
bolts (2 10mm bolts).
1b-3/4 Remove fuel drain & vent tubes (3 tubes).
Engineered to the next level.
®
Genconnex Honda EU2200i
Propane kit
Assembly Instructions
Version 2.03
#1 Phillips dead screw driver
#2 Phillips head screw driver
flat head screw driver
8mm socket
10mm socket
+
3/8" socket
pliers or channel locks
microwave oven or boiling water
5/32" Allen head socket or wrench
1a-6 Remove rear bezel (4 screws).
1a-13 Gently remove skins.
1b-5 Remove 2 fuel tank bottom bumpers.
