Summary of Contents for Coba Nitrox PDU SM-1688
- Page 1 Manual PDU SM-1688 PDU SW-1081 PDU SW-1681 Important Informationen ....................3...
-
Page 2: Table Of Contents
Introduction ......................3 Scope of delivery ....................3 Symbols ......................... 3 Safety ..........................4 Intended use ......................4 2.1.1 Environmental ................... 4 2.1.2 Disposal ....................4 General information ....................4 Danger and protection .................... 4 Product information ......................5 Features ......................... 5 Description ...................... -
Page 3: Introduction
Important Information Introduction Thank you for buying a Coba Nitrox PDU. PDUs are intelligent power distribution units for computers in server racks. They are offering a couple additional features, depending on the model. Please read the following instructions carefully. Scope of delivery... -
Page 4: Safety
Safety Intended use 2.1.1 Environmental This product is only for indoor use and for connection with computers. Don´t use and store it inside humid rooms or near water. Don´t use it close to source of heat. The additional heat could lead to overheating and fire. -
Page 5: Product Information

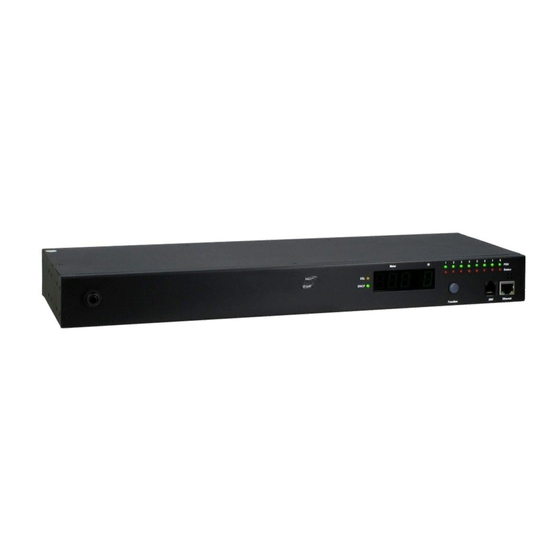

Product information The PDU enables to power-on and –off the connected devices via a TCP/ IP network. Each of the output sockets can be switched separately. You can also read single or total power consumption as well as environmental parameters (with optional sensor), depending model. -
Page 6: Description
Description SM-1688 Vorne M et er PD U St at us D H C P Funct i on EN V Et her net SM-1688 Hinten Fuse, Over Load Protection LED DHCP: Indicates active DHCP LED SSL: No function Display Meter - Indicates Current and IP-Address - PDU identification Function button... - Page 7 SW-1081/ 1681 Vorne Funct i on Et her net D H C P M et er SW-1081/ 1681 Hinten Fuse, Over Load Protection Output LED DHCP: Indicates active DHCP Display Meter - Indicates Current and IP-Address - PDU identification LED socket status Green Connected device Function button Turn-Off Alarm (Over load alarm can´t be turned off)
-
Page 8: Technical Data
Technical data Sockets: 1x Input 230V~ AC, 10A (IEC-60320 C13), 47-63 Hz (only model SW-1081) 1x Input 230V~ AC, 16A (IEC-60320 C20), 47-63 Hz (only model SM-1688/ SW-1681) 8x Output 230V~ AC, 10A (IEC-60320 C13) 1x Ethernet (RJ45) 1x Sensor (RJ11) (only model SM-1688) Network: 10 Mbit/s 10baseT Ethernet (RJ45) Protocol:... -
Page 9: Installation
Installation Temperature – When mounting inside a closed cabinet the temperature inside the cabinet can be higher than outside. Ensure that the temperature is within the specification mentioned in 3.3 Air Flow – Avoid to affect the air flow inside the rack. 1. -
Page 10: The Web Interface
The Web interface Login Enter the IP address in a Web-Browser The user name is „snmp“ The password is „1234“ Information - PDU Displays the total current If a sensor is connected (only SM-1688) also temperature and humidity will be shown. Manual Nitrox PDU SW-xxxx/ SM-xxxx 10 of 23 19.01.2018... - Page 11 SW-1081/ 1681 SM-1688 Manual Nitrox PDU SW-xxxx/ SM-xxxx 11 of 23 19.01.2018...
-
Page 12: Information - System
Information - System Displays the system information like: Model number Firmware version MAC address System name System contact Location Control - Outlet Displays status/ Change of socket status Choose the right output and push the relevant button ON: Push to Turn-On OFF: Push to Turn-Off OFF/ON: Push for Reboot Manual Nitrox PDU SW-xxxx/ SM-xxxx... -
Page 13: Control - Group (Only Sm-1688)
Control – Group (only SM-1688) You can group different outputs to switch them together. Register the outputs as named at Configuration-PDU and separate them by comma. Manual Nitrox PDU SW-xxxx/ SM-xxxx 13 of 23 19.01.2018... -
Page 14: Control - Schedule (Only Sm-1688)
Control – Schedule (only SM-1688) Adjust the time schedule for automatic On/ Off switch. You can also adjust an Off-On Cycle Control – Ping Action (only SM-1688) Ping IP Address and start automatic switch if no response. Manual Nitrox PDU SW-xxxx/ SM-xxxx 14 of 23 19.01.2018... -
Page 15: Configuration - Pdu
Configuration - PDU Nomination of output sockets and adjusting of Power-On delay. Name: Name of output socket ON: Adjusting of Power-On delay, per socket. OFF: Adjusting of Power-Off delay, per socket. Max. delay time is 255 sec. Consider： When the PDU is connected to the electric grid it will start the outputs automatically according the preset data. -
Page 16: Configuration - Threshold
Configuration - Threshold Adjusting Threshold for warning and over load Only SM-1688: - Adjusting Treshold for temperature and humidity - Adjustable per port SW-1081/ 1681 Manual Nitrox PDU SW-xxxx/ SM-xxxx 16 of 23 19.01.2018... -
Page 17: Configuration - User
SM-1688 Configuration – User 5.10 Change of ID and password Default for ID is „snmp“ and for password “1234” Manual Nitrox PDU SW-xxxx/ SM-xxxx 17 of 23 19.01.2018... -
Page 18: Configuration - Network
Configuration – Network 5.11 Network information Configuration – Mail 5.12 Email Notification Setup for Alarm and Warning. Email Server: Mail server name Sender’s Email: Email Address: Recipient email address The email will contain the following information: Output A-H XXXXXXXX X=0 : Off X=1 : On Manual Nitrox PDU SW-xxxx/ SM-xxxx 18 of 23... -
Page 19: Configuration - Snmp
Configuration – SNMP 5.13 Email Notification Setup for Alarm and Warning by SNMP Trap Notification: Recipient IP-Adresse Community: Adjust SNMP area is fixed to “public” Read: Default is “public”, can be changed individually. Write: Manual Nitrox PDU SW-xxxx/ SM-xxxx 19 of 23 19.01.2018... -
Page 20: Configuration - Time
Configuration – Time (only SM-1688) 5.14 Preset of time and time server Using SNMP Manual Nitrox PDU SW-xxxx/ SM-xxxx 20 of 23 19.01.2018... -
Page 21: Using Pdu Utility
The PDU is working with SNMP v1 and v2. The attached CD includes the file PDUMIB.mib for import into your SNMP software in the folder MIB. You can see all parameters when you open the file with a normal text editor. Please look for further instructions into the manual of your SNMP software. -
Page 22: Warranty Terms
Warranty terms Inter-Tech grants 24 months warranty by proper use up from the date of purchase. In case of warranty issue please contact your local dealer or the dealer from which you bought the product. We will grant no warranty by: Missing or damaged warranty seal, Negligent behavior, Improper use,... - Page 23 www.inter-tech.de...
