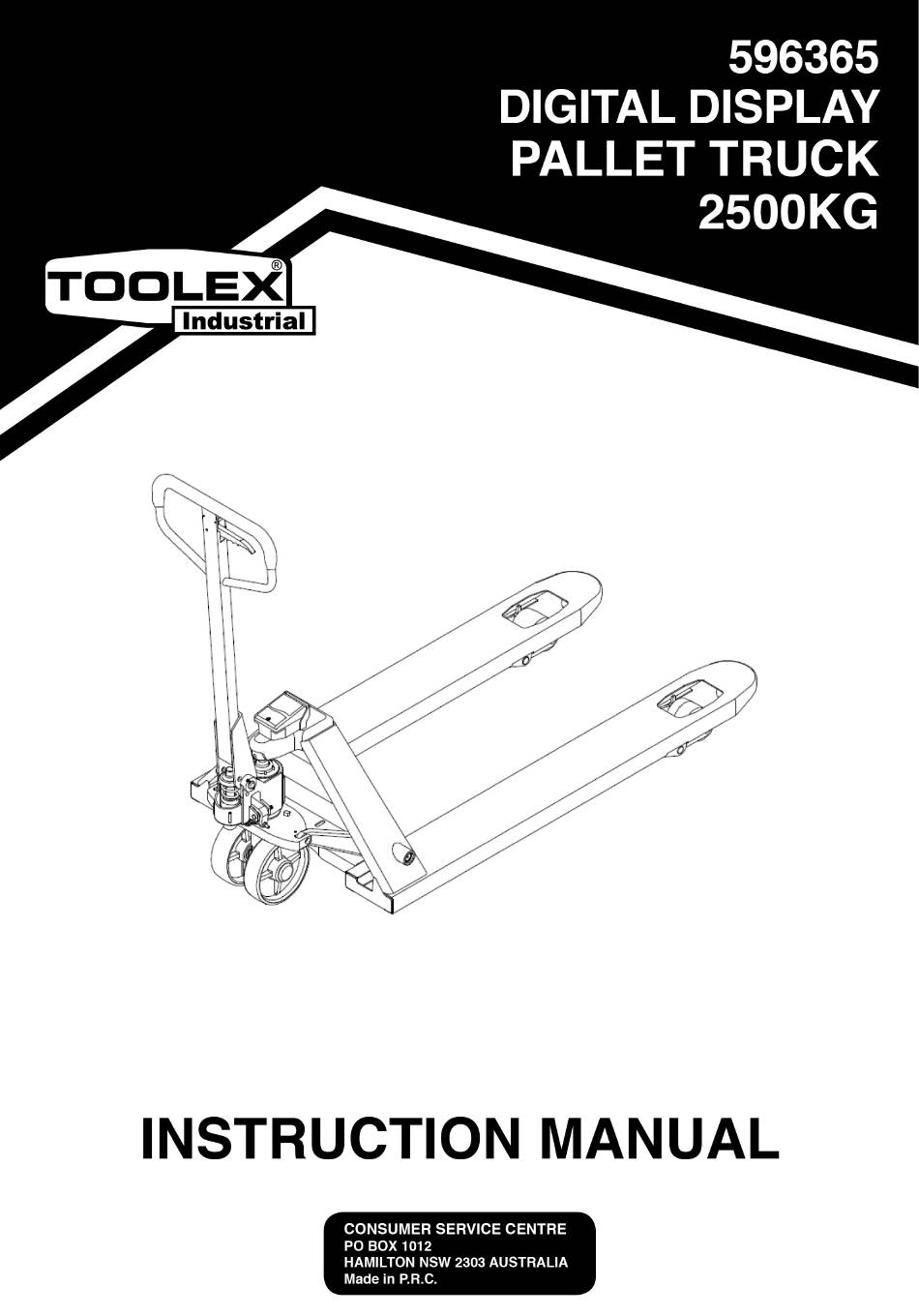

Summary of Contents for Toolex 596365
-
Page 2: Main Parameter
1．Applicability 1.1 596365 Digital Weight Scale hand pallet truck， is used for weight distinguish in storage, has the features of promotion and demotion stable, control portable, safe and reliable.。 1.2 The working place must be non-slip, hard and flat ground without holes or obstacles 1.3 The ambience lighting is 50 lux at least... - Page 3 Fig 1 Fig 2 3.4 See fig 2. Put the chain 5of hand grip get across the middle hole of pin roll 2. 3.5 Take screw nut which is at the end of chain 5 and hitch the groove of lever board 6. See fig 2 and fig 4 3.6 Then get the spring pin 1 through pin roll 2 and fix it 。...
- Page 4 4.1 After the truck is assembled, try to rock the hand grip and operate different positions of control handle knob 40 to examine the lifting, free position and dropping and check that whether the different positions are normal or not. See fig 5. 4.2 The screw 9 in fig 4 is used to adjust the truck situation.
- Page 5 5.6 See figure 7, figure 8.Each frame of indicating instrument means 50kg. Pointer aims at six frames in figure 7.which means the weight of goods is 300 kg. Pointer aims at 13.6 frames in figure 8.which means the weight of goods is 680 kg 。 fig 7 6.
- Page 6 7. Points for attention and safety norms 7.1 The operators must put on the work clothes, safety shoes and gloves during the operation。 7.2 The trucks should be locked in order to prevent moving。 7.3 When the truck is used for the motor vehicle, the truck must be moved slowly to ensure safety 7.4 Do not park the truck on the slope or in emergency passageway 7.5 Should make operation carefully when used on the slope and make sure to operate on the...
- Page 7 The parts should be provided by manufacturers if need to change. Each rotational joints should beaded motor oil once in every three months .Pay attention to the wheel and axle can not be wrapped by sundries. To keep the wheel lightly in order to fit with the safety requirement.。 12.
- Page 8 does not meet the conditions of meter display Err05 Adjust the loaded weight calibration loaded weight is less than 20kg 13．Disposal of waste oil The waste hydraulic oil shall be disposed in terms of relative laws. And it is forbidden to pouring out anywhere。...
