morse 285A-BP Operator's Manual

The Specialist In Drum Handling Equipment
OPERATOR'S MANUAL for
for standard 55 gallon steel, ribbed drums
Serial number 1290 to 0702 (MMYY)
A. IMPORTANT:
1. Review the Material Safety Data Sheet(s) for the material(s) in the drum(s) and take all necessary precautions. Safety shoes,
work gloves, hardhat and other personal protective devices are recommended.
Please read all instructions thoroughly before attempting to operate your new MORSE drum handler.
2.
3. The model 285A-BP has a maximum capacity rating of 1200 lb. full drum and 600 lb. half-full drum and is designed to lift,
move and pour 55 gallon steel drums . (This model can also handle a fibre drum with the appropriate 55/30 saddle adaptor
and E14 fibre drum strap installed*.) DO NOT exceed these ratings. Exceeding these ratings or handling drums other than
those mentioned above is unsafe and could result in equipment damage, excessive wear or awkward handling.
4. When loading, unloading, operating, or maintaining your MORSE drum handler, always use care and good judgment.
Maintain secure footing and a firm hold. Keep hands and loose clothing away from all moving parts. Never allow anyone to
be below any part of a raised drum handler or drum. Read operating instructions and review the pictures in the sales
brochure before operation.
5. Because the 285 series are front-end attachments for a forklift, OSHA recommends "... the truck (forklift) be marked to
identify the attachment(s) and show the approximate weight of the truck and attachment combination at maximum elevation
with load laterally centered."
Prior to initial use, inspect all moving parts and test rotation of chain wheel and saddle assembly. Inspect ratchet, pawl and cinch
chains for proper operation. Perform necessary load test, inspections, operator training, etc.
B. OPERATING INSTRUCTIONS:
1. Before sliding forklift forks into the fork tubes, adjust forks to an inside spread of 24-1/2" minimum. Lock forks into position on
the forklift carriage.
2. Drive the forklift forward to slip the forks into the fork tubes (item #27). Tighten tee screws (item #43) to secure the Forklift
Karrier to the forks.
3. Release the cinch chain (item #2) and hang the loose end from the upright peg on the front of the guard. Allow the ratchet
hinge plate to swing to the open position.
4. Drive the forklift with the Forklift Karrier near floor level to position the saddle band around the middle of the drum between
the ribs.
5. Drape the cinch chain across the front of the drum and insert one link into the slot on the ratchet handle
the ratchet handle clockwise to tighten the cinch chain around the drum (see detail).
6. Remove pendant assembly (item #37) from holder on guard and place near operator's seat.
Raise forks to clear the floor and transport drum in vertical position to dispensing location.
7.
8. To pour drum: press the down button on the pendant, rotating drum to angle required for dispensing.
When dispensing is completed, rotate the drum back to vertical by pressing the up button on the pendant and return drum. While trans-
porting, ensure that the drum is raised away from the floor to prevent the drum bottom from interfering with a pallet or other obstacle.
CAUTION: DO NOT exceed weight capacity of 1200 L.b for FULL drum, 600 Lb. for HALF-FULL drum.
CAUTION:
DO NOT allow drum to impact on floor, ground, or dumping station, etc.
C. MAINTENANCE:
1. Lubricate cylinder pins (items 40 & 42) and linkages (items 33 & 41).
2. Clean and oil ratchet, pawl, saddle hinge, and other moving parts periodically. (Clean & lubricate more often in environments where
dust, dirt or other foreign particles will effect the performance of moving parts.)
3. Hydraulic pump has been filled with Dexron III automatic transmission fluid. Inspect the hydraulic system for oil drips, hose damage,
or other signs of wear. Inspect the level & condition of the hydraulic fluid. Replace any parts that show signs of wear (see parts
diagrams for pump & cylinder).
4. Periodically inspect all moving parts, framework, and contact areas for signs of wear, fatigue, or loosening. Tighten adjust or replace
parts as necessary to prevent failure and maintain proper function.
*
For each size fiber drum, this model requires a 55/30 series saddle adaptor and E14 Fiber Drum Strap.
MORSE MFG. CO., INC.
Phone: 315-437-8475 •
COPYRIGHT 2002 MORSE MFG. CO., INC.

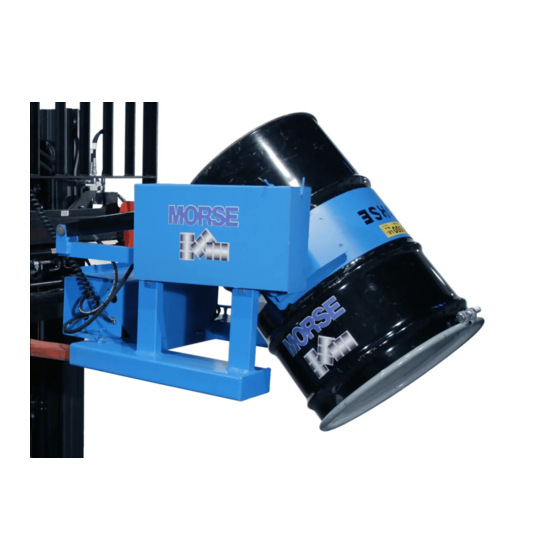

MORSE 285A-BP BATTERY-POWERED FORK-LIFT KARRIER
• 727 West Manlius Street
Fax: 315-437-1029 • Email: service@MORSEmfgco.com
Form PL 285BP (1290 - 0702)
MODEL 285A-BP
BATTERY-POWERED FORK-LIFT KARRIER
• P.O. Box 518
(Updated 9/2002)
(item #17). Turn
• East Syracuse, NY 13057-0518
• Website: www.MORSEmfgco.com
Page 1
