User manual

User Manual

of dehumidifiers

ECOFER COMFORT & ECOFER FINE

Please read this user's manual carefully to ensure proper use, maintenance and installation

Ithomis Str. 6, Chalandri, GR-15231

Athens - Greece

Τel: +30210 6715510 / +30211 7007269/ +30211 7007270

Fax: +302106542877

Website:

www.ecofer.com.gr

Table of Contents

Need help?

Do you have a question about the Comfort 17 and is the answer not in the manual?

Questions and answers

Summary of Contents for ECOFER Comfort 17

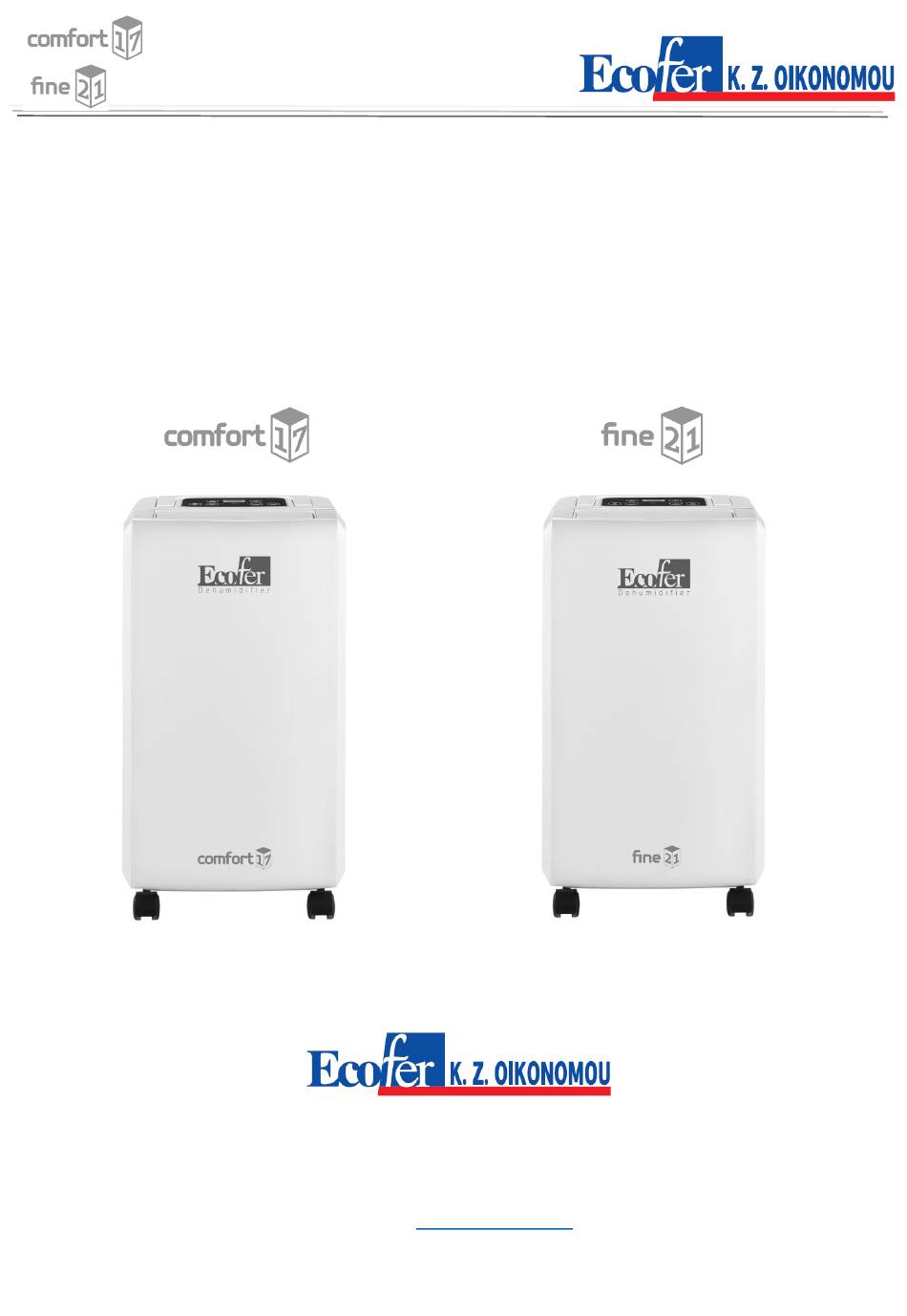

Page 1 User manual User Manual of dehumidifiers ECOFER COMFORT & ECOFER FINE Please read this user’s manual carefully to ensure proper use, maintenance and installation Ithomis Str. 6, Chalandri, GR-15231 Athens - Greece Τel: +30210 6715510 / +30211 7007269/ +30211 7007270...
Page 2: Table Of Contents
User manual Table of contents Safety instructions ..............................1 Characteristics ..............................3 Name of parts ..............................4 Appearance and function of control panel ......................5 Humidity Level & Timer 2 digit display ......................5 Push Button Functions............................6 Draining the collected water ..........................7 Emptying the Drainage Tank ..........................
Page 3: Safety Instructions
User manual Safety instructions VERY IMPORTANT! Please do not install or use your dehumidifer before you have carefully read this manual. Please keep this instruction manual for an eventual product warranty and for future reference. 1. The appliance is for indoor use only. 2.
Page 4 User manual 21. Do not operate or stop the unit by inserting or pulling out Die power plug, it may cause electric shock or fire due to heat generation. 22. Unplug the unit if strange sounds, smell, or smoke comes from it. Warning •...
Page 5: Characteristics
User manual Characteristics High level of moisture removal: Utilizing cooling technology, the dehumidifier reduces the room moisture level to the desired value to maintain the internal atmosphere at the optimum level of comfort. Lightweight compact design for easy transport: the light and ergonomic design of the dehumidifier allows it to be moved to any room.
Page 6: Name Of Parts
User manual Name of parts 1. Front shell 2. Outlet 3. Handle 4. Control Panel 5. Filter box 6. Back shell 7. Tank 8. Wheels Supply cord...
Page 7: Appearance And Function Of Control Panel
User manual Appearance and function of control panel LED INDICATORS 1. POWER-LED 2. TIMER-LED 3. FULL-LED 4. LOW WIND -LED 5. HIGH WIND-LED 6. LAUNDRY-LED Humidity Level & Timer 2 digit display 1. when the unit is plugged in, it will indicate the room humidity level. 2.
Page 8: Push Button Functions
User manual Push Button Functions A- Power Push Button B- Timer Push Button C- Fan Speed Button D- Laundry Push Button E- UP Push Button F- DOWN Push Button 1. The Power indication light will turn on when the unit is plugged in, regardless of whether the unit is operating or not.
Page 9: Draining The Collected Water
User manual Draining the collected water When the drainage tank is full, the tank full indicator light will turn on, the operation will stop automatically and the buzzer will beep 15 times to alert the user, that the water needs to be emptied from the drainage tank.
Page 10: Continuous Water Drainage
User manual 2. If the drainage tank is dirty, wash it with cold or lukewarm water. Do not use detergent, scouring pads, chemically treated dust cloths, gasoline, benzene, thinner, or other solvents, as these can scratch and damage the tank and cause water leakage 3.
Page 11: Maintenance
User manual Maintenance Cleaning the Dehumidifier To clean the Body Wipe it with a soft damp cloth. To Clean the Air Filter 1. Open the inlet grill firstly and remove the air filter 2. Clean the air filter Run a vacuum cleaner lightly over the surface of the air filter to remove dirt. If the air filter is exceptionally dirty, wash it with warm water and a mild cleanser and dry thoroughly.
Page 12: Storing The Dehumidifier
User manual Storing the Dehumidifier When the unit is not being used for a long period of time and you want to store it note the following steps: 1. Empty any water left in the drainage tank. 2. Fold up the power supply cord and put it in the water tank. 3.
Page 13: Troubleshooting
Move the unit to a stable, unsteady? sturdy location. Operation is noisy Clean the air filter as Is the air filter clogged? instructed under "Cleaning the dehumidifier". Ecofer Comfort Ecofer Fine Model Rated Voltage: 220-240V/50HZ 220-240V/50HZ 380W Rated Input 300W 2.0A...
Page 14: Recycling
User manual The product or equipment contains fluorinated greenhouse gas. Coolant: R290 Global Warming Potential: 3 Recycling This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
Page 15 User manual Ithomis Str. 6, Chalandri, GR-15231 Athens - Greece Τel: +30210 6715510 / +30211 7007269/ +30211 7007270 Fax: +302106542877 Website: www.ecofer.com.gr...

This manual is also suitable for:

Fine 21
