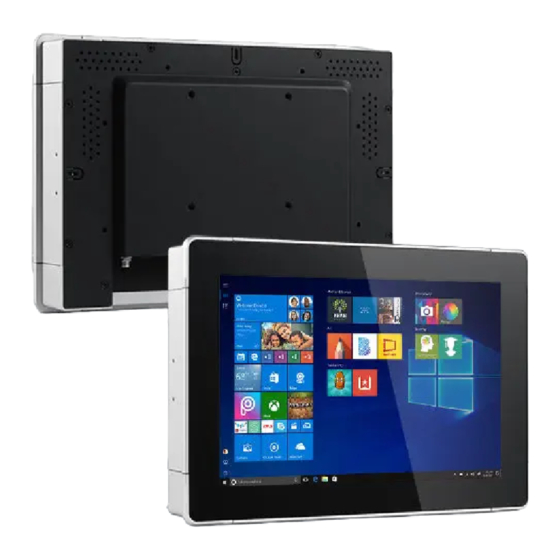

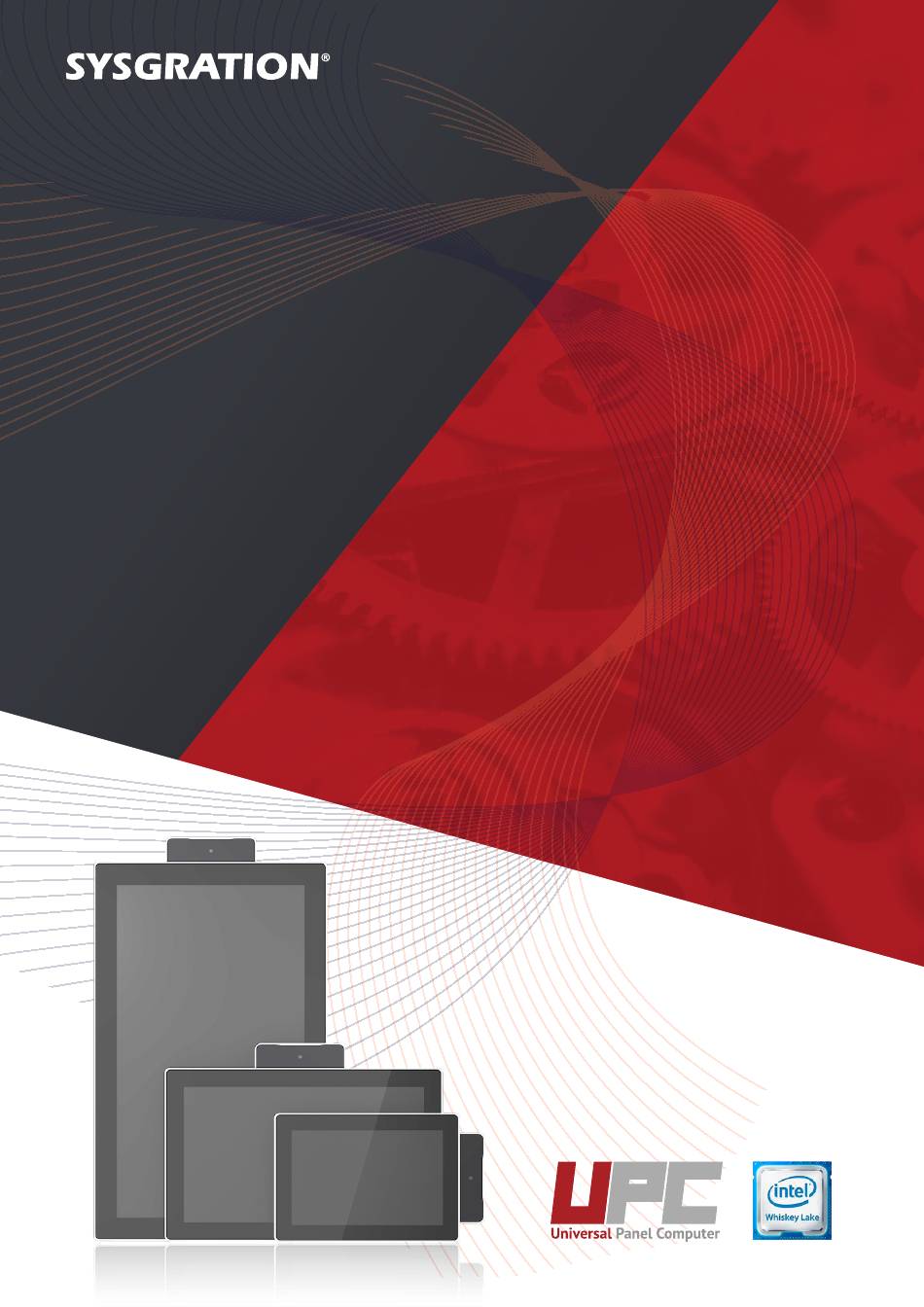

- Page 1 User Manual UPC-W101/W156/W215 10.1” /15.6“ /21.5” Universal Panel Computer...
- Page 2 The documentation and the software included with this product are copyrighted 2019 by Sysgration Co., Ltd. All rights are reserved. Sysgration Co., Ltd. reserves the right to improve the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of Sysgration Co., Ltd.
- Page 3 If any of these items are missing or damaged, contact your distributor or sales representative immediately. Technical Support and Assistance 1. Visit the Sysgration website at http://www.sysgration.com to obtain the latest product information. 2. Contact your distributor, sales representative, or Sysgration’s customer service center for technical support if you need additional assistance.
- Page 4 Maintenance: Use only approved products or a dry applicator to clean and maintain Warning the surfaces. Contact information Manufacturer Sysgration Co., Ltd. 6Fl., No.1, Sec. 1, Tiding Blvd., Neihu Dist., Taipei City, 11494, Taiwan, R.O.C. TEL: +886-2-2790-0088 Safety Instruction Read these safety instructions carefully.
- Page 5 17. Use only the recommended mounting apparatus to avoid damage due to falling. DISCLAIMER: These instructions are provided according to IEC 704-1 standards. Sysgration disclaims all responsibility for the accuracy of any statements contained herein. Because of the risk of electric shock, do not remove the equipment cover during operation or when connected to a power outlet.
-
Page 6: Table Of Contents
Content Chapter 1 / General Information ....................6 1. General Information ................................. 7 1.1 Introduction ..................................7 1.2 Specification ..................................7 1.2.1 UPC-W101 ................................7 1.2.2 UPC-W156 ................................8 1.2.3 UPC-W215 ................................9 1.3 Dimension..................................10 1.3.1 UPC-W101 ................................10 1.3.2 UPC-W156 ................................10 1.3.3 UPC-W215 ................................10... -
Page 7: Chapter 1 / General Information
Chapter General Information... -
Page 8: General Information
1. General Information 1.1 Introduction Sysgration’s UPC-W series products are 10.1”, 15.6”, and 21.5” fanless, low-power, all-in-one touch panel computers suitable for use as control room computing devices, production line industrial digital signage, showroom interactive signage, self-service kiosks, and public service terminals, as well as to support diverse digital retail, hospitality, healthcare, education, entertainment, and information processing applications. -
Page 9: Upc-W156
Power Input 1x 2.5mm DC jack / 12~24V DC in Power Power consumption 50 watt Management Adaptor Optional Adaptor 100~240Vac, O/P: 12V/7.5A/90W Certification CE, FCC 1.2.2 UPC-W156 Size 15.6” TFT LCD Resolution 1366 x 768 Brightness 500 nits (Typ.) Contrast Ratio 600 (Typ.) Display &... -
Page 10: Upc-W215
1.2.3 UPC-W215 Size 21.5 TFT LCD Resolution 1920 x 1080 Brightness 250 nits (Typ.) Display & Touch Contrast Ratio 3000 (Typ.) Screen Viewing Angle 80/80/80/80 10 points P-Cap touch panel, support wet mode, Touch Technology glove mode and 5mm stylus. Optional 5-wire true flat Resistive touch panel Processor Intel®... -
Page 11: Dimension
1.3 Dimension 1.3.1 UPC-W101 257.2 VESA Hole 266.2 M4 depth=5mm 1.3.2 UPC-W156 390.2 VESA Hole 399.2 M4 depth=5mm 1.3.3 UPC-W215 4.50 534.64 4.50 VESA Hole M4 depth=5mm 543.64... -
Page 12: Chapter 2 / Getting Started
Chapter Getting Started... -
Page 13: Getting Started
2. Getting Started Before beginning system setup, take a moment to become familiar with the package content, connector locations and functions, as shown in the figures below. 2.1 Package Content Panel Computer Packet of mounting kits DC power converting cable Quick start guide Packet of cable clamps (only available on 15.6”... -
Page 14: Side View
2.6 Setup Procedures 2.6.1 System Power On 1. For the UPC-W101/ UPC-W156/ UPC-W215 model, connecting the system to a DC power source or external power supply via DC in Jack 2. Hold power cords by the plugs ends only. Refer to Section 2.5 for the location of the DC power. -
Page 15: Bios Setup
After installing the system software, users can set up the Ethernet, XGA, audio, and touchscreen functions. The relevant drivers and utilities are subject to change without notice. Download the latest drivers for UPC series products from the Sysgration website at http://support.sysgration.com... - Page 16 Using gloves Using nger mode and when water drops is present on the screen Using 5mm capacitive stylus with palm rejection Different type of gloves characteristics, materials, and design will have different results on the touch performance Note...
-
Page 17: Chapter 3 / Mounting And Installation
Chapter Mounting and Installation... -
Page 18: Mounting And Installation
3. Mounting and Installation Sysgration’s UPC series systems are PC-based computers housed in an aluminum enclosure. To perform system maintenance or hardware upgrades, such as installing an HDD, DRAM, simply remove the unit’s rear cover. Do not remove the rear cover until you have verified that power is not flowing within the device. - Page 19 2. Insert the UPC properly into the cut out area UPC 10.1” 3. Place the mounting bracket to the UPC and then fasten it using M3 x 6 mm screw with torque maximum 4 kgf-cm, tighten each mounting bracket on every side until each of it is firmly tightened 4.
-
Page 20: Upc-W156, 15.6-Inch
5. Installation complete 3.1.2 UPC-W156, 15.6-inch Panel mount cut out wall 392.20 Suggested cut out size 15.6” Panel mount cut out Panel mount bracket mounting kit Quantity Mounting bracket M4 x 20mm screw M3 x 6mm screw 6 pcs 6 pcs 12 pcs Installation Step 1. - Page 21 2. Insert the UPC properly into the cut out area UPC 15.6” 3. Place the mounting bracket to the UPC and then fasten it using M3 x 6 mm screw with torque maximum 4 kgf-cm, tighten each mounting bracket on every side until each of it is firmly tightened 4.
-
Page 22: Upc-W215, 21.5-Inch
5. Installation Complete 3.1.3 UPC-W215, 21.5-inch Panel mount cut out wall 536.60 Suggested cut out size 21.5” Panel mount cut out Panel mount bracket mounting kit Quantity Mounting bracket M4 x 20mm screw M3 x 6mm screw 8 pcs 8 pcs 16 pcs Installation Step 1. - Page 23 2. Insert the UPC properly into the cut out area 3. Place the mounting bracket to the UPC and then fasten it using M3 x 6 mm screw with torque maximum 4 kgf-cm, tighten each mounting bracket on every side until each of it is firmly tightened 4.
-
Page 24: Vesa Mount Installation
5. Installation Complete 3.2 VESA Mount Installation UPC-W101 can be mounted to a VESA 75 x 75 and UPC-W156/W215 can be mounted to a VESA 100 X 100 mounting system. • Rear view with holes (M4-depth 5 mm) for VESA 75/100 Mounting •... -
Page 25: Expansion Module Installation (Optional)
3.3 Expansion Module Installation (Optional) 3.3.1 UPC-W101 /W156/W215 1. Secure module mounting bracket to the UPC system using M3 x 5mm screw with torque maximum 4 kgf-cm. 2. Pass the cable into cutting hole on the mounting bracket and then secure expansion... - Page 26 3. Fasten the expansion module into the mounting bracket using M3 x 5mm screw with torque maximum 4 kgf-cm. 4. Organize USB cable behind panel computer to neatly attached (using the clamp cable) to the back of your panel computer and then connect the USB cable to I/O port (USB) 5.
- Page 27 No part of this publication may be reproduced in any form or by any means, such as electronically, by photocopying, recording, or otherwise, without prior written permission from the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. @Sysgration Ltd.
