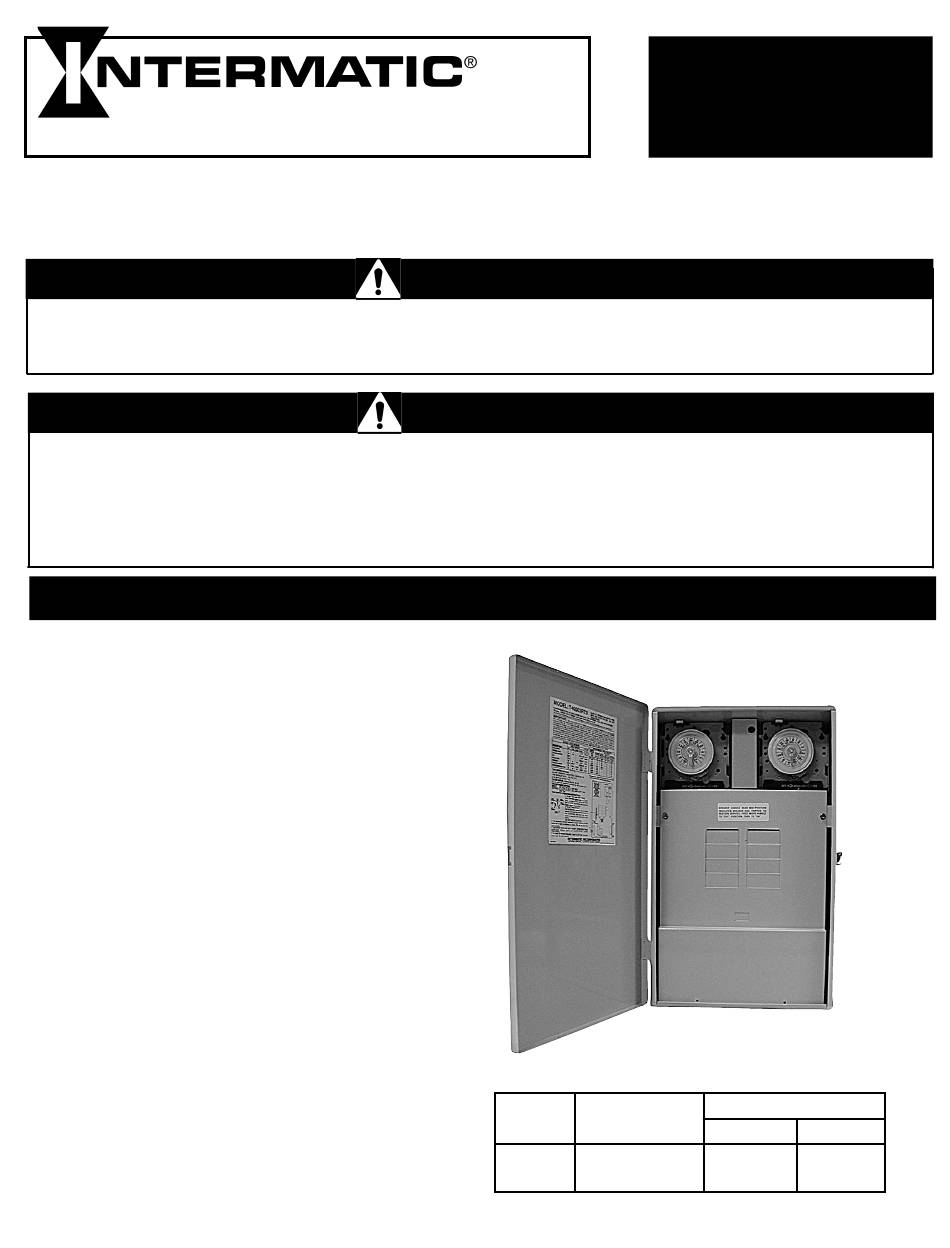

T40000RT SERIES
POOL/SPA EQUIPMENT CONTROLS
CONTROL PANEL WITH TIME SWITCH FOR INDOOR/OUTDOOR USE
Suitable for Pool Equipment Control and for Direct Connection of Underwater Lights
ELECTRICAL RATINGS: See inside Enclosure Door
Risk of drowning!
Do not permit unsupervised children to use pool or spa.
Close supervision of children required at all times.
Risk of electric shock!
Test ground fault protection regularly. If it fails, do not use Pool or Spa. Contact
qualified service professional for help.
Do not use this control as a power disconnect, it could turn ON unexpectedly.
Disconnect electricity at the main Panel before servicing this control or the
equipment(s) connected to it.
Many of today's energy efficient pools and spas
utilize the advantages of a single electrical panel,
containing all the necessary controls for the safe,
efficient and automatic operation of the pool/spa
equipment. In addition, this Panel can also be
used to control any outdoor equipment, sign or
pump within its rated capacity.
The Transformers supplied in these panels are
specifically designed to supply 12 volts to under-
water pool/spa lights. A grounded shield between
the primary and secondary winding assures safe
operation and the built-in circuit protection will
disconnect power to the transformer in case of
overload. These transformers are suitable for direct
connection to underwater Pool and Spa lights.

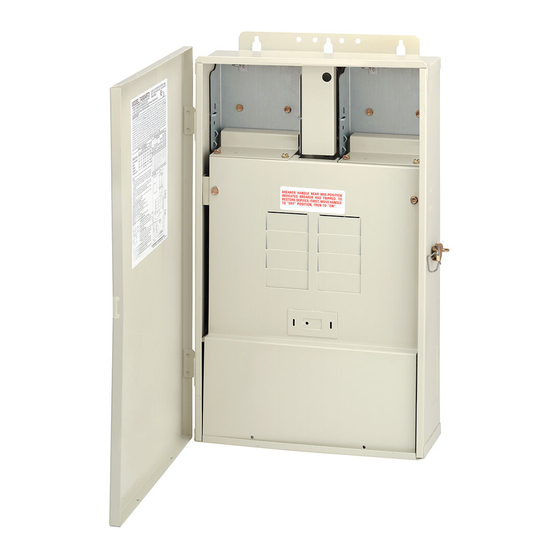

The all-weather enclosure may contain a heavy-
duty, industrial grade Time Switch, with
mounting provision for a second Intermatic
switching device. Also, it has provisions to install
a switch inside as well as a switch or GFCI
receptacle on the outside. The Time Switch can
also accommodate an optional heater control
(fireman) switch.
The Control is designed to operate any pump,
within its rated capacity. However, if protection
to prevent dry start is required by the pump
manufacturer, it must be provided in addition
to this Control. Contact pump manufacturer
if not sure and/or for more details.
DANGER
WARNING
GENERAL INFORMATION
Transformer
Rating
100W
300W
* Any combination of bulbs, any tap.
1
OPERATION &
SERVICE MANUAL
Input
Secondary Output
60 Hz.
Lamp Watts*
120V. 1 Amp Max.
100 Max.
120V. 3 Amp Max.
300 Max.
Volts
12, 13 or 14
12, 13 or 14
