Summary of Contents for Safe Spacer S-Charger

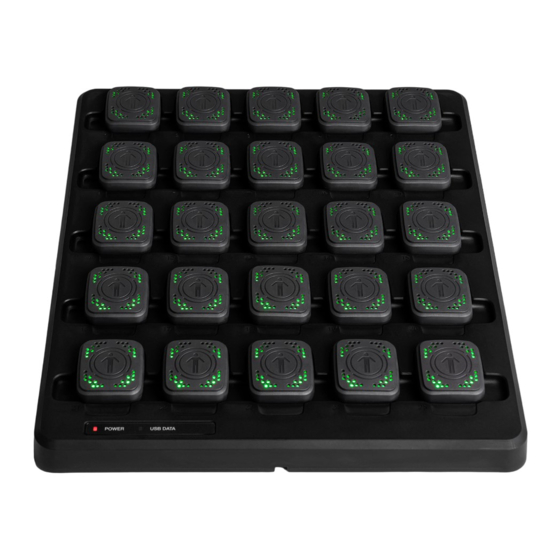

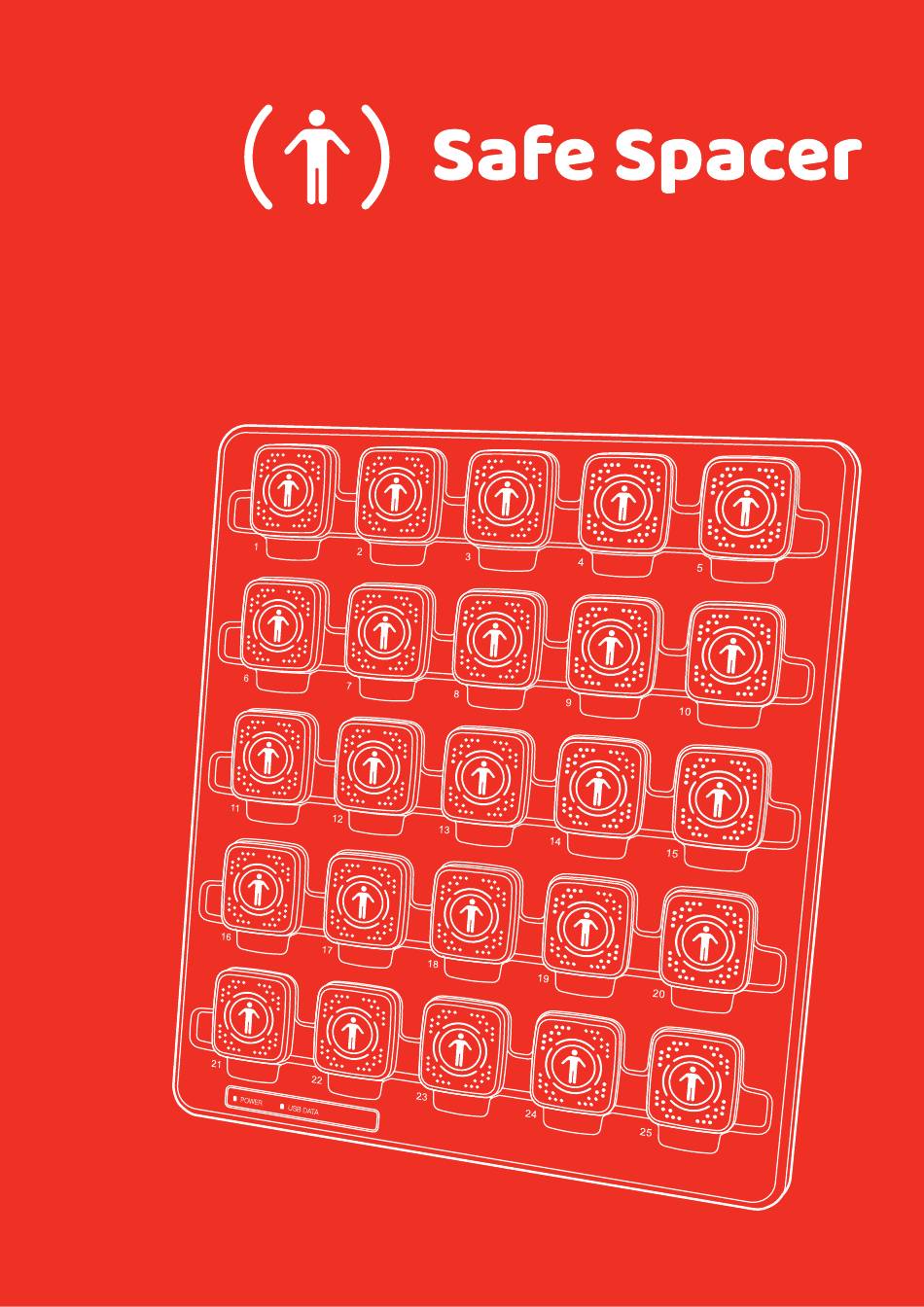

- Page 1 Wearable social distance monitor S-Charger...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1 SAFETY INSTRUCTIONS 1.1 Repair and modifications 2 OVERVIEW 3 POWER SUPPLY 4 CHARGING 4.1 Battery level status 5 DATA TRANSFER 6 WALL FIXING OR FREESTANDING 7 SPECS S-Charger REGULATORY... -
Page 3: Safety Instructions
Before using this product, carefully read this user manual. Failure to follow these safety instructions could result in fire, electric shock, injury, or damage to S-Charger or other property. Do not dispose of this manual. Ensure that this information is retained and used appropriately by the product user. -
Page 4: Overview
2 OVERVIEW MICRO USB PORT (25 x) DC-IN / DC-LINK DC-IN / DC-LINK USB TYPE-B PORT... -
Page 5: Power Supply
3 POWER SUPPLY • Connect a PSU (sold separately) to either of the two DC-IN / DC-LINK ports on the back of S-Charger. • It is possible to connect multiple S-Chargers to a single PSU, using the optional S-Charger Power Link Cable (sold separately). -
Page 6: Charging
4 CHARGING • Insert the Safe Spacer units into the holders, paying attention to the position of the Micro-USB connector. • It is possible to connect up to 25 Safe Spacer to the same S-Charger in order to charge them. -
Page 7: Battery Level Status
Don’t use a charging cable or power adapter that is damaged or modified. Failure to do so may cause fire, electric shock, injury, or damage to Safe Spacer or other property. Don’t wear Safe Spacer on your body or under clothing when charging the device. -
Page 8: Data Transfer
5 DATA TRANSFER • Insert the USB cable into the USB-B port on the back of S-Charger • Then connect the other end of the cable to computer or IT infrastructure. -
Page 9: Wall Fixing Or Freestanding
6 WALL FIXING OR FREESTANDING The S-Charger can be fixed to a wall... 160 mm 198 mm 160 mm 160 mm 198 mm 198 mm 160 mm 198 mm ..or can be used freestanding, for example placed over a table. -
Page 10: Specs
USB cable USB-B male to USB-A male cable (included) Power Supply Unit (PSU) PSU to power up to 3 S-Charger units (available separately) Daisy chain cable allows to power up to 3 S-Charger units with the same PSU (available separately) -
Page 11: Regulatory
REGULATORY S-Charger P/N: IK152-100 FCC statement This device complies with Part 15.107 and 15.109 Class B of the FCC Rules CFR47: October 2010. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation.
