PoE midspans for PTZ cameras
en
Installation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PoE midspans and is the answer not in the manual?

Questions and answers

Summary of Contents for Bosch Security PoE midspans

  • Page 1 PoE midspans for PTZ cameras Installation Manual...

  • Page 3: Table Of Contents

    PoE midspans for PTZ cameras Table of contents | en Table of contents Safety About this Manual Legal Information Safety Precautions Important Safety Instructions Customer Support and Service Unpacking Parts List Parts List Additional Parts Required Tools Required Additional Parts Recommended But Not Required...

  • Page 4: Safety

    Because of the ongoing development of products, the content of the manual may change without notice. Bosch Security Systems accepts no liability for damage resulting directly or indirectly from faults, incompleteness, or discrepancies between the manual and the product described.

  • Page 5: Safety Precautions

    PoE midspans for PTZ cameras Safety | en Safety Precautions In this manual, the following symbols and notations are used to draw attention to special situations: Danger! High risk: This symbol indicates an imminently hazardous situation such as “Dangerous Voltage” inside the product. If not avoided, this will result in an electrical shock, serious bodily injury, or death.

  • Page 6: Important Safety Instructions

    | Safety PoE midspans for PTZ cameras Important Safety Instructions Important safety information – The unit should be connected to PoE networks only, without routing to the outside plant. – Only qualified personnel can install or remove the unit.
  • Page 7 PoE midspans for PTZ cameras Safety | en – The Data In and Data & Power Out interfaces are qualified as SELV (Safety Extra-Low Voltage) circuits according to IEC 60950-1. These interfaces can only be connected to SELV interfaces on other equipment.

  • Page 8: Customer Support And Service

    | Safety PoE midspans for PTZ cameras Customer Support and Service If this unit needs service, contact the nearest Bosch Security Systems Service Center for authorization to return and shipping instructions. USA and Canada Telephone: 800-289-0096, option 5 Fax: 800-366-1329 Email: repair@us.bosch.com...

  • Page 9: Unpacking

    PoE midspans for PTZ cameras Unpacking | en Unpacking Parts List The package containing the midspan should include the following items: Quantit Component 60W midspan 120 V power cord 230 V power cord Quick installation guide Quantit Component High PoE Midspan 95 W, indoor model...

  • Page 10: Tools Required

    | Unpacking PoE midspans for PTZ cameras Quantity Part Size Notes Mounting Head diameter: 1.5 mm (0.059 in.) screws; 5.8 mm clearance from mounting Select either (0.23 in.) surface size Head diameter: 2.5 mm (0.098 in.) (but not both).

  • Page 11: Additional Parts Recommended But Not Required

    PoE midspans for PTZ cameras Unpacking | en Additional Parts Recommended But Not Required The following table lists additional parts (not supplied by Bosch) recommended to install the midspan: Quantity Part Surge suppressor Splitter Universal Power Supply (UPS) Bosch Security Systems...

  • Page 12: System Overview

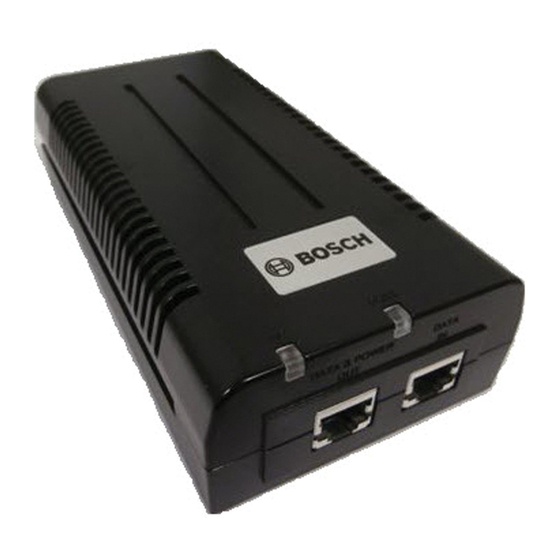

    | System overview PoE midspans for PTZ cameras System overview 60 W Midspan The 60 W midspan enables remote High Power over Ethernet (High PoE) for various Bosch IP/HD PTZ cameras. Generating a maximum of 60 W, it complies to both the IEEE 802.3af and the IEEE 802.3at standards, while doubling the available power.

  • Page 13: Installation (Indoor Models)

    ANSI/NFPA 70 (the National Electrical Code (NEC)), Canadian Electrical Code, Part I (also called CE Code or CSA C22.1), and all applicable local codes. Bosch Security Systems accepts no liability for any damages or losses caused by incorrect or improper installation.
  • Page 14 | Installation (Indoor models) PoE midspans for PTZ cameras Place the midspan on a desktop, or mount it to a wall, a bench, or a shelf using the mounting holes in the bottom of the device. Mount the Unit Directly to a Flat Surface Select the mounting location and surface.

  • Page 15: Installation (Outdoor Model)

    ANSI/NFPA 70 (the National Electrical Code (NEC)), Canadian Electrical Code, Part I (also called CE Code or CSA C22.1), and all applicable local codes. Bosch Security Systems accepts no liability for any damages or losses caused by incorrect or improper installation.

  • Page 16: Connect The Midspan To Ground

    | Installation (Outdoor model) PoE midspans for PTZ cameras Connect the midspan to ground Connect the chassis bolt to the Earth ground point on the rear of the midspan. 1.1 Nm - 1.7 Nm (10 - 15 Lb-in.) Tighten the screw to 1.1 N m to 1.7 N m (0.83 lbf ft to 1.25 lbf ft/10 lbf in.

  • Page 17: Install The Midspan Directly To A Wall

    PoE midspans for PTZ cameras Installation (Outdoor model) | en Install the midspan directly to a wall Using the screw holes of the midspan as a template, put marks on the mounting surface (a wall of wood, brick, or concrete) to show where to drill holes to install the midspan.
  • Page 18 | Installation (Outdoor model) PoE midspans for PTZ cameras Tighten each screw until the midspan is attached safely to the mounting surface. 2020-11 | 1.0 | Bosch Security Systems...

  • Page 19: Install The Midspan To A Pole Mount Adapter

    PoE midspans for PTZ cameras Installation (Outdoor model) | en Install the midspan to a pole mount adapter Before you start installation, make sure that all the parts listed in the Parts List below are included. If any items are missing, notify your Sales or Customer Service Representative from Bosch Security Systems.
  • Page 20 | Installation (Outdoor model) PoE midspans for PTZ cameras Notice! Earth grounding necessary for lightening suppression When using a pole mount adapter, make sure to ground the pole to earth for lightning suppression. Install the midspan onto the mounting bracket of the pole mount adapter, using four (4) pan head screws.
  • Page 21 PoE midspans for PTZ cameras Installation (Outdoor model) | en Pole of small diameter The table that follows identifies the components to install the metal bracket on a pole with a diameter of 25 mm to 76 mm (1 in. to 3 in.). Quantity...
  • Page 22 | Installation (Outdoor model) PoE midspans for PTZ cameras Pole of large diameter The table that follows identifies the components to install the metal bracket on a pole with a diameter of 76 mm to 203 mm (3 in. to 8 in.). Quantity...
  • Page 23 PoE midspans for PTZ cameras Installation (Outdoor model) | en Refer to the two figures that follow for illustration of final installation of the bracket. Figure 5.1: Midspan on pole mount adapter installed on pole with small diameter Figure 5.2: Midspan on pole mount adapter installed on pole with large...

  • Page 24: Connect The Ac Cable

    | Installation (Outdoor model) PoE midspans for PTZ cameras Connect the AC cable Assemble the AC cable, using the figure that follows as a guide. 1 Use the AC outer ring cap to open the AC cable connector. 2 Verify that the slots are parallel.

  • Page 25: Connect The Rj45 Cable

    PoE midspans for PTZ cameras Installation (Outdoor model) | en Connect the RJ45 cable Assemble the RJ45 cable, using the figure that follows as a guide. Tighten the last two connectors with your hand. Bosch Security Systems 2020-11 | 1.0 |...

  • Page 26: Connection

    | Connection PoE midspans for PTZ cameras Connection Note: No “on-off” switch exists; simply plug the midspan into an AC power source. Notice! The PoE ports “Data In“ and “Data & Power Out“ are shielded RJ45 data sockets. They cannot be used as “Plain Old Telephone Service”...
  • Page 27 PoE midspans for PTZ cameras Connection | en Figure 6.1: Midspan_DataIn_DataOut_Connections 1 AC input connectivity indicator 2 Port connectivity indicator 3 CAT5 cable 4 Connection to camera 5 Connection to Ethernet switch 95 W outdoor model: Connect the Ethernet cable from the remote Ethernet network to the “DATA IN ”...
  • Page 28 | Connection PoE midspans for PTZ cameras Connect the AC power lines from the “LINE IN” terminal (item 1 in the following figure) to main AC power. Make sure that the power outlet is nearby and easily accessible. Make sure that the 'N', 'L,' and 'Ground' terminals have the correct polarity.

  • Page 29: Troubleshooting

    PoE midspans for PTZ cameras Troubleshooting | en Troubleshooting The following tables identify the LED indicators on the top of the midspan. AC (Main) LED Indicator (60 W and 95 W) AC (Main) Green Green Power off indicator Power on indicator...
  • Page 30 | Troubleshooting PoE midspans for PTZ cameras Port LED Indicator (95 W) Port LED Behavior – – Nothing is connected to the port. – Yellow ON – Power is supplied over the data pair or over the spare pair.
  • Page 31 PoE midspans for PTZ cameras Troubleshooting | en Troubleshooting Steps Symptom Corrective Steps – 1. Verify that a reliable power cord is used. midspan 2. Verify that the voltage at the power inlet does not is between 100 and 240 VAC.
  • Page 32 | Troubleshooting PoE midspans for PTZ cameras – The camera 1. (Indoor models only) Verify that the port operates, indicator on the front panel is continuously but there is lit. no data link. 2. If an external power splitter is used, replace it with a splitter known to operate.

  • Page 33: Disposal

    PoE midspans for PTZ cameras Disposal | en Disposal Disposal Your Bosch product has been developed and manufactured using high-quality materials and components that can be reused. This symbol means that electronic and electrical devices that have reached the end of their working life must be disposed of separately from household waste.
  • Page 34 | Disposal PoE midspans for PTZ cameras 2020-11 | 1.0 | Bosch Security Systems...
  • Page 36 Bosch Sicherheitssysteme GmbH Bosch Security Systems, LLC Robert-Bosch-Ring 5 1706 Hempstead Road 85630 Grasbrunn Lancaster, PA, 17601 Germany www.boschsecurity.com © Bosch Sicherheitssysteme GmbH, 2020...
