Summary of Contents for Crossray TCE15TR

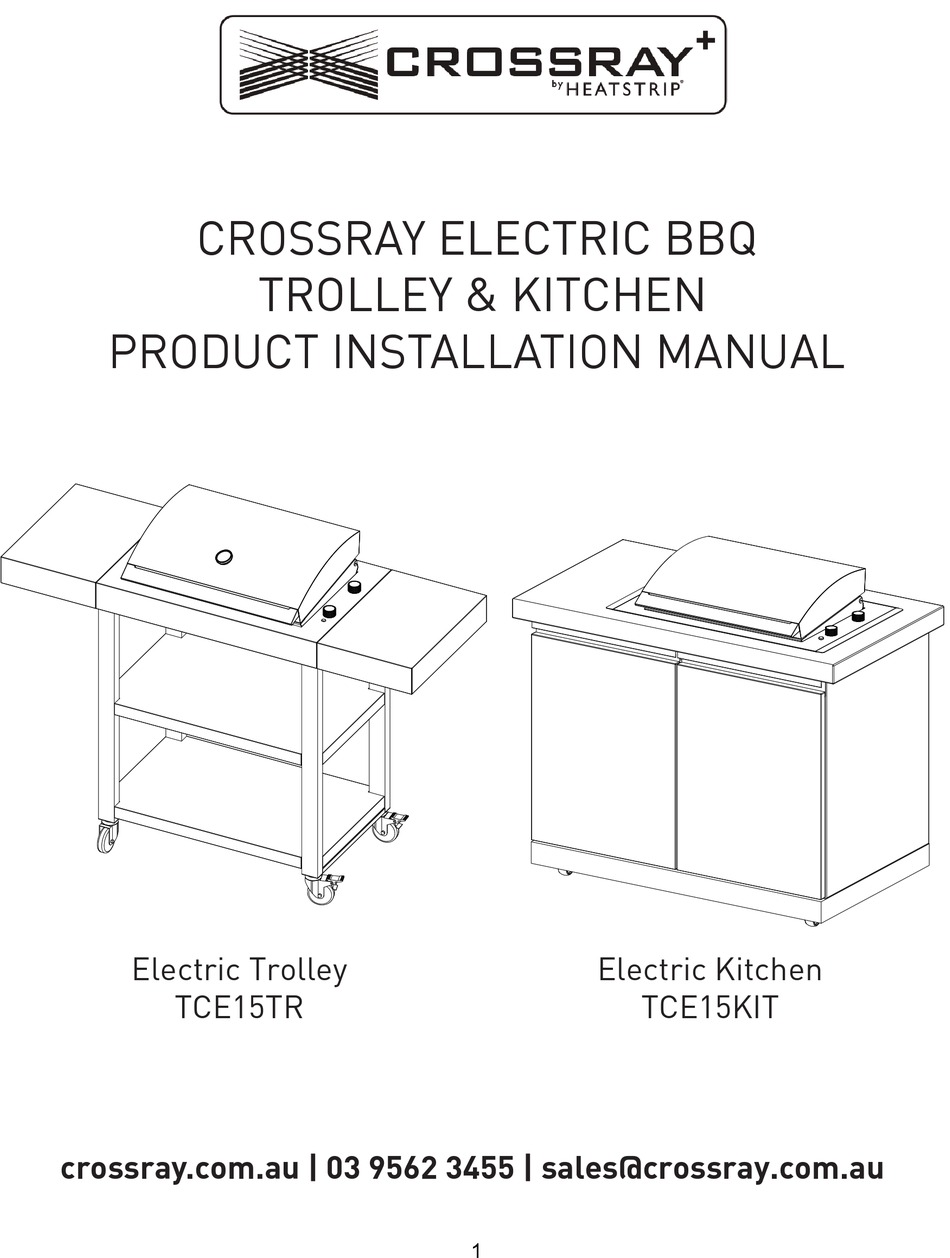

- Page 1 CROSSRAY E ECTRIC KITC E PRODUCT INSTALLATION MANUAL TCE15TR TCE15KIT crossray.com.au | 03 9562 3455 | sales@crossray.com.au...
- Page 2 TCE15TRR Assembly Instructions Install CROSSRAY Trolley. Phillips Head Screw 3/16"x3/8" Qty.16...
- Page 3 Install Casters.
- Page 4 Install Side shelf, bracket onto BBQ. Phillips Head Screw 3/16"x3/8" Qty.8 Insert the BBQ onto the trolley,and secure it with screws from underneath. Phillips Head Screw 3/16"x3/8" Qty.4...
- Page 5 Install the side shelves. To remove the side shelves, lift a shelf, let the end rotate down (45°), then lift it off the grill.
- Page 6 TCE15KIT Kitchen Cabinet Assembly instructions . Install Casters. Phillips Head Screw 3/16"x3/8" Qty.16 Install Trolley side panels. Phillips Head Screw 3/16"x3/8" Qty.6...
- Page 7 Install Trolley Rear panel. Phillips Head Screw 3/16"x3/8" Qty.9 Rear panel,Upper Rear panel,Lower Install Door Bracket. Phillips Head Screw 3/16"x3/8" Qty.4...
- Page 8 Install middle panel. Double screw 3/16"x3/8" Qty.4 Install the screws. Slide in the midde panel.
- Page 9 Install countertop. Phillips Head Screw M6X20 Qty.4 1. Pre-install the screws partially on the Table plate (Do not tighten to the end). Position the pre-installed Screws on the cabinet (Handle with care).
- Page 10 Install Door 2. 2.Press the latch on the door, and slide the door into the hole when the latch is flush with the door support piece. Tilt the door to an angle. Tilt the door and insert to the hole on bottom.
- Page 11 Install Trim brackets. Countersunk Flat Head Screw 3/16"x3/8" Qty.4...
- Page 12 How to adjust the height of the caster with leveling glide. 1.When you want to move the cabinet, please lift the leveling glide with wrench as shown on below image (please keep the leveling glide off the floor 3-5mm). 2.When you want to level the cabinets., please use a wrench (not included) to adjust the leveling-caster.
