ICT pcm Series Instruction Manual

ICT ISOLATED CONVERTERS

SPECIFICATIONS - NOISE FILTERS

The ICT Noise Filters and the ICT Surge Protectors are
designed to filter out differential and common mode
noise which is present in industrial equipment,
automobiles and electrical systems. These conditioners
PCM-12ADL
filter both positive and negative leads of the electrical
PCM-25ADL

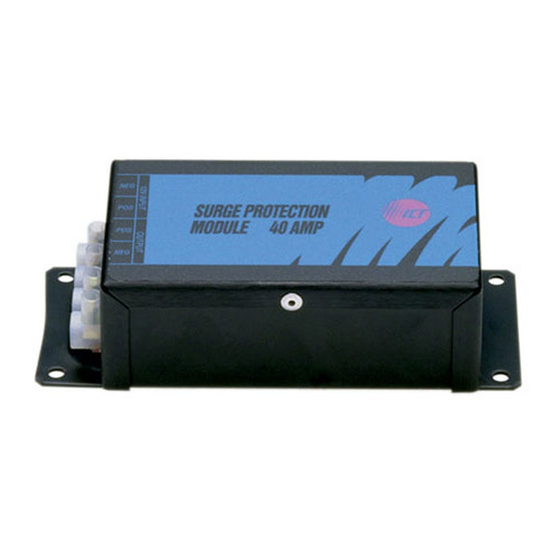

system. The ICT Surge Protectors also include a
transient surge protection device to protect 12 Volt
PCM-40ADL
equipment from spikes and surges.
These instructions should be read before using the
product and it should be saved for future reference.

SPECIFICATIONS - SURGE PROTECTORS

Outline Drawing
10A & 25A size
1.625
(41)
SPM-12ADL
SPM-25ADL
SPM-40ADL
TOP VIEW
1.22
(31)
(124.5)
SIDE VIEW
40A size
2.00
(50.8)
4.53
(115)
5.38
(137)
TOP VIEW
1.61
(41)
5.88
(149)
SIGNED OFF BY:
SIDE VIEW
WARNING
 Incorrect wiring may result in serious damage to
both power conditioner and equipment wired to
Input Voltage Continuous Intermittent
power conditioner.
Range Current
0.10-100 VDC 12.0 Amps 16.0 Amps
NOTES
0.10-100 VDC 25.0 Amps 35.0 Amps
0.10-100 VDC 40.0 Amps 55.0 Amps
 When the filter is being used to filter out noise
entering a piece of equipment, such as a mobile
radio or stereo system, it should be mounted as
close "electrically" as possible to the equipment.
 When the filter is being used to filter sources of
noise such as small generators or electric motors,
then it must be as "electrically" close as possible
to these noise sources.
Input Voltage Continuous Intermittent
Range Current
0-12 VDC 12.0 Amps 16.0 Amps
3.54
(90)
0-12 VDC 25.0 Amps 35.0 Amps
4.40
(112)
0-12 VDC 40.0 Amps 55.0 Amps
4.9
TORQUE RATING: 7 IN-LB MAX
WIRE RANGE: 20-10 AWG
DOUBLE-ROW TERMINAL STRIP
Filter Frequency
Current Range
10 Hz - 200 MHz
10 Hz - 200 MHz
10 Hz - 200 MHz
Filter Frequency
Current Range
10 Hz - 200 MHz
INCHES (MILLIMETRES)
10 Hz - 200 MHz
10 Hz - 200 MHz
2.45
(62)
REAR VIEW
2.71
(69)
REAR VIEW
Limited Warranty
ICT Ltd. warrants to the original consumer purchaser that this
product shall be in good working order, free from defects in
materials and workmanship, for a period of one (1) year from the
date of purchase. Should failure occur during the above stated time
period, then ICT will, at its option, repair or replace this product at
no additional charge except as set forth below. All parts, whether
ICT POWER CONDITIONERS
for repair or replacement, will be furnished on an exchange basis.
All exchange pieces become the property of ICT. This limited
NOISE FILTERS & SURGE PROTECTORS
warranty shall not apply if the ICT product has been damaged by
unreasonable use, accident, negligence, disaster, service, or
modification by anyone other than the ICT factory.
Limited warranty service is obtained by delivering the product
during the above stated one (1) year warranty period to an
authorized ICT dealer or ICT factory and providing proof of purchase
date. If this product is delivered by mail, you will insure the product
or assume risk of loss or damage in transit, and prepay shipping
charges to the factory.
Every reasonable effort has been made to ensure that ICT product
manuals and promotional materials accurately describe ICT product
specifications and capabilities at the time of publication. However,
because of ongoing improvements and updating of ICT products,
ICT cannot guarantee the accuracy of printed materials after the
date of publication and disclaims liability for changes, errors or
DIMENSIONS IN
omissions.
If this ICT product is not in good working order, as outlined in the
above warranty, your sole remedy shall be repair or replacement as
provided above. In no event will ICT be liable for any damages
resulting from the use of or the inability to use the ICT product,
even if an ICT employee or an authorized ICT dealer has been
advised of the possibility of such damages, or for any claim by any
other party.
ICT reserves the right to make changes without further notice to
any products or documentation for improvement of reliability,
function, or design.
ICT Ltd. does not recommend use of its products in life support
applications wherein a failure or malfunction of the product may
directly or indirectly threaten life or cause injury. The user of ICT
products, which are to be used in life support applications as
described above, assumes all risks of such use and indemnifies ICT
against all damages.
