ELECTRIC BENCHTOP BUFFER POLISHER TOOL MACHINE
ITEM: 45080, 45809, 45810
OWNER'S MANUAL AND SAFETY INSTRUCTIONS
SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT'S
SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH
AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER)
FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: 909.628.0880 MON-FRI 9AM TO 3PM PST
Advertisement
Table of Contents
Summary of Contents for Xtreme Power 45080
- Page 1 ELECTRIC BENCHTOP BUFFER POLISHER TOOL MACHINE ITEM: 45080, 45809, 45810 OWNER’S MANUAL AND SAFETY INSTRUCTIONS SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY, OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER) FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: 909.628.0880 MON-FRI 9AM TO 3PM PST...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION GENERAL SAFETY WARNINGS Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. SAFETY The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. - Page 3 IMPORTANT SAFETY INFORMATION ALWAYS USE SAFETY GLASSES. Also use face or dust mask if cutting operation is dusty. Everyday eyeglasses only have impact resistant lenses, they are NOT safety glasses. SECURE WORK. Use clamps or a vise to hold work when practical. It’s safer than using your hand and it frees both hands to operate tool.
- Page 4 IMPORTANT SAFETY INFORMATION 3. Check with a qualified electrician or service personnel if the grounding instructions are not completely understood, or if in doubt as to whether the tool is properly grounded. 4. Use only 3-wire extension cords that have 3-prong grounding plugs and 3-pole receptacles that accept the tool’s plug.
-
Page 5: Vibration Safety
APPLICATIONS 15. WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities, contains chemicals known [to the State of California] to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • Lead from lead-based paints •... -
Page 6: Parts And Operation

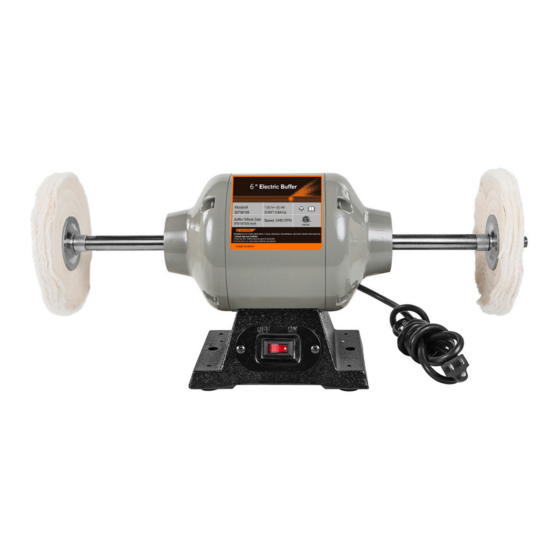

PARTS and OPERATION 1. Arbor Nut 2. Cloth Buffing Wheels 3. Flange 4. Space 1 5. Space 1 6. Base 7. Power Switch MOUNTING THE BUFFER Make sure the workbench on which you plan to mount the buffer is sturdy enough to hold the weight of the machine. -
Page 7: Operation
OPERATION TEST RUN Once mounting is complete and adjustments are done, you are ready to test the machine. before testing, remove the flanges and shaft nuts from the arbor. Facing the machine, the left hand nut has left hand threads and vise versa on the right hand side. - Page 8 OPERATION...
-
Page 9: Buffing Tips
OPERATION BUFFING COMPOUND SELECTION Red Rouge - Made for polishing on brass and gold. Provides an excellent shine when used with the loose muslin buffing wheel. Green (Extra Fine) - Great for extra-fine polishing on most metals to bring out a mirror finish. Works best with loose muslin and spiral sewn buffing wheels. -
Page 10: Specifications
OPERATION Hold the workpiece tightly at all times while buffing. One hand near the contact point will give you better control. Keep buffing wheels raked out before each use and when build-up gets heavy during use. “Raking” means to clean the buffing wheels with a wheel rake to remove build up compounds and metal particles. An old rough-cut saw blade or a large hacksaw blade will also work as an alternative to a wheel rake. -
Page 11: Parts Diagram
PARTS DIAGRAM... -
Page 12: Parts List
PARTS LIST... -
Page 13: Maintenance
MAINTENANCE PLEASE READ THE FOLLOWING CAREFULLY THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.
