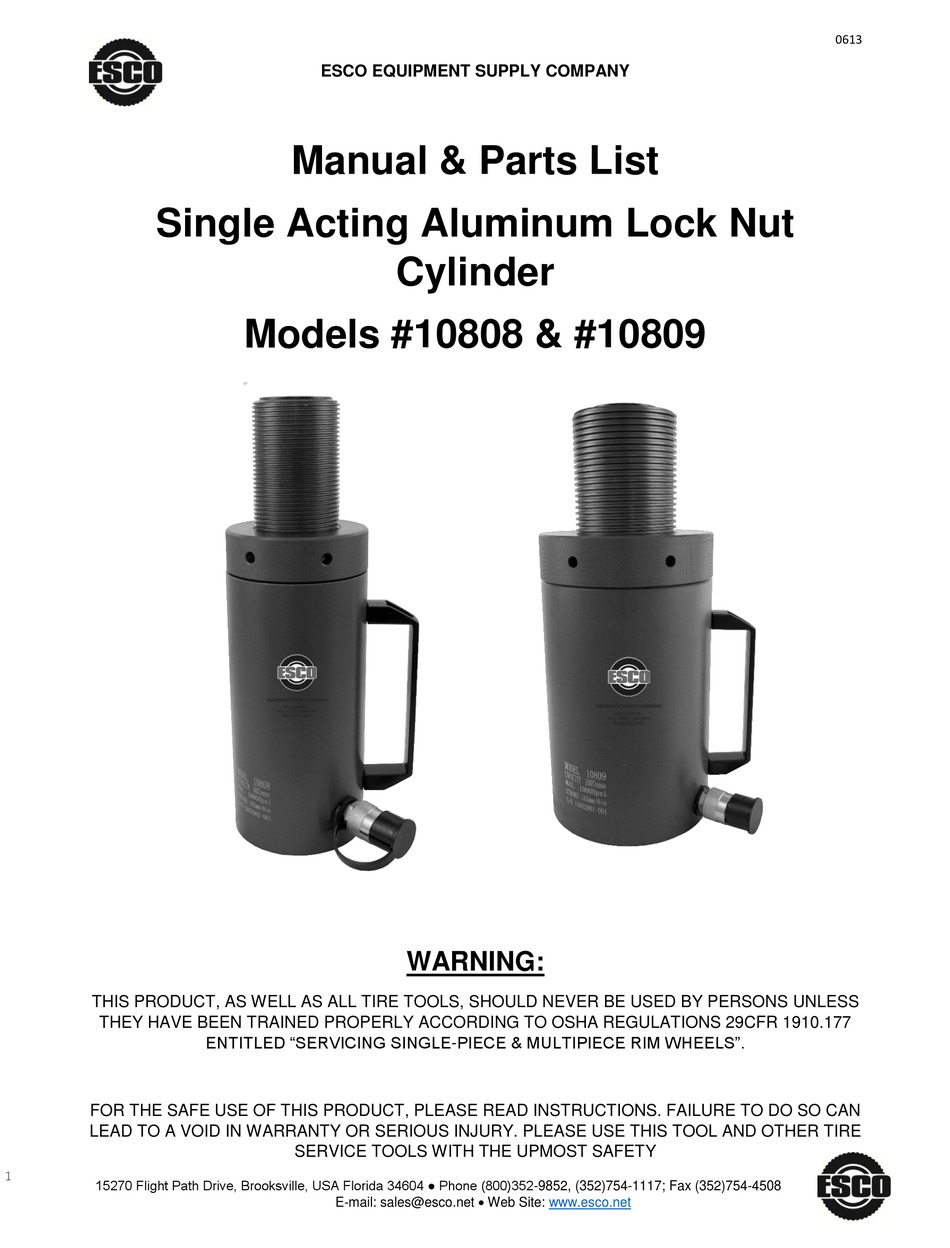

Manual & Parts List
Single Acting Aluminum Lock Nut
Cylinder
Models #10808 & #10809
WARNING:
THIS PRODUCT, AS WELL AS ALL TIRE TOOLS, SHOULD NEVER BE USED BY PERSONS UNLESS
THEY HAVE BEEN TRAINED PROPERLY ACCORDING TO OSHA REGULATIONS 29CFR 1910.177
ENTITLED "SERVICING SINGLE-PIECE & MULTIPIECE RIM WHEELS".
FOR THE SAFE USE OF THIS PRODUCT, PLEASE READ INSTRUCTIONS. FAILURE TO DO SO CAN
LEAD TO A VOID IN WARRANTY OR SERIOUS INJURY. PLEASE USE THIS TOOL AND OTHER TIRE
SERVICE TOOLS WITH THE UPMOST SAFETY
1
15270 Flight Path Drive, Brooksville, USA Florida 34604 ● Phone (800)352-9852, (352)754-1117; Fax (352)754-4508
E-mail: sales@esco.net Web Site:
www.esco.net
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Esco 10808
Summary of Contents for Esco 10808
- Page 1 Manual & Parts List Single Acting Aluminum Lock Nut Cylinder Models #10808 & #10809 WARNING: THIS PRODUCT, AS WELL AS ALL TIRE TOOLS, SHOULD NEVER BE USED BY PERSONS UNLESS THEY HAVE BEEN TRAINED PROPERLY ACCORDING TO OSHA REGULATIONS 29CFR 1910.177 ENTITLED “SERVICING SINGLE-PIECE &...
- Page 2 Carefully inspect cylinder, coupler, hose and hand pump before using hydraulic equipment, if you find any damage, please contact with your nearest Authorized ESCO Service Center or Sales office. Any damage can cause personal injury when you use the cylinder.

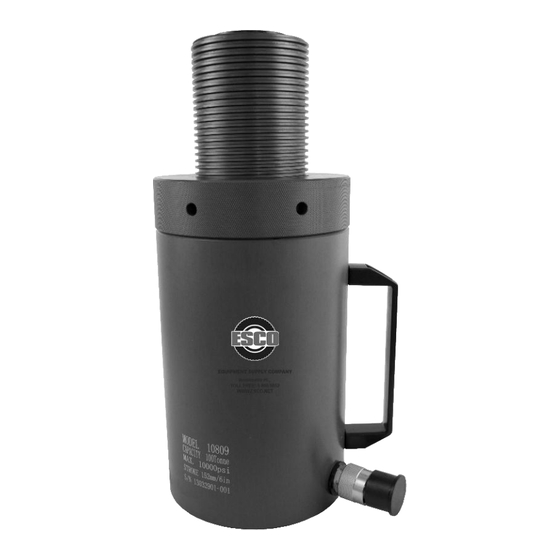

- Page 3 Before load, please fix a saddle into piston rod, saddle will protect the piston rod. DESCRIPTION ESCO Aluminum Lock Nut Cylinders are Single-acting, low weight with a spring return and a stop ring for stroke restriction. ESCO cylinders are provided with a fully threaded piston rod and a safety lock nut for positive load holding operations.
