Summary of Contents for Hulk HU6554

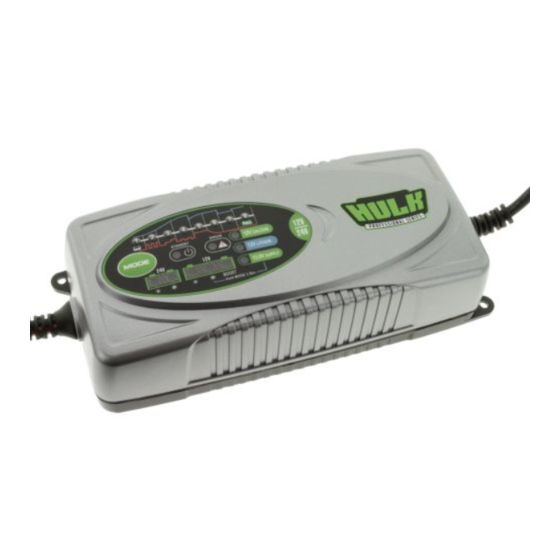

- Page 1 12V/24V Battery Charger HU6554 Charging Current 7.5 Amp Battery Capacity 18-240Ah User Manual Step Charging For Lead Acid / Lithium / Calcium Batteries...
- Page 2 User’s Manual And Guide To Professional Battery Charging • Explosion hazard! A battery being charged could emit explosive gasses. Avoid smoking or open sparks HULK Professional 7.5A Battery Charger is designed or flames in the vicinity of the battery. Explosive and for charging 12V/24V 10-240Ah Lead-Acid rechargeable...
- Page 3 Contents Charging Modes 1) HULK Professional 7.5A Battery Charger Symbol 2) Quick connect battery leads with clamps 3) Quick connect battery leads with eyelet terminals (Ø 6.3mm) with in-line battery protection fuse (10A) for permanent Mode 12V/7.5A This mode is used for WET, MF, VRLA, EFB and GEL batteries.
- Page 4 Operation Charging 1) Charging of a permanently installed battery in a vehicle b) Connect the red clamp or eyelet terminal (“+”) to the positive (“+”) pole of the battery and the black a) Before connecting or disconnecting the battery leads, clamp or eyelet terminal (“-“) to the negative (“-“) pole.
- Page 5 Bulk Charging Time Technical Data Charging Phases HULK Professional 7.5A Battery Charger performs 8-step fully automatic charging cycle. Model 7.5 Amp Battery Size For about 80% Mode Input Voltage AC 220 - 240VAC, 50Hz Charge (hours) (Ah) Output Voltage Nominal: 12V / 24V Input Current 1.33A RMS max...
- Page 6 Trouble Shooting Declaration of Compliance Problem Indication Possible Cause Solution a) Plug in Charger Indicator a) Charger is not plugged in Tested and approved by and conforms to - b) Check AC connections and make sure mains is does lights are b) Poor electrical connection EN 60335-1 switched on...
