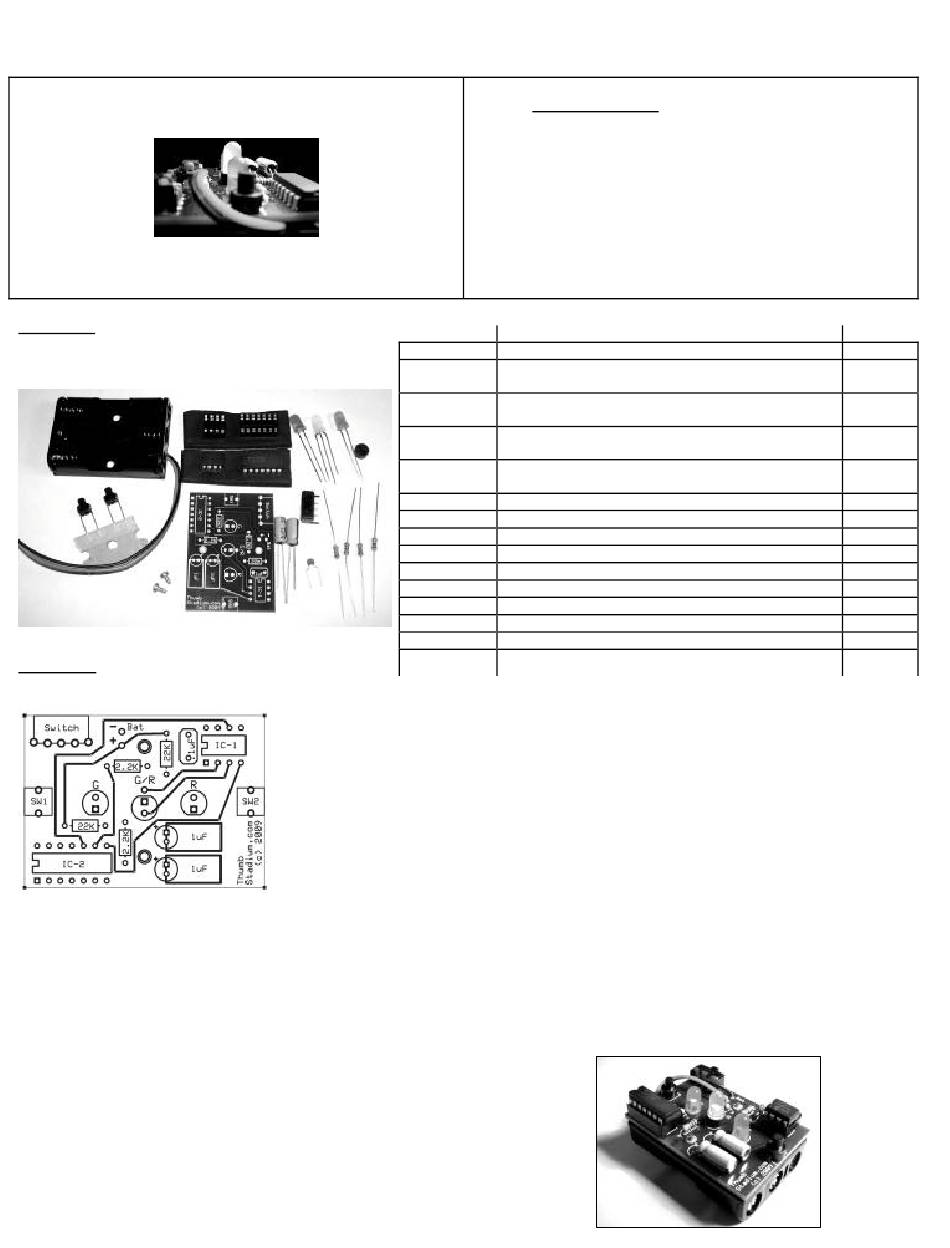

MoltenVoltage Thumb Stadium Quick Start Manual

Thumb Stadium
Thumb Stadium™ is a 2-player hand-held game kit
which features four (4) totally different games of skill.
Easy and fun to build, Thumb Stadium is sure to provide
years of entertainment while teaching you electronics!

Parts List:

Check the contents of your kit against this list:
Assembly:
The top of the circuit board looks like this:
The 1 uF capacitors are polarized, so be sure to put the longer lead in the [+] hole. Leave a little extra lead above the
circuit board so you can bend the capacitor over prior to soldering. Trim all the leads nice and short after soldering.
Trim and strip the leads from the battery pack to the desired length. Cut them so they will wrap fairly tightly around the
edge of the circuit board when the leads are soldered and the battery pack is screwed into place (about 3/4"). Be sure
to leave a little extra wire so you have some to strip, and in case you make a mistake. Once proper operation is
confirmed, remove the batteries and attach the battery holder to the circuit board using the two self-tapping screws. Put
the screws through the battery holder, then screw them into the bottom of the circuit board. Get them good and snug,
but do not over-tighten. Push the battery holder wires flat.
Here is what the finished product should look like:
~
PCB Label
IC-1
IC-2
2.2K
22K
G/R
G/R
R
G
Switch
.1uF
SW1, SW2
1uF
Bat +, -
circles
Assemble the parts in the order they appear in the Parts List, above.
The chips go in the places labeled IC-1 and IC-2. Look for the rounded out bit on top
of the socket and face the sockets the same direction as indicated on the
circuit board. Put the chips in the sockets in the same direction.
Make sure you have the correct value resistors by checking the colored stripes.
The center LED has three leads and is clear plastic. Place the LED leads into the holes
of the standoff (the little black rubber spacer). Next place the LED in the circuit
board, being sure to put the flat edge of the LED facing up, as shown on the circuit
board graphic. Orient the Green and Red LEDs as shown on the PCB by aligning their
flat sides.

Assembly Instructions

What You Need:

~ Soldering Iron
~ Solder
~ Small Philips Screwdriver
~ Wire Snippers
~ Wire Strippers
~ 3 AAA Alkaline Batteries
~ Eye Protection
and a happy state of mind
Item
Circuit Board
8 Pin Socket and Chip ~ PIC Microcontroller
12F629, with Thumb Stadium firmware
14 Pin Socket and Chip ~ 74F14PC Schmitt
Trigger
2.2K ohm 1/4 watt Metal Film Resistor
RED RED BLACK BROWN BROWN
22K ohm 1/4 watt Metal Film Resistor
RED RED BLACK RED BROWN
Black Rubber LED standoff
Dual Color Green/Red Diffused LED (clear lens)
Red Diffused LED
Green Diffused LED
Slide Switch
0.1uF Capacitor (104)
Tactile Switches
1 uF Electrolytic Capacitor
3xAAA Battery Holder - Red is [+], Black is [-]
Battery Pack Screws
Amount
1
1
1
2
2
1
1
1
1
1
1
2
2
1
2
