Pro24.r

Quick Reference Guide

(v2)

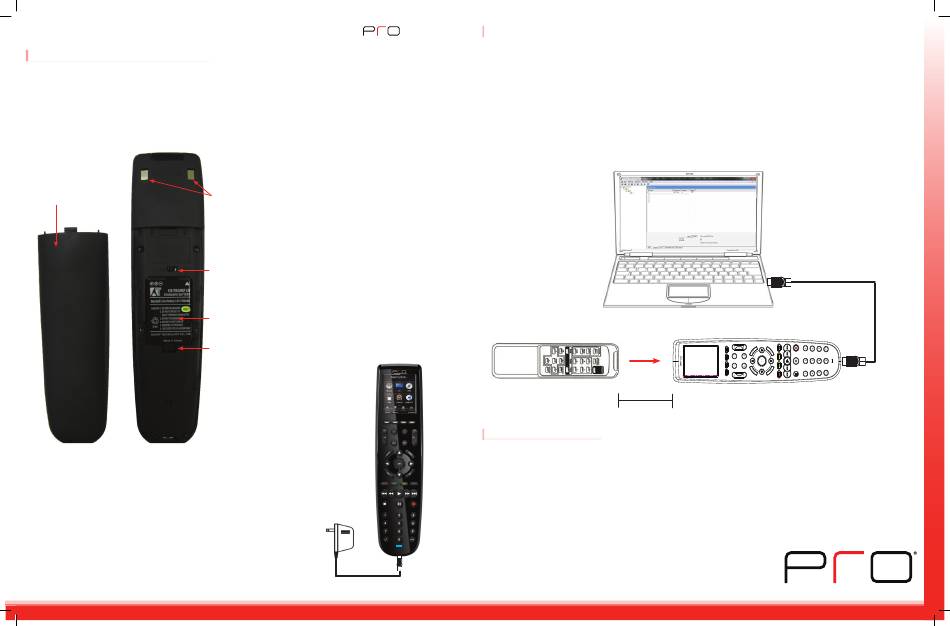

Installing and Recharging the Battery

The Pro24.r (v2) uses a Lithium-Ion rechargeable battery that does not exhibit any type of "Memory Effect" from being charged too often. The

remote features convenient USB recharging capability, giving you even more control over how and where you choose to recharge the remote's

battery.

NOTE: Optional Pro24.dock Charging Dock is available for purchase separately.

The Pro24.r comes equipped with:

• One (1) USB programming cable (USB-A to micro USB-B), 6Ft (2m)

• One (1) Charging cable (5VDC universal AC adapter and cable with integrated micro USB connector), 6Ft (2m)

• Four (4) Interchangeable AC adapter plugs for international applications

Battery Compartment Door

Follow these steps to charge the battery.

The Pro24.r (v2) can be charged using the included charging cable.

NOTE: Please refer to the instructions included with the optional Pro24.dock Charging

Dock.

IMPORTANT NOTES:

• Third-party AC adapter/charging cables may not fit properly and could result

in damage to the unit. Only use the supplied cable.

• Verify the orientation of the USB connector is correct before attempting to

insert it into the remote or damage to the USB port may occur.

1. Insert the micro USB end of the AC Adapter charging cable into the USB port located

on the bottom-side of the remote control unit.

2. Plug the AC Adapter into a wall outlet.

3. The charging LED on the bottom of the unit will flash red while the battery is

charging, and it will remain illuminated when the charging cycle is complete.

To make logo scale correctly

select the logo and go to:

Object>Transform>Scale>Option

s. Then check "Scale strokes and

effects" and click OK.

To make the logo permanently

scaleable on any computer select

the logo and go to:

Object>Expand. Check all avail-

able boxes and click OK.

Follow these steps to install the battery.

1. Remove the access door from the rear of the remote

by sliding it down and off.

Charging Contacts

2. Orient the battery so that the charging contacts point

(For use with

toward the top of the remote, and insert the battery

optional Pro24.dock

into the battery compartment.

Charging Dock)

3. Ensure that the battery's charge contacts are touching

the charging pins inside the battery compartment.

4. Press the battery down into the compartment until it

snaps and locks in place.

5. Turn the unit on by sliding the power switch to the

"ON" position.

6. The battery can be removed by pressing the battery

Power Switch

lock down and lifting the battery out of the battery

compartment.

Lithium-Ion

Battery Pack

Battery Lock

To Wall Outlet

IR Learning

Get more control

The Pro24.r (v2) is capable of capturing infrared codes from original equipment manufacturer remote controls. This IR learning capability is

designed to work together with the Pro Control Studio library manager software.

To capture infrared codes, follow the steps listed below:

1. Connect the Pro24.r to your PC using the provided USB cable.

2. Start the Pro Control Studio software and select Libraries under Controlled Devices.

3. Select IR Library Manager.

4. Add new remote to library - From the upper toolbar, select "Remote." Click "New" and enter the Manufacturer, Type and Model of the

device being captured.

5. Add function names - From the tabs below the main window, click the "Edit" button, type in the name of the function to be learned (e.g.

Power) in the textbox, and click the "Add" button.

5. From the tabs below the main window, click the "Capture" tab.

6. Place the remote control 3 to 5 inches (7cm to 12cm) away from the Pro24.r IR Window.

7. Select the "Align" button, press, and hold any button on the remote control until "Signal" illuminates on the PC's screen. Click the "Learn"

button.

8. Press and hold the button on the remote control matching the selected function until the PC has accepted it.

9. Continue with previous step until all the functions have been learned.

Original Manufacturer Remote Control

Accessing Control Panel

From the Control Panel, you can make adjustments to the operation of the Pro24.r (v2).

Control Panel options:

• Set the backlight level

• Set the backlight timeout

• Turn the tilt switch on/off

• Turn the beep function on/off

• Adjust beeper tone

To access the Pro24.r (v2) Control Panel:

1. Press any of the 4 color buttons for 1 to 2 seconds while sliding the power switch from "OFF" to the "ON" position.

Note: The Control Panel can also be accessed by setting up a "Page Link" on any programmable button.

Micro USB Connector

PC with Pro Control Studio

Library Manager Software

IR Signal

Pro24.r (v2)

3" to 5"

(7cm to 12cm)
