Summary of Contents for Xitrix XPN-DTV5519U

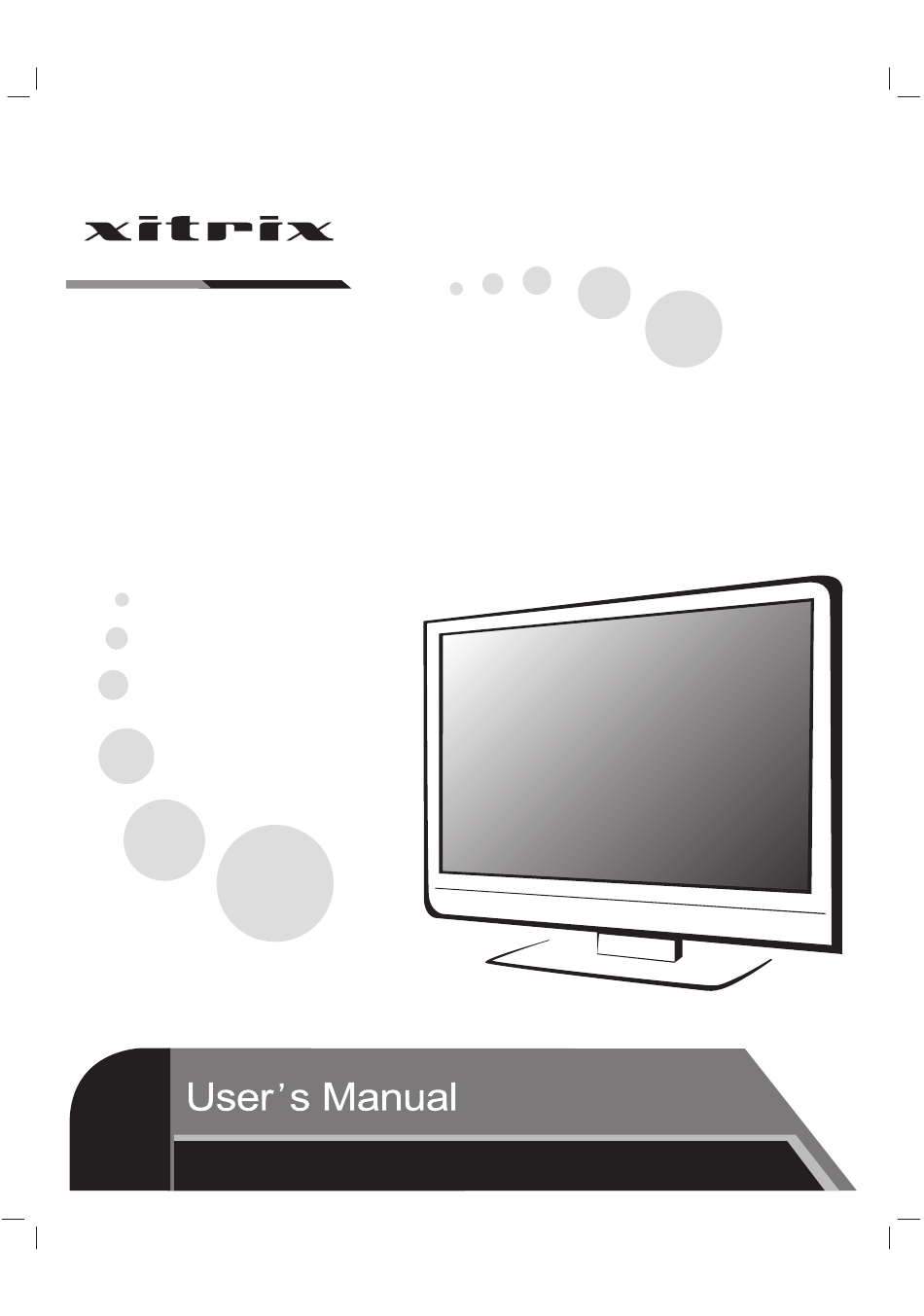

- Page 1 LED TV Please read this manual carefully for proper usage before installation and use. It is recommended to keep this manual properly for future check. The pictures in this manual are only for reference.
-
Page 2: Table Of Contents
Contents Indicate the operations that must be performed Safety Warning and Notice……………………………1 Mounting and Connecting… … … … … … … … … … …3 Under Following Conditions Packing List……………………………………………3 ● Power failure or unstable voltage. Mounting the TV set…………………………………3 ●... - Page 3 Warning Attention ● To adjust the position or angle of the TV set, ● Do not connect too many appliances to please disconnect all wires and move slowly one power strip, or else it may cause fire to avoid falling off. due to high power consumption.
-
Page 4: Mounting And Connecting
Mount on the wall Mounting and Connecting 30cm Obstruct the air circulation Packing list 10cm 10cm 1. The TV set. Wall 2. User Manual. 3. Remote control. 4. Power cord (or attached to TV set). 5. AV transfer cable. 10cm Mounting the TV set Ventilation ●... -
Page 5: Connecting Peripheral Equipment
Connecting peripheral equipment To power socket Remark: (100-240VAC, 60/50Hz) 1. USB interfaces support peripheral equipment, including USB camera, USB mass storage device, USB mouse, keyboard, etc. 2. AV and COMPONENT share same audio input function. 3. When you need to connect the device which support the ARC function, please select the HDMI-1 interface. -
Page 6: Panel Control Keys
Panel Control Keys 1) Power LED indicator and remote receiving window. Power switch(optional): press '' I '' end to turn power on, and press ''O'' end to turn power off. (SOURCE): Press this key to enter the menu to select signal source; during OSD menu operations, press this key to confirm the operation, with the same function as the [OK] key on the remote control. -
Page 7: Remote Control
Remote Control Keys of the Remote Control Keys Function Switch between working and standby Power ( status. SNAPSHOT Capture the screen. MUTE ( Turn on/off the sound. Number keys Select the channel or input numbers. OPTION Display option menu. Decimal point. Home ( Show the home page of smart TV. -
Page 8: Basic Operations
Method for Installation of Remote Control Basic Operations Battery Remove the battery compartment cover and insert two AAA (No. 7, 1.5V) batteries; make sure the polarity Remark: of the batteries is in compliance with the polarity mark 1. The keys operation refers to remote control ''+'' and ''-'' in the battery compartment of the remote operation, for panel control keys operation control. -
Page 9: Program Scanning
2. Press [OK] key to confirm. Tuning, Press [OK] key to enter ATV Manual Tuning 3. Press [▲]/[▼] key to select an item in the menu. menu, Press [▲/[▼] key to select 4. Press [OK] key to enter the submenu. Channel/Frequency, and then press [t ]/[u ] key to... -
Page 10: Instructions For Intelligent Platform Operation
as pressing [ ] key on the remote control. Icon Description Play: Play or set A-B repeat. Language input setting Stop: Stop and quit. Language: In the smart mode, s elect the system Pause: Pause. language. Select Settings > Preferences > Step: Step by step, press [ REC LIST ] key Language, and press [OK] key;... -
Page 11: Network Settings
Select local disk device in the file directory in the Input option of URL. center, and press [OK] key to enter. Select Back in the Menu option of browser. directory, press [OK] key to return to previous folder. Option for viewing bookmark. Select the target folder, press [OK] key to enter the ■... -
Page 12: Important Statement On Network Services
connect to the network . correct password to connect to your network; 2. Select the network which you want to select in 6. You can type a password in the password frame the network list, and press [OK] key; for yourself; 3. -
Page 13: Troubleshooting
3. Consult the network service provider. Troubleshooting ■ Online video play is very slow. 1. Please upgrade your network bandwidth to a ■ Snowflake spots occur in the TV images and higher one. there is noise in accompanying sound. 2. Please try to replace with other addresses to 1. -
Page 14: Technical Specifications
HDMI display mode Technical Specifications Video mode Mode Resolution Refresh rate Master unit 720×480i/p 60Hz Max. Resolution 3840×2160 720×576i/p 50Hz Power Supply 100-240VAC 60/50Hz 50Hz 1280×720p Power Consumption of Speaker 8W+8W 60Hz Operating environment: 50Hz 1920×1080i/p ℃ ℃ Temperature 5 ~40 60Hz 10%~85% 24Hz... -
Page 15: Base Installation Instructions
Base Installation Instructions Put machine flat first, distinguish left and right base and base installation front and back direction, then install base in bottom of machine back cover as arrow direction in figure, align positioning hole column of top base and positioning column hole of bottom of machine back cover, align screw holes, then fasten screws (notice that base module has to be adjusted at figure status, otherwise it cannot be installed in.)
