The Military CYPRES
Quick Guide For Operators
The military CYPRES is available in the following
All models can be adapted with a one or two-pin
1000/35 A
1000/35 indicates that this unit is set to
activate at approximately 1000 ft above
the DZ if the vertical speed is faster than
approximately 35 meters / second
(~ 78 mph)

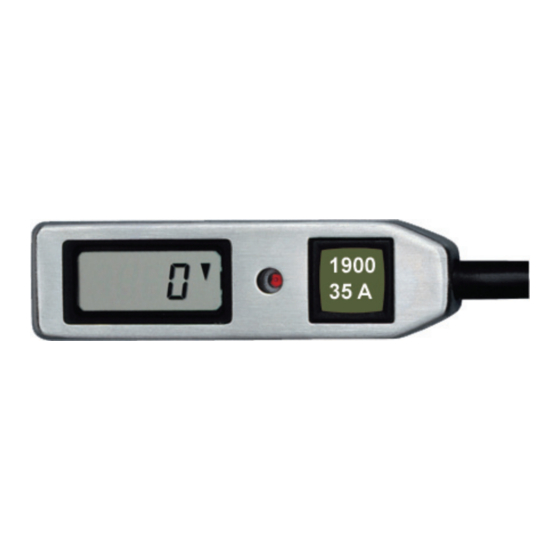

1900/35 A
1900/35 indicates that this unit is set to
activate at approximately 1900 ft above
the DZ if the vertical speed is faster than
approximately 35 meters / second
(~ 78 mph)
The A indicates that all CYPRES work with absolute pressure
For further information's or questions please contact
Airtec GmbH & Co. KG Safety Systems
standard models:
cutter.
1500/35 indicates that this unit is set to
activate at approximately 1500 ft above
the DZ if the vertical speed is faster than
approximately 35 meters / second
(~ 78 mph)
2500/35 indicates that this unit is set to
activate at approximately 2500 ft above
the DZ if the vertical speed is faster than
approximately 35 meters / second
(~ 78 mph)
military@cypres.cc
issue 2017-10
1500/35 A
2500/35 A
Art.No.:14133030
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the CYPRES 2 and is the answer not in the manual?

Questions and answers

Related Manuals for Airtec CYPRES 2

Summary of Contents for Airtec CYPRES 2

  • Page 1 35 meters / second approximately 35 meters / second (~ 78 mph) (~ 78 mph) The A indicates that all CYPRES work with absolute pressure For further information's or questions please contact military@cypres.cc Airtec GmbH & Co. KG Safety Systems issue 2017-10 Art.No.:14133030...
  • Page 2 This feature increases the chance of unwanted activation's inside the airplane The A indicates that all CYPRES work with absolute pressure For further information's or questions please contact military@cypres.cc Airtec GmbH & Co. KG Safety Systems issue 2017-10 Art.No.:14133030...

  • Page 3: Application Modes

    / elevation. No flight counter available in Flight counter available on Operation Mode. Training Mode flights only. HALO HAHO Landing Take OFF / Landing Take OFF Airtec GmbH & Co. KG Safety Systems issue 2017-10 Art.No.:14133030...
  • Page 4 (keep the button pressed) release the button LED flash LED ON LED OFF next indication / action indication sequence ends with continues from „10“ to „0“ e.g. calculation examples in blue Airtec GmbH & Co. KG Safety Systems issue 2017-10 Art.No.:14133030...
  • Page 5 OK unit switched ON IMPORTANT: watch the complete „count down“ until you see 0 ▼ Additional information possible between “1” and “0 ▼ “ (displayed on page 15 + 16) Airtec GmbH & Co. KG Safety Systems issue 2017-10 Art.No.:14133030...

  • Page 6: Unit Information

    Unit Information switch ON 1) flight counter 2) serial number 3) next maintenance 4) revision number 10 15 19 25 5) mode setting (on changeable Mode only) Airtec GmbH & Co. KG Safety Systems issue 2017-10 Art.No.:14133030...

  • Page 7: Changing The Mode

    - click your new choice then the CYPRES will switch itself OFF. the change is not completed yet! you have to repeat the entire procedure once more to complete and fix the mode change. Airtec GmbH & Co. KG Safety Systems issue 2017-10 Art.No.:14133030...
  • Page 8 Additional information possible between “1” and “0” (displayed on the last 2 pages) Airtec GmbH & Co. KG Safety Systems issue 2017-10 Art.No.:14133030...
  • Page 9 4 seconds it is possible to restart setting procedure by holding the button if you missed the correct number, just keep holding the button until the number appears again. Airtec GmbH & Co. KG Safety Systems issue 2017-10 Art.No.:14133030...
  • Page 10 – (if target is lower) enter difference in feet (meters) between Take OFF location and Target DZ. e.g. press „feet“ (meters) display shows hPa of Target DZ enter value into the Military CYPRES Airtec GmbH & Co. KG Safety Systems issue 2017-10 Art.No.:14133030...
  • Page 11 (meter) press hPa display shows hPa of Target DZ (only an estimation as this pressure value does not accommodate local weather variations) enter value into the Military CYPRES Airtec GmbH & Co. KG Safety Systems issue 2017-10 Art.No.:14133030...
  • Page 12 “+” or “-“ enter elevation of Target DZ above/below MSL e.g. press feet / meter display shows hPa of Target DZ enter value into the Military CYPRES Airtec GmbH & Co. KG Safety Systems issue 2017-10 Art.No.:14133030...
  • Page 13 Stay below the vertical activation speed inside the activation ● window; 6900 ft/min (35 m/s) or 5700 ft/min (29 m/s) if you are descending with the aircraft. Can also be simulated by changing the cabin air pressure. Airtec GmbH & Co. KG Safety Systems issue 2017-10 Art.No.:14133030...

  • Page 14: Important Notes For Users

    If the Military CYPRES is used in Operation Mode, the above mentioned limitations do not apply. The CYPRES 2 is waterproof (in fresh and salt water) for - 15 ft for up ● to 15 minutes; - 8 ft for up to 24 hours After contact with water, CYPRES must be switched OFF after exiting ●...
  • Page 15 (09/2022) displayed for 5 seconds starting 15,5 years after date of manufacture (age) end of service life time. start appearing within the last month. displayed for 5 seconds Airtec GmbH & Co. KG Safety Systems issue 2017-10 Art.No.:14133030...
  • Page 16 If unit does not switch OFF after 14 h, or another code is shown on display, or if there is no red light, do not use the CYPRES and contact Airtec military@cypres.cc or SSK info@sskinc.com before further use Airtec GmbH & Co. KG Safety Systems issue 2017-10 Art.No.:14133030...
