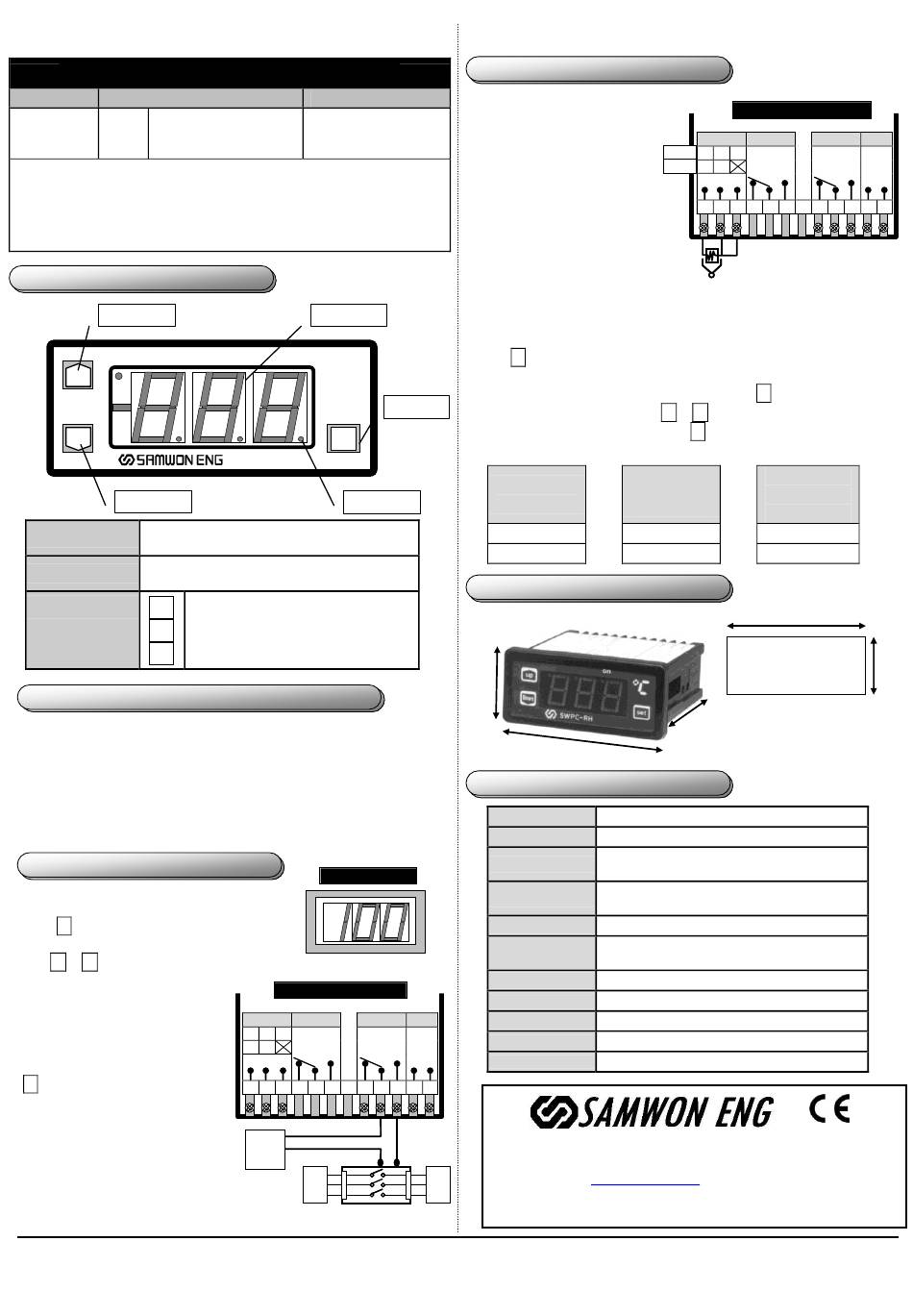

Samwon ENG SU-105 IP User Manual

Automatic Temperature Controller SU-105 User Manual
Model Temperature range
IC (-50.0℃~150℃)
SU-105 IP
※ Thank you for purchasing a SamWon ENG CO.,LTD
product. This manual contains the information on how
to use the product. Keep it in a safe place and refer to it
whenever necessary.

1. Description of display

Up key
up
dn
Down Key
Displays a current temperature or user-set
Display Unit
temperature
Indicates the main or auxiliary output is
Main/Aux Output
ON or OFF
set
Set key
up
Up key
dn
Down key

2.Capability and applications of the product

▶Power controller for heaters and coolers
Hysteresis 0.0~9.9 degree C., 0~240 second delay timer, Normal/Reverse selection.
▶Contains a digital timer to control defrosting. Range: 1~999 minute.
▶User configuration control
˚You can specify a valid temperature range that a user is allowed to use.
˚You can prevent a user from changing the setting of hysteresis, delay time,
and normal/reverse.

3.How to set main output

▶Turn on the power and wait until the current
temperature appears on the display.
▶Press set key once and notice
the display unit blinks.
▶Use Up or Dn key to change the setting.
If you hold down a key for longer than
4 seconds, the number will increase or
decrease rapidly.
Note: The selectable range might be
limited by User configuration control.
▶Store the setting in memory by pressing
set key for longer than 5 seconds.
▶The unit show the current temperature
and start working.
▶The main output uses terminal 7 ~ 9.
Note: For information on Auxiliary
output (Alarm/Timer), refer to Section
13. How to set Alarm Output.
SAMWON ENG CO.,LTD
Output
Main/Aux(DC12V)
Main/Aux(Relay)
Display Unit
℃
set
on
Main Output
Setting button
Increment button
Decrement button
<Display Current>
<Main Output Terminal>
Sensor Aux output Main output Power
RELAY
B W sh
3A
R,W B
① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪
AC
220V
Coil
Mac 작동
기계 hine
Magnet
SU-105 Controller User Manual

4. How to connect sensors

① How to connect sensors
▶When connecting sensors, use the
following figure. If you connect the
lines incorrectly or a different type
of sensors, the display unit will
show 'Err'.
② Sensor line extension
▶A Pt100 sensor line can be extended
up to 100 M.
▶An IC/Humidity sensor line can be
extended up to 500 M.
▶You MUST use a shielded line to prevent
the noise when extending a line.
③ Sensor input correction (when current temperature is incorrect)
▶Press set key for longer than 5 seconds, when the display unit shows a current
temperature
▶Release the key when you see diF. Select rSt by pressing set key.
Set key
▶Select a correction temperature using Up or Dn key.
▶Store the setting in memory by pressing the set key for longer than 5 seconds.
For example,
Current
temperature
20.0 ℃
20.0 ℃
5.External dimension
34
6.Product specification
Voltage
Power
Input Sensor
Accuracy
Hysteresis
Control output
Control operation
Setting Methode
Etc.
RELAY AC
Environment Temperature
3A 220V
Environment humidity
Head Office and Factory : #703-4 Hwamokdong Gimhae Gyoungnam, South Korea
Homepage :
메인 Pow
전원 er
Sensor
IC/HUM
B
Ca-K
R/W
① ② ③ ④ ⑤ ⑥
A
+ -
TC
rSt corrected
temperature
+ -5.0 ℃
+ 10.0 ℃
70
76
AC220V (50/60Hz) ±10% (AC110V,option)
5VA or less
K(CA) with a load/line of 100Ω or less
PT100Ω with a load/line of 5Ω or less
K(CA):display the value ±0.5% +1digit
Pt100:display the value ±0.2% +1digit
0.1℃ ~ 9.9℃
Relay Output:AC250V 5A
Relay life time:300,000 or grater
ON/OFF Control
Digital Methode with Up or Down key
Sensor input correcti o n,Delay timer,Normal/Reverse selection,Defrosti n g Timer
0℃ ~ 50℃
85% RH or less
Phone : 82-055-321-3030/1
http://31eng.co.kr/ E-mail : 31eng@paran.com
In Pursuit of Perfect Production for Customer Service Excellence.
Page 1/3
<Rear panel terminal>
Aux output Main output Power
RELAY RELAY AC
W sh
3A 3A 220V
B
⑦ ⑧ ⑨ ⑩ ⑪
B B'
①White②Black③Black
RTD
①Red/White ②Shield/Black
Displayed
current
temperature
= 15.0 ℃
= 30.0 ℃
70
PANEL CUT OUT
28
(unit: mm)
Fax : 321-3060
