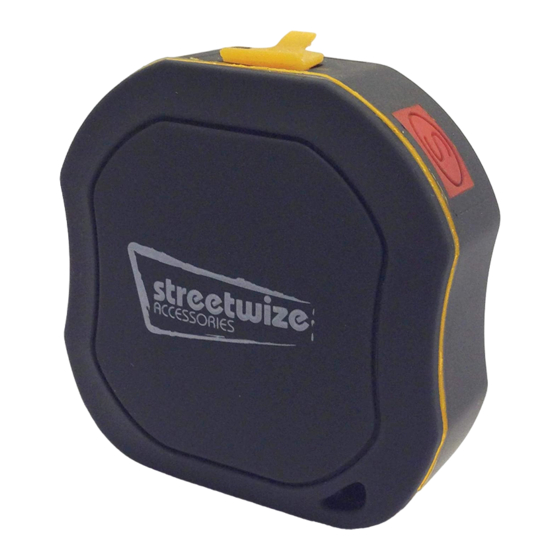

GPS Tracker
SWTRACK1
Information For Use
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SWTRACK1 and is the answer not in the manual?

Questions and answers

Related Manuals for Streetwize SWTRACK1

Summary of Contents for Streetwize SWTRACK1

  • Page 1 GPS Tracker SWTRACK1 Information For Use...

  • Page 2: Table Of Contents

    Manual Contents Intention For Use Product Elements GPS Tracker Components LED Indicator Definitions GPRS LED Indication (Green LED) GPS/Battery Level (Blue/RED LED) Installing the SIM Card Using The 1P Mobile SIM SMS Tracking Set Up Using The TKStar GPS Smartphone App Configuring the APN Settings Search For Your Network’s APN Info Syncing the APN Information To The GPS Tracker...
  • Page 3 SMS Commands SMS Tracking Assigning Administrator (Setting an Authorised Number) Movement Activated Setting the Time Zone Resetting The Device Using the GPS Tracker’s SOS Feature Assigning an SOS Contact Using the SOS Feature Troubleshooting Hard Resetting Product / Technical Support SMS Command Glossary Technical Specification Declarations of Conformity...

  • Page 4: Intention For Use

    Intention For Use Thank you for purchasing the Streetwize GPS Tracker. This product is intended to help you track the location of your vehicle, which includes cars, motorcycles, caravans and vans directly to your smartphone. It is ideal for helping you track and find your vehicle if your vehicle is lost or stolen.

  • Page 5: Gps Tracker Components

    GPS Tracker Components Micro USB Hard On / Green Blue Hard Reset On / Off Button Micro USB Socket Turns GPS Tracker on / off. For connecting the supplied 5V USB cable for charging the device. And SOS Button for connecting the supplied 12V USB Send an emergency SOS message to battery connector cable.

  • Page 6: Installing The Sim Card

    Installing The Sim Card This device comes supplied with a 1P Mobile data-enabled SIM that is currently eligible to work in over 46 countries (excluding ROI). Please see 1P Mobile website for a full list of eligible countries. If you decide to use another SIM, you need to set up the APN settings (see Configuring APN Settings).

  • Page 7: Using The 1P Mobile Sim

    Using The 1P Mobile SIM Your Streetwize GPS tracker has been pre-installed or supplied with a SIM card from 1pMobile, the UK’s cheapest Pay As You Go mobile provider* The SIM is live and has a small amount of credit available for you to set up and configure your tracker.
  • Page 8 Note: the ‘123456’ is the device’s PIN code. 3. The Tracker should respond by saying: ‘admin ok’ 4. As default, this GPS Tracker is set to Movement Activated, which means this device will automatically turn off when the vehicle is stationary for 5 minutes and it will go into Sleep mode.

  • Page 9: Using The Tkstar Gps Smartphone App

    Figure 2 Figure 3 Setting The TKStar GPS Smartphone App You can use the Streetwize GPS Tracker via the TKStar GPS smartphone app where you can access a whole host of features, in particularly the Real-Time location tracking and Geo-Fencing.

  • Page 10: Search For Your Network's Apn Info

    To do this, you first have to search for your network’s APN settings, then you need to have to sync this information to your GPS tracker. Search For Your Network’s APN Info To set the APN, first you would need the following from your network provider*: •...
  • Page 11 3. Then enter the password by sending SMS command: ‘Apnpasswd123456_[APN password of the network service provider for tracker’s SIM]’. You should receive a response saying ‘apnpasswd ok’. Please note the spelling of password in the above SMS command. 4. Then, we need to ensure the GPRS is enabled so the SIM card inside the tracker can start to use its data.

  • Page 12: Logging Into The Tkstar Gps Application

    Logging Into The TKStar GPS Application After installing the TKStar GPS app on your phone, open the app and select the option to log in with IMEI/ID. Here, you need to enter IMEI/ID, the server address and password. For the ID, this can be found on the base of the tracker and will start with ‘41’. For server address, change it to www.mytkstar.net.
  • Page 13 Then insert the password. The password for this tracker is set to 123456. This can be changed once you have logged in. When you have logged in, you will be taken to the Home Screen (see Figure 6). Figure 6...

  • Page 14: Tkstar Gps Features

    If you like further information and support on how to use the app, please contact Streetwize’s support team on support@streetwizeaccessories.com. Real-Time Live Tracking Through the TKStar GPS application, you can get an instant live location of the tracker’s device.
  • Page 15 3. Assign a name for the GeoFence, 5. Once radius is set, tap the ‘Save’ and tap the ‘Radius’ box. icon on the top-right of the screen. 4. When tapping the ‘Radius’ box, you will be taken to a Google Map with the tracker’s location.

  • Page 16: Powering The Gps Tracker

    Powering the GPS Tracker The GPS tracker can be powered via it’s built-in rechargeable battery or directly by your vehicle’s battery. When battery level is below 20%, you will receive an SMS message indicating low battery. Rechargeable Battery To recharge the battery on the device, simply connect the device to a power source using the supplied 5V USB charging cable.
  • Page 17 1. Before installing, your vehicle should be fully switched off. 2. Open your vehicle’s bonnet and locate the battery compartment, removing any outer casing if there is one. 3. With a suitable socket wrench, remove the bolts that are connecting the vehicle’s battery cable to the battery.
  • Page 18 Figure 9 5. Then connect Tracker’s connecting cables as shown in Figure 9. Then, secure the vehicle’s battery cables back to its respective battery terminals. 6. Once the connection to the vehicle’s battery has been secured, connect the tracker to the other end (USB-end) of the cable. 7.

  • Page 19: Sms Commands

    SMS Commands SMS Tracking This command is for getting the location of the GPS tracker. Simply send the command ‘G123456#’ as an SMS message to the tracker. The response will contain a link to a Google Map of the tracker’s location. Assigning Administrator (Setting an Authorised Number) This command enables you to set an authorised number as an administrator.

  • Page 20: Setting The Time Zone

    To turn off Movement Activated, send the command ‘Sleep123456_off’ to the GPS Tracker. You will receive a response saying “Sleep off ok’ to confirm that movement activated feature has been turned off Setting The Time Zone This command is for when you are travelling abroad with this GPS Tracker and and you want to get a timestamp of when you received the message based on your geographical location.

  • Page 21: Using The Gps Tracker's Sos Feature

    When you soft reset the device, you will have to go through the initial set up again. Using the GPS Tracker’s SOS Feature This GPS Tracker comes with an SOS feature that allows you to send an alert message to an assigned contact asking for help. This feature is suitable for children or any other emergency situations.

  • Page 22: Troubleshooting

    Troubleshooting Issue Cause / Solution Tracker Not Responding If the SIM card installed in the tracker is on a pay as you go plan, please ensure that it has sufficient credit on it. If the tracker is not responding to messages, please check that the phone number of the SIM card in the tracker is correct.

  • Page 23: Product / Technical Support

    To get support, please screenshot this message, send it to our technical team on support@streewizeaccessories.com with the subject line: SWTRACK1 Product Support. See example below. Our technical team will look into it and provide you with a solution to your...

  • Page 24: Sms Command Glossary

    SMS Command Glossary Issue Cause / Solution Tracker Not Responding G123456# Assign Administrator Admin123456_[your mobile number] Movement Activated Sleep123456_shock Sleep Mode Off Sleep123456_off Rebooting Device Begin123456 Time Zone Timezone123456_[timezone] Assign SOS Contact SOS123456_[number of contact] Apn123456_[APN of the network service provider for tracker’s sim] APN User Apnuser123456_[APN user of the network service provider for tracker’s...

  • Page 25: Technical Specification

    Technical Specification Technical Specification Input DC 5V 1.0A Battery DC 3.7V 5000mAh Pressure 86-106KPa GPRS Class Receive Frequency 1575MHz Operating Temperature Range -20˚C to 45˚C Support Band GSM 900 (EU Band), GSM 850 (U.S. Band), DCS 1800 (EU Band), PCS 1900 (U.S.

  • Page 26: Declarations Of Conformity

    BS EN 55024:2010+A1:2015 BS EN 61000-3-2:2014 BS EN 61000-3-3:2013 BS EN 60950-1:2006+A11:200 9+A1:2010+A12:2011:+A2:2013 Signed for and on behalf of: The Ace Supply Company Ltd T/A Streetwize Accessories Place of Issue: Manchester Date of Issue: 19/10/2020 Name: Lesley Cooper Position: QC Manager...
  • Page 27 EN 55032:2015:2013 EN 55024:2010+A1:2015 EN 61000-3-2:2014 EN 61000-3-3:2013 EN 60950-1:2006+A11:200 9+A1:2010+A12:2011:+A2:2013 Signed for and on behalf of: The Ace Supply Company Ltd T/A Streetwize Accessories Place of Issue: Manchester Date of Issue: 19/10/2020 Name: Lesley Cooper Position: QC Manager Signature:...
  • Page 28 Streetwize: Ashburton Road West, Trafford Park, Manchester, M17 1RY For Product Support: For Trade Enquiries: E: support@streetwizeaccessories.com E: sales@streetwizeaccessories.com T: +44 (0)161 447 8597 T: +44 (0)161 447 8580 www.streetwizeaccessories.com EU Registered Address: Ace Supply Co (Europe) Ltd. 25 Herbert Place, Dublin 2, D02 A098 Republic of Ireland.
