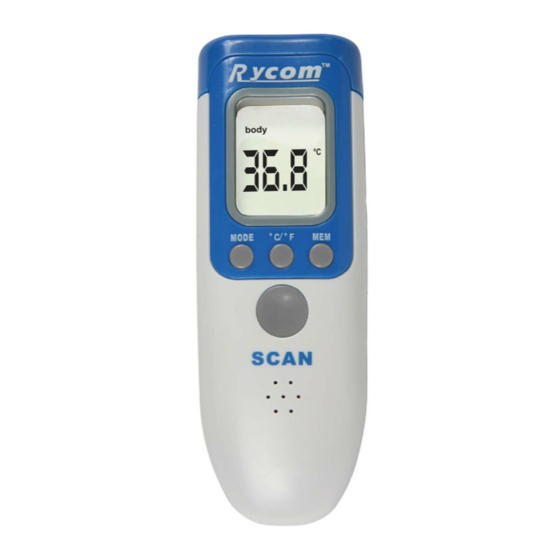

- Page 1 Professional Non-Contact Thermometer...
-
Page 2: Additional Uses
FEATURES 1. The Non-Contact Professional Thermometer is specifically designed to take the body temperature of humans regardless of room temperature. 2. Unit can scan temperatures reliably in less than 1 second due to the unique, infrared detection system. 3. Target finder LED design to accurately and quickly measure patient’s temperature. - Page 3 It is essential to use the Non-Contact Professional Thermometer in the way it was intended. You are therefore advised to read this instruction manual and the safety precautions carefully before use. Utilizing the Non-Contact Professional Thermometer in any way other than depicted in this manual may void the warranty of your unit.
-
Page 4: The Different Methods Of Temperature Measurement
THE DIFFERENT METHODS OF TEMPERATURE MEASUREMENT Core Temperature Core temperature is the most precise measurement and involves measuring the temperature in the pulmonary artery by means of a catheter equipped with a thermal probe, which can read the temperature in situ. The same method is employed for probes measuring the esophageal temperature. -
Page 5: Advantages Of Temporal Artery (Ta) Temperature
ADVANTAGES OF TEMPORAL ARTERY (TA) TEMPERATURE Infrared arterial temperature can be measured using a device placed on the forehead, in the temporal artery region. It has been demonstrated that this relatively new method of measuring temperature is more precise than tympanic thermometry and better tolerated than rectal thermometry. -
Page 6: How To Take A Temperature
HOW TO TAKE A TEMPERATURE Aim at the FOREHEAD, over the right eye*, holding the unit approximately 2 inches (5 cm) from the body. Activate the thermometer’s target finding feature, two red dots will appear on the patient’s forehead. Move the thermometer gradually towards the patient until only one red dot is visible –... -
Page 7: Initial Set-Up Instructions

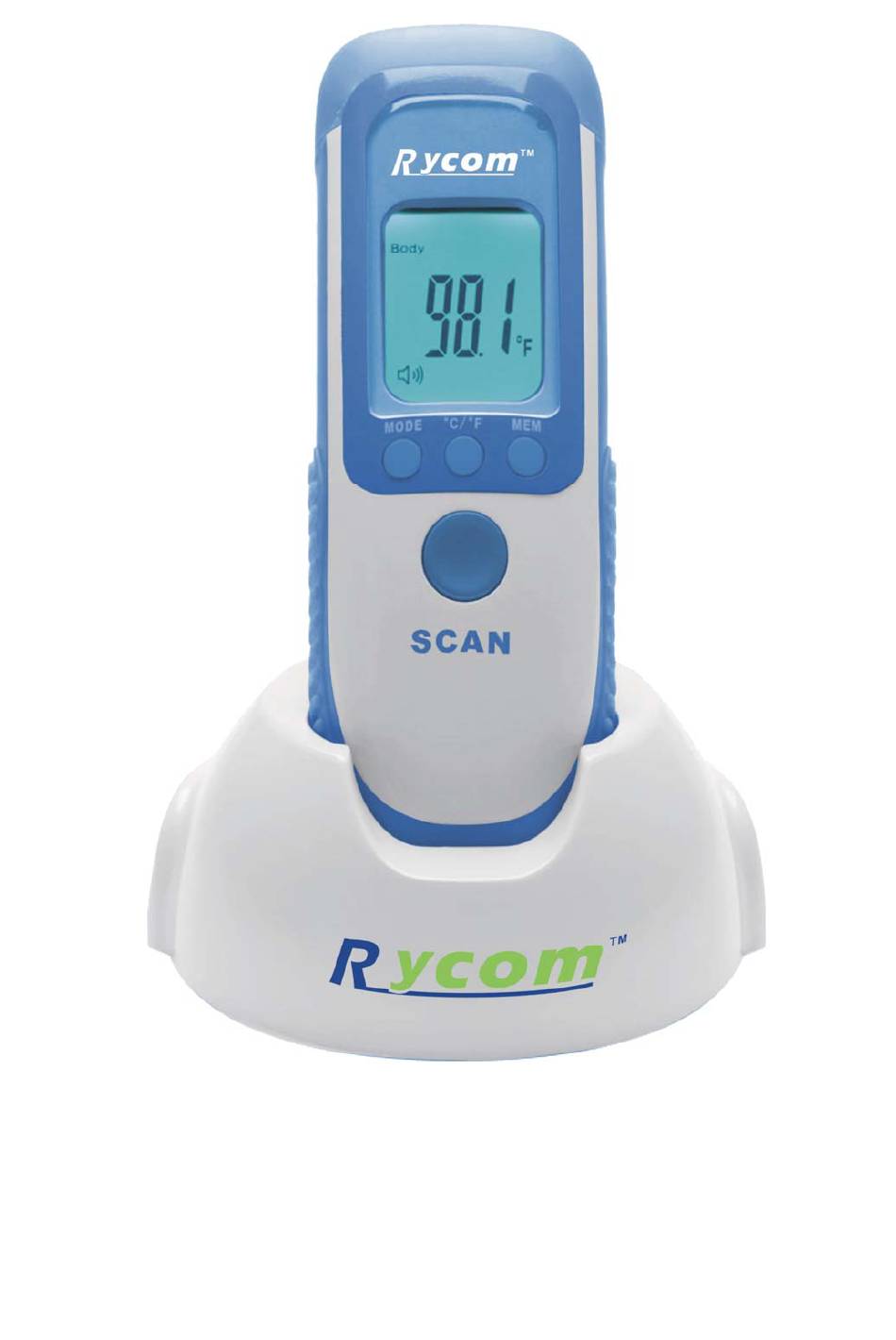

INITIAL SET-UP INSTRUCTIONS 1. Remove the Charging Cradle, USB Power Cord and AC Adaptor from packaging. 2. Plug the USB Power Cord into Charging Cradle and into the AC Adaptor. Plug the AC Adaptor into a power outlet. The unit is designed for 110-volt power ONLY. 3. - Page 8 CONFIGURATION AND FUNCTION OF MENU 1. Setting the mode a. Press Mode button, and the screen will display: Body...°F b. Press again and the screen will display: Surface Temp...°F c. Press again and the screen will display: Room...°F Note: The thermometer default is set to BODY mode 2.
-
Page 9: Technical Specifications
CONFIGURATION AND FUNCTION OF MENU High Temperature Alert / Alarm The factory default alert for the High Temperature Alert / Alarm is set at 100.4°F for the Body setting. In the event a temperature is scanned at 100.4°F or above, the device will beep five times to alert the user. - Page 10 TECHNICAL SPECIFICATIONS Rechargeable Base In: Voltage AC 100~240V – 50~60Hz Out: DC 5V 500mA Dimensions: 300mm(L)x200mm(W)x87mm(H) Weight: 0.92kg NON-CONTACT PROFFESIONAL THERMOMETER PRECISION The Non-Contact Professional Thermometer can take temperature readings below 90°F or above 109°F (32°C to 42.9°C) but accuracy is not guaranteed outside of this range.
-
Page 11: Troubleshooting
TROUBLESHOOTING If you have problems while using your thermometer, please refer to this guide to help resolve the problem. If the problem persists, please contact our customer service department at: THE SCREEN DISPLAYS TEMPERATURE LOWER THAN 89.6°F (32°C): To take the surface temperature, press the Mode button and set the reading to “Body.” If the device is set to the “Surface Temp”...
