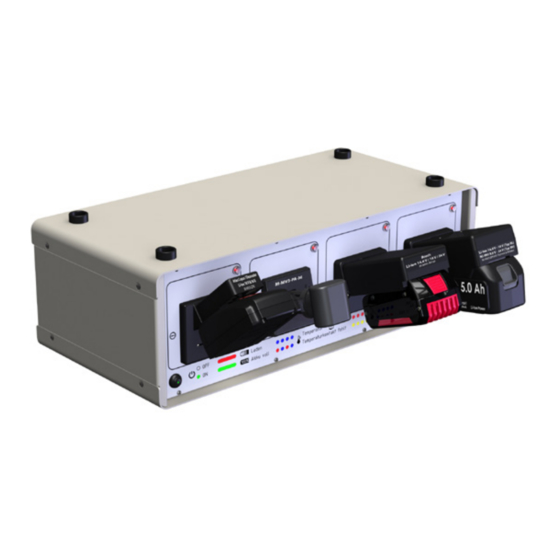

HS-Technik HST-MV3-02 Operating Instructions Manual
  1. Manuals
  2. Brands
  3. HS-Technik Manuals
  4. Battery Charger
  5. HST-MV3-02
  6. Operating instructions manual

HS-Technik HST-MV3-02 Operating Instructions Manual

Hide thumbs Also See for HST-MV3-02:
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATING INSTRUCTIONS
NOTE
In case of doubt, the original German version
of the operating instructions applies.
HST-MV3
- Original operating instructions -
Charging station
HST-MV3-02 / -04 / -04W
Issue date:
PC software
Firmware:
June 2021
2.0.2.25 and higher
1.0.1.5 and higher

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HST-MV3-02 and is the answer not in the manual?

Questions and answers

Related Manuals for HS-Technik HST-MV3-02

Summary of Contents for HS-Technik HST-MV3-02

  • Page 1 OPERATING INSTRUCTIONS HST-MV3 - Original operating instructions - Charging station HST-MV3-02 / -04 / -04W NOTE Issue date: June 2021 In case of doubt, the original German version PC software 2.0.2.25 and higher of the operating instructions applies. Firmware: 1.0.1.5 and higher...

  • Page 2: Table Of Contents

    Table of contents 1 Operating principles Scope of delivery General information Structure of the warnings Intended use Improper use FCC compliance Guarantee and liability Copyright 2 Basic safety instructions Notices in the operating instructions Operator‘s responsibility 2.2.1 Personnel‘s responsibility 2.2.2 Personnel training Risks when working with the charging station Danger from electrical energy...
  • Page 3 6 Drawings 4-bay charger station row form (HST-MV3-04) 4-bay charger station cube form (HST-MV3-04W) 2-bay charger station (HST-MV3-02) 7 Spare parts list CE Declaration of conformity - 3 -...

  • Page 4: Operating Principles

    1 Operating principles Dear customers, thank you for choosing a HS-Technik GmbH product. This quality product „Made in Germany“ fulfils the highest requirements with regard to performance, quality and accuracy. When used correctly the product will undoubtedly perform very well for many years.

  • Page 5: Structure Of The Warnings

    This operating instructions must be read and applied by every person who is assigned to conduct work using this charger. In addition to these operation instructions the applicable regulations on accident prevention and environmental protection should be observed. NOTE After reading, keep the operating instructions in a place accessible to every operator.

  • Page 6: Intended Use

    Intended use also includes • following all indications of the operating instructions and • observance of inspection and maintenance works. Any other use or use beyond that is considered improper use. HS-Technik GmbH is not liable for any damage resulting from this. NOTE These charging stations are solely suitable for charging Ni-Cd, Ni-MH and Li- Ion batteries (nominal voltage 3.6 - 43.2 V).

  • Page 7: Guarantee And Liability

    a commercial environment. This equipment generates, uses, and can radiate radio fre- quency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

  • Page 8: Copyright

    These operating instructions are intended solely for the operator and its personnel. They contain guidelines and information which may not be fully, or partially • reproduced • distributed or • otherwise shared. The copyright of these operating instructions is retained by HS-Technik GmbH. Manufacturer’s address: Im Martelacker 12 D-79588 Efringen-Kirchen Telephone:...

  • Page 9: Basic Safety Instructions

    2 Basic safety instructions Notices in the operating instructions The basic requirement for safe and proper use and fault-free operation is knowledge of the basic safety instructions and safety regulations. In addition, the rules and regulations for the place of use must be followed. Operator‘s responsibility The operator is obligated to only allow persons to work with this charging station who are familiar with the basic regulations for work safety and accident prevention and are...

  • Page 10: Danger From Electrical Energy

    WARNING The charging station was built in accordance with the state of the art in technology and the approved safety regulations. Still, when using it, risks to life and limb of the user or third parties can arise. WARNING Only use the charging station •...

  • Page 11: Electrical Safety

    Keep the charging station away from heat, oil, sharp edges or moving device parts. Service NOTE Only allow your charging station to be repaired by a qualified technician using only original replacement parts, available from HS-Technik GmbH. This ensures that the safety of your device is maintained. Lithium-ion battery NOTE...
  • Page 12 e) Recharge the lithium-ion batteries immediately and never store them when empty. If the battery is stored while disconnected from the tool and the charger, it will maintain a constant capacity over a long period of time. (Loss approx. 5 % per year) Do not subject the lithium-ion battery to high temperatures (+ 50°C) or direct sunlight.

  • Page 13: Cleaning And Disposal

    Cleaning and disposal Substances and materials used must be handled and disposed of properly, particularly when cleaning with solvents. Disposal Power tools, batteries, accessories and packaging must be disposed of at an environmentally-compatible recycling facility. Power tools and batteries do not go into the household trash.

  • Page 14: Set-Up

    2.10 Set-up The charging station is only suitable for operation in a dry room. All ventilation slits must be unobstructed. If possible, set up the charging station up away from heaters and sun radiation as an ambient temperature of more than 35° C can result in significantly longer charging times.

  • Page 15: Structure

    1. Casing 2. Status LED charger compartment 3. Battery adapter 4. Wake-up button 5. LED signal description Versions HST-MV3-04 HST-MV3-02 HST-MV3-04W 4-bay charger station 2-bay charger station 4-bay charger station row form cube form Battery charger station excl. battery adapters.

  • Page 16: Start-Up And Use

    • Suitable for Ni-Cd, Ni-MH and Li-Ion batteries • With PFC (Power Factor Control) All common battery types from 3.6 - 43.2 V nominal voltage such as Atlas-Copco, Bosch, Fein, Makita, Panasonic, Desoutter, HS-Technik etc. can be quickly and reliably charged with the HST-MV3 charging station. WARNING The matching battery adapter and the correct software and firmware must be mounted/installed to charge the batteries.

  • Page 17: Charging Process

    WARNING Make sure the polarity +/- is correct. When replacing batteries, make sure the new battery is not inserted until the LEDs have gone out (red or green). If a battery is replaced very quickly, the electronics may retain the status of the previous battery pack.

  • Page 18: Explanation Of The Led Signals / Functions

    3.2.2 Explanation of the LED signals / functions LED signals Function When the charging station is not in use, it switches to Laden Temperatur Akku defe sleep mode. In order to be able to charge a battery, the Akku voll Temperaturkontakt fehlt Volt Limit station must be activated by pressing the "wake up"...

  • Page 19: Sleep Function

    3.2.3 Sleep function The sleep function defines the time after which the charging station or the boards switches to sleep mode when it is not charging batteries. The time can be set freely up to 18:12:15 hours via the software. The charging station can be woken up from sleep mode by pressing the wake-up button on the front or by putting on a battery.

  • Page 20: Software

    Higher capacity at lower currents. The charging boxes are completely short-circuit-proof and protected against reverse polarity so the batteries will not be destroyed. If the polarity is reversed or there is a short-circuit, the charging box is disconnected from the power supply and a signal will sound, accompanied by a red blinking LED.

  • Page 21: Shut-Off Criteria

    • Defective cell detection (red blinking LED = battery is defective or battery no longer has full capacity) • Status indication via LED (red = charging / green = full) • Charging effectiveness higher than 95 % • Fan control • New, capacity-related charge retention mode for Ni-Cd and Ni-MH (prevents the char- ging capacities in the battery pack from drifting apart) •...

  • Page 22: Technical Data

    4 Technical data Model HST-MV3-02 / HST-MV3-04 / HST-MV3-04W 100 - 240 VAC, 50 - 60 Hz Input max. 624 VA (HST-MV3-02: 336VA) Output max. 56 VDC Level of efficiency > 89 % <‗ 45°C / 113°F (OFF) Power supply ventilator >‗ 50°C / 122°F (ON) HST-MV3-02 approx.

  • Page 23: Battery Adapter

    5 Battery adapter Order no. For battery types M-MV3-PR HS-Technik HST-PR 14.4 & 18 V Li-Ion Makita Makstar (BL) 14.4 & 18 V Li-Ion Makita Makstar (BH) 9.6 - 24 V Ni-MH M-MV3-BH HST-BL 14.4 & 18 V Li-Ion HST-BH 9.6 - 24 V Ni-MH...
  • Page 24 Example pictures: M-MV3-PR M-MV3-BH M-MV3-BO-LI M-MV3-FEIN M-MV3-CPN M-MV3-BO-10 M-MV3-UNI M-MV3-PA-LI M-MV3-PA-36 Additional battery adapters upon request. - 24 -...

  • Page 25: Changing The Battery Adapter

    Changing the battery adapter In order to mount another battery adapter, proceed as follows: The charging station must be switched off and the power supply must be disconnected prior to changing the adapter. Then, the adapter which needs to be changed must be loo- sened, so that the circuit board of the charger is accessible.
  • Page 26 Design 2 Loosen the torx screw in the middle by approx. a quarter of a turn to the left. Design 3 Loosen the two torx screws on the bottom of the adapter by approx. 8 - 10 turns to the left. Do not loosen the screws to far, because the nut can be loosen then too.
  • Page 27 6 Drawings 4-bay charger station row form (HST-MV3-04) 4-bay charger station cube form (HST-MV3-04W) Dimensions in mm (without battery adapter) Not shown to scale - 27 -...
  • Page 28 2-bay charger station (HST-MV3-02) Dimensions in mm (without battery adapter) Not shown to scale - 28 -...
  • Page 29 7 Spare parts list You can request a replacement parts list from info@hs-technik.com or via telephone +49 (0)7628 / 91 11 0. - 29 -...
  • Page 30 Device description: Charging station for charging Ni-Cd-, Ni-MH- und Li-Ion batteries from different manufacturers with 3.6 - 43.2 V and NTC temperature monitoring Type designation: HST-MV3-xx Manufacturer: HS-Technik GmbH Im Martelacker 12 D-79588 Efringen-Kirchen Directives: 2014/35/EU 2014/30/EU Applied standards: EN 60335-1:2012...
  • Page 31 Notes...
  • Page 32 HS-Technik GmbH Im Martelacker 12 D-79588 Efringen-Kirchen Telefon: +49 (0)7628 - 91 11-0 Telefax: +49 (0)7628 - 91 11-90 E-Mail: info@hs-technik.com Internet: www.hs-technik.com...
