Summary of Contents for Enviro ETS-TSN-S02N08
- Page 1 Manual (V1.2) (Thermoscan)
-
Page 2: Table Of Contents
TABLE OF CONTENT 1] History: ............................. 2 2] Product Selection (Model No.): ....................... 2 3] Introduction: ............................ 3 4] Operation Keys: ..........................4 5] Display Message: ..........................4 6] Product Specifications and Features: ..................... 5 7] Keypad Functions: ........................... 6 7.1 Admin Login: ............................ -
Page 3: History
3. Faster scanning and averaging of sensor Readings. 4. Fast display updating. 5. 3 wire compensation 08/07//2013 Pramila 6. System info menu added. 22/12/2018 Akshada Model No. Added 2] Product Selection (Model No.): Sr. No. Model No. Description ETS-TSN-S02N08 (0202SCAN01) ETS-TSN-Standard/Stability/Nonlinear/8Temp+8RH ETS-TSN-S02L08 (0202SCAN02) ETS-TSN-Standard/Stability/linear/8Temp+8RH... - Page 4 2 of 10...
-
Page 5: Introduction

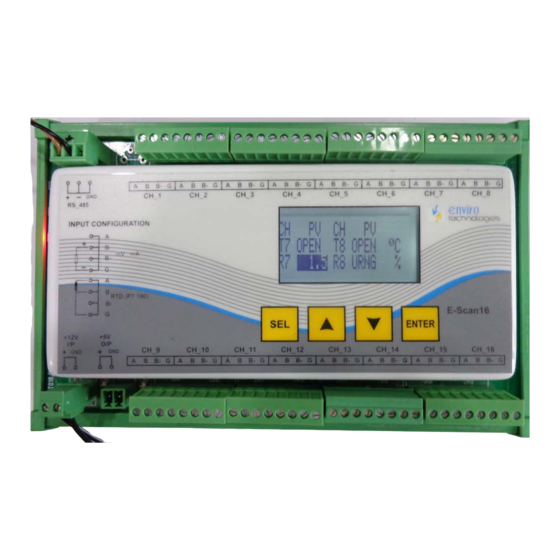

3] Introduction: Thermoscan (ETS- TSN) is microcontroller based electronic device which interfaced with thermolog with RS485 port. It is an updated hardware plus firmware version of thermoscan, with fast sensor scanning and three wire compensation facility. Can be configured for 8 channel stability (8 channel temperature+8 channel humidity) also it has enhanced with easy to use tactile membrane keypad plus sticker. -
Page 6: Operation Keys
4] Operation Keys: • To enter into main Menu. • Press this key two times to exit from main menu. • This key used for exit from parameter setting. • To Scroll the menu parameter • Increments numerical data for parameter setting. •... -
Page 7: Product Specifications And Features
6] Product Specifications and Features: Specifications Description Type : Microcontroller based Electronic device with 16 channel configuration.(no memory storage) Display : 128 X 64 Alphanumeric Graphical Display Keypad : Tactile membrane sticker with keypad Power supply : 12VDC @ 1A 12 watts Communication Port : RS 485 (PC Communication) and... -
Page 8: Keypad Functions
7] Keypad Functions: 7.1 Admin Login: ENVIRO TECHNOLOGY >> Admin Login Admin User: 00010 Password: 00001 Steps:- To login press SEL (select) key. Select admin login menu then press enter. Put admin user ID (10) and press enter key.... -
Page 9: Alarm Param. Set
7.3 Alarm Param. Set: ENVIRO TECHNOLOGY >> AlarmParParam.Set . Set Temperature Alarm Steps: Can be use to set Temperature alarm set point and hysteresis of channel 1 to channel 8.also can set humidity alarm set point and hysteresis of channel 9 to channel 16.... -
Page 10: Set Scan Time
7.6. Set Scan Time: ENVIRO TECHNOLOGY >>Set Scan Time Scan time: 001 Steps: Can set scanning time from 1 to 4. If we set scan time to 4 it will scan 1 channel four times and will show average of it on display.... -
Page 11: Ets-Tsn V1.1Connection Details
8] ETS-TSN V1.1Connection Details: 8.1 System Connection Details: TEMPERATURE INPUT SIGNAL THERMOLOG HUMIDITY INPUT SIGNAL 12VOLT THERMOSCAN SUPPLY RS485 Converter 9 of 10... -
Page 12: Installation Note
8.2 Installation Note: While installing this system one must take care of following points. All cables connecting to “thermoscan “must lay separately, they should not mix up with high voltage & high current cables (like Motor; compressor; contactor; Heater etc. ...
