TECHNICAL MANUAL
FOR
MODEL 9340
PRECISION DECADE RESISTANCE BOXES
NOTICE
The contents and information contained in this manual are proprietary to Guildline
Instruments Limited. They are to be used only as a guide to the operation and
maintenance of the equipment with which this manual was issued, and may not be
duplicated or transmitted by any means, either in whole or in part, without the
written permission of Guildline Instruments Limited.
TM9340-G-00
15 August, 2019
Advertisement
Table of Contents
Related Manuals for Guildline 9340 Series
Summary of Contents for Guildline 9340 Series
- Page 1 PRECISION DECADE RESISTANCE BOXES NOTICE The contents and information contained in this manual are proprietary to Guildline Instruments Limited. They are to be used only as a guide to the operation and maintenance of the equipment with which this manual was issued, and may not be duplicated or transmitted by any means, either in whole or in part, without the written permission of Guildline Instruments Limited.
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ....................1-1 1.1. FUNCTIONAL DESCRIPTION......................1-1 1.2. FEATURES ............................1-2 1.3. GENERAL THEORY ........................... 1-2 SPECIFICATIONS ....................2-1 RECEIPT AND INSPECTION ................3-1 3.1. GENERAL ............................. 3-1 3.2. PACKAGING ............................3-1 OPERATION AND MAINTENANCE ..............4-1 4.1. - Page 3 TABLE OF FIGURES FIGURE 1-1: 9340 SERIES OF RESISTANCE DECADE BOXES ..............1-1 FIGURE 1-2: DECADE BOX SCHEMATIC DIAGRAM ................... 1-2 TM9340-G-00 15 August, 2019...
- Page 4 LIST OF TABLES TABLE 2-1: MODEL SELECTION TABLE ......................2-2 TABLE 2-2: MODEL SPECIFICATIONS ......................2-4 TABLE 5-1: GENERAL ASSEMBLY PARTS LISTS ..................5-1 TM9340-G-00 15 August, 2019...
-
Page 5: Introduction

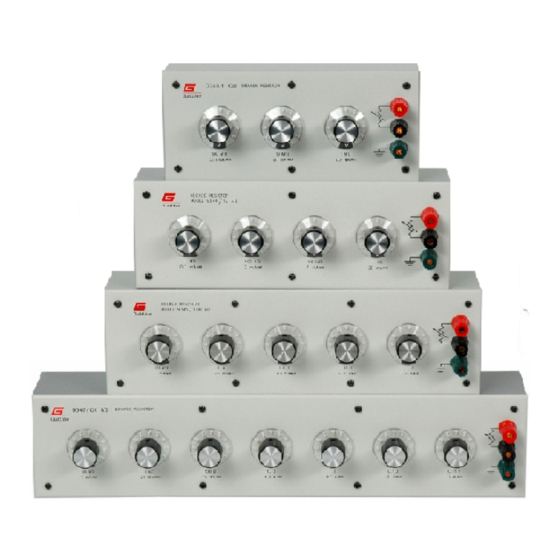

The Model 9340 is a Family of Precision Decade Resistance Boxes. It combines techniques established at Guildline in the construction and stabilizing of resistors, and low uncertainty switching techniques used in many of our instruments. The Model 9340 Series is available in decade range of from 3 to 7 decades. Each range is available in the full resistance range of from 0.01 ... -
Page 6: Features
1.3. GENERAL THEORY The 9340 series of decade boxes consist of 3, 4, 5, 6 or 7 decades of resistors switched in a series circuit. Figure 1-1 illustrates schematically the circuit of the Model 9347. The Models 9343, 9344, 9345, 9346 and 9347 are identical except for the number of decades. -
Page 7: Specifications
Section 2 SPECIFICATIONS Number of Decades Available: 3, 4, 5, 6 & 7 Zero Resistance (Typical): 0.0030 0.001 ohm per decade, after settling Breakdown Voltage: 1500 Volts to case. Dimensions: 9343 11.8cm X 23.3cm X 10.3cm high 9344 11.8cm X 29.0cm X 10.3cm high 9345 11.8cm X 34.7cm X 10.3cm high 9346 11.8cm X 40.5cm X 10.3cm high 9347 11.8cm X 46.1cm X 10.3cm high... - Page 8 Section 2 Table 2-1: Model Selection Table Model # of Minimum Maximum Model # of Minimum Maximum Number Decades Step (Ω’s) Value(Ω’s) Number Decades Step (Ω’s) Value(Ω’s) 9343/10 0.01 11.10 9344/100 0.01 111.1 9343/100 111.0 9344/1k 1.111 k 9343/1k 1.110 k 9344/10k 11.11 k 9343/10k...
- Page 9 Section 2 # of Model Minimum Maximum Decade Number Step (Ω’s) Value(Ω’s) 9347/100k 0.01 111.111 1 k 9347/1M 1.111 111 M 9347/10M 11.111 11 M 9347/100M 111.111 1 M 9347/1G 1.111 111 G 9347/10G 11.111 11 G 9347/100G 111.111 1 G 9347/1T 100k 1.111 111 T...
- Page 10 Section 2 Table 2-2: Model Specifications Maximum Coefficients Maximum Limits Dial Output Temperatur Stability Power Power Amperes Volts (x10 Setting) (Most Significant (± (ohms) (± ppm/yr) (± ppm/C) (W/step) (Adc/Step) (volts/step) Dial) ppm/mW) 0.01 0.1 Ω 0.07 1 Ω 10 Ω 100 Ω...
- Page 11 Section 2 Accuracy – Accuracy is based on the most significant dial (MSD) that is used for the resistance output. The accuracy of the MSD dial used for the resistance output determines the accuracy of all the dial settings for the resistance output desired. Accuracy for 1 MΩ...
-
Page 12: Receipt And Inspection
Section 3 RECEIPT AND INSPECTION 3.1. GENERAL Remove the instrument from its shipping container. The instrument was thoroughly tested and inspected before shipment and should be free from any electrical or mechanical damage when received. Nevertheless, you should perform an inspection for physical damage, ensure all items on the packing list are present and test the instrument, electrically, as soon as possible after receipt. -
Page 13: Operation And Maintenance
OPERATION AND MAINTENANCE 4.1. OPERATION The Model 9340 series of decade boxes are calibrated at the front panel red and black binding posts. The accuracy specification is determined as the resistance value offset from the zero selection resistance value. Above 1 k selection the zero resistance value is negligible. Below the 1 k selection the zero resistance value of the decade box needs to be taken into consideration to effect the specified accuracy. -
Page 14: Parts Lists
Section 5 PARTS LISTS General Assembly General Assembly Model Model Parts List Parts List 9343/10 18680.01.02-PL 9344/100 18697.01.02-PL 9343/100 18680.02.02-PL 9344/1k 18697.02.02-PL 9343/1k 18680.03.02-PL 9344/10k 18697.03.02-PL 9343/10k 18680.04.02-PL 9344/100k 18697.04.02-PL 9343/100k 18680.05.02-PL 9344/1M 18697.05.02-PL 9343/1M 18680.06.02-PL 9344/10M 18697.06.02-PL 9343/10M 18680.07.02-PL 9344/100M 18697.07.02-PL 9343/100M... - Page 15 Section 5 Decade Switch Parts List 0.01 Decade 18675.01.02-PL 0.1 Decade 18675.02.02-PL 1 Decade 18675.03.02-PL 10 Decade 18675.04.02-PL 100 Decade 18675.05.02-PL 1k Decade 18675.06.02-PL 10 k Decade 18675.07.02-PL 100 k Decade 18675.08.02-PL 1 M Decade 18675.09.02-PL 10 M...
-
Page 16: Drawings
Section 6 DRAWINGS Decade Box Drawing 9343 Decade Box General Assembly 18680.01.02 9344 Decade Box General Assembly 18697.01.02 9345 Decade Box General Assembly 18630.01.02 9346 Decade Box General Assembly 18660.01.02 9347 Decade Box General Assembly 18656.01.02 TM9340-G-00 15 August, 2019...
