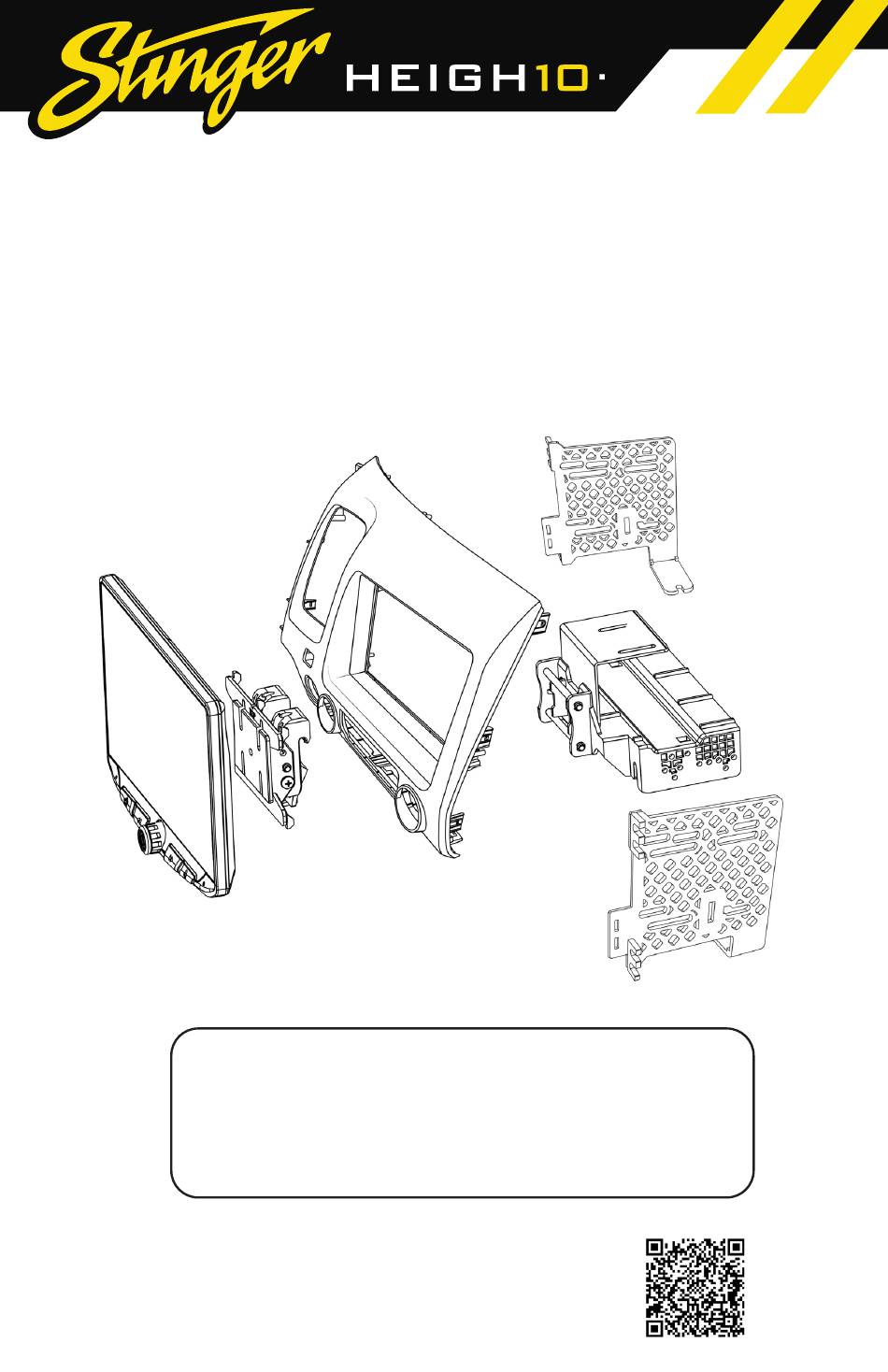

STH10CIV
2006-2011 Honda Civic
10" Multimedia Infotainment System
Installation Guide
NOTE! Read this installation guide thoroughly before disassembling
the vehicle or making wire connections. Installation of this product
requires technical skill, experience, and specialized tools.
If you feel uncomfortable performing the steps outlined in this
manual, please have this product professionally installed by an
authorized Stinger or Phoenix Gold Dealer.
A video installation guide is available at:
https://stingerelectronics.com/installvideos

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HEIGH10 STH10CIV and is the answer not in the manual?

Questions and answers

Summary of Contents for Stinger HEIGH10 STH10CIV

  • Page 1 If you feel uncomfortable performing the steps outlined in this manual, please have this product professionally installed by an authorized Stinger or Phoenix Gold Dealer. A video installation guide is available at: https://stingerelectronics.com/installvideos...
  • Page 2: Table Of Contents

    Contents Kit Components............... 3 Vehicle Disassembly............4 Wire Connections............8 Vehicle Wire Connections..........10 GPS Antenna / USB Ports..........12 Radio & Display Assembly..........14 Radio/Panel Assembly............16 Vehicle Installation............18 Function Test..............21 Vehicle Reassembly............22 PRECAUTIONS Disconnect the vehicle's negative battery cable before making any wire connections. Protect all vehicle surfaces with tape or plastic.
  • Page 3: Kit Components

    Kit Components NOTE! This installation guide outlines basic installation. For any additional features, adding a rear camera or amplifier, please refer to the additional instructions included with each component. Stinger UN1810 HWH812 Honda HONK838 10” Multimedia System 17 Pin Vehicle Plug...
  • Page 4: Vehicle Disassembly

    Vehicle Disassembly 1. Remove the knee bolster panel below the steering wheel. Start at the bottom of the panel, pull away from the dash to release the retaining clips. 2. Remove the Phillips screw to the left of the steering column. 3.
  • Page 5 Vehicle Disassembly 5. Pull out the radio/climate control assembly. Disconnect all the connectors plugged into the back of the assembly. 6. Using a plastic trim tool, remove the small plastic panel around the lock on the trunk release lever by the driver’s door sill.
  • Page 6 Vehicle Disassembly 9. Pull the kick panel to the right, toward the center of the vehicle, to unclip the two plastic clips. Carefully remove this panel by passing it over the hood release latch. Transferring the Factory Panel Components The following components will need to be removed from the factory radio/ climate control assembly and transferred to the HONK838 dash panel:...
  • Page 7 Vehicle Disassembly 1. Remove the four Phillips screws around the climate control panel. From the front of the radio panel, press on the center knobs to push the assembly out the back of the panel. The fan speed and temp control outer knobs will pop off when this is done.
  • Page 8: Wire Connections

    Wire Connections Parts Needed:  H06 Antenna Adapter  HWH812 Honda 17-Pin Vehicle Plug Pink, Green, Blue Extension Wires  From the HEIGH10 Box: 16-Pin Power / Speaker Harness  10-Pin Multi Camera Harness (Optional, See 6 below)  * Refer to pages 18-20 in the HEIGH10 Installation Guide for harness names and illustrations Referencing FIG A at right: 1.
  • Page 9 Wire Connections FIG A Green/Black > Rear L- < Green/Black White/Black > Front L- < White/Black Green > Rear L+ < Green HEIGH10 Honda 16 Pin 17-Pin White > Front L+ < White Power/Speaker Vehicle Harness Purple/Black > Rear R- < Purple/Black Harness Gray/Black >...
  • Page 10: Vehicle Wire Connections

    Vehicle Wire Connections Once the HEIGH10 and Honda Vehicle Plug have been connected, inside the vehicle, locate the vehicle side 17 Pin radio harness. This is the harness that was plugged into the back of the factory radio. Plug the radio harness into the Honda 17 Pin Vehicle Plug (A).
  • Page 11 In 2-door vehicles this wire will be Violet. Connecting The Optional Speed Sense Wire (Blue) If adding optional front camera or Stinger Navigation, the speed sense wire will need to be connected. 7. Connect the Blue Speed Sense wire from the HEIGH10 10 Pin Harness to the Blue wire in Pin 13 of the 17 Pin radio plug located behind the radio.
  • Page 12: Gps Antenna / Usb Ports

    GPS Antenna / USB Ports Parts Needed:  SSUSB2 Dual USB Extension From the HEIGH10 Box:  GPS Antenna The GPS Antenna is required for proper operation of Apple CarPlay and Android Auto. 1. Place the GPS antenna, facing up, on the metal bar above the radio location.
  • Page 13 GPS Antenna / USB Ports 3. To remove the factory power outlet, use a pick tool to press the two locking tabs (top and bottom) from inside the power outlet. Press and pull out on the inner metal sleeve. Once removed, unclip 2-Pin power harness.
  • Page 14: Radio & Display Assembly

    Radio & Display Assembly Parts Needed: From the HEIGH10 Box: HEIGH10 Display Radio Module Plastic Mounting Bracket Metal Mounting Bracket Display Mounting Clamp M4 x 6 Screws (4) M4 x 14 Screws (4) M5 x 10 Screws (2) NOTE! The Display Mounting Clamp is shipped connected to the Plastic Mounting Bracket.
  • Page 15 Radio & Display Assembly Start by attaching the Metal Bracket to the Plastic Mounting Bracket using two M4 X 6 screws (1). Slide the Radio Module in between and align the two holes with the metal bracket. Attach using two M4 X 6 screws (2). M4 X 6 Radio Module...
  • Page 16: Radio/Panel Assembly

    Radio/Panel Assembly Parts Needed: From the HEIGH10 Box: HONK838 Mounting Kit #10 X 3/8 Screws (2) M5 X 10 Screws (4) Remove shaded tabs on both Left & Right Side Brackets Trim Ring Install clips here on both Left & Right Brackets Remove 4 Shaded Left Side Locking Tabs...
  • Page 17 Radio/Panel Assembly Plastic Mounting Bracket on Top    6. Slide the HEIGH10 assembly into the dash kit from the back until the front of the assembly contacts main panel. 10 x 3/8 (2X) Upper Hole Both Sides 7. With the radio assembly fully forward, align the mounting holes as shown in Red.
  • Page 18: Vehicle Installation

    Vehicle Installation Parts Needed: From the HEIGH10 Box: LVDS Display Cable (Blue USB Type)  8 Pin Display Power Cable  Rubber Accordion Boot  1. Inside the vehicle with the completed radio/panel assembly, plug the following into the back of the HEIGH10 module: A - GPS Antenna B - 16-Pin Power/Speaker Harness...
  • Page 19 Vehicle Installation 4. After all connections are complete, bundle and secure excess wire and cables behind the radio. With the two display cables routed to the front, carefully slide the new radio/climate control panel into place. Align clips and push to fully seat panel. Before mounting the display, the optional accordion boot can be used to hide the display bracket and...
  • Page 20 Vehicle Installation 6. To attach the display, plug in both display cables into the back of the display and feed any slack back into the dash opening: A - Hook the bottom hook to the lower rail B - Push upward from the bottom C - Hook the top hooks on the upper rail NOTE: Once the display is installed,...
  • Page 21: Function Test

    Function Test It’s recommended to check all functions and features before reassembling the vehicle. Reconnect the Negative Battery Cable if removed. The HEIGH10 User Guide can be found at: https://stingerelectronics.com There is a TROUBLE SHOOTING section at the end of the User Guide. ...
  • Page 22: Vehicle Reassembly

    Vehicle Reassembly 1. Reinstall the two 8mm radio bracket bolts from inside the center pocket. 2. Reinstall the drivers kick panel. 3. Reinstall the drivers door sill panel. 4. Reinstall the Phillips screw into the trunk release cover and reinstall the lock cover panel.
  • Page 24 AGREEMENT: End user agrees to use this product in compliance with the instructions and terms of use and with all State and Federal laws. STINGER provides instructions and safety warnings with respect to this product and disclaims all liability for any use not in conjunction with those instructions or other misuse of its product.
