KNOW YOUR PRESSURE WASHER

Read this owner's manual and safety rules before operating your pressure washer.

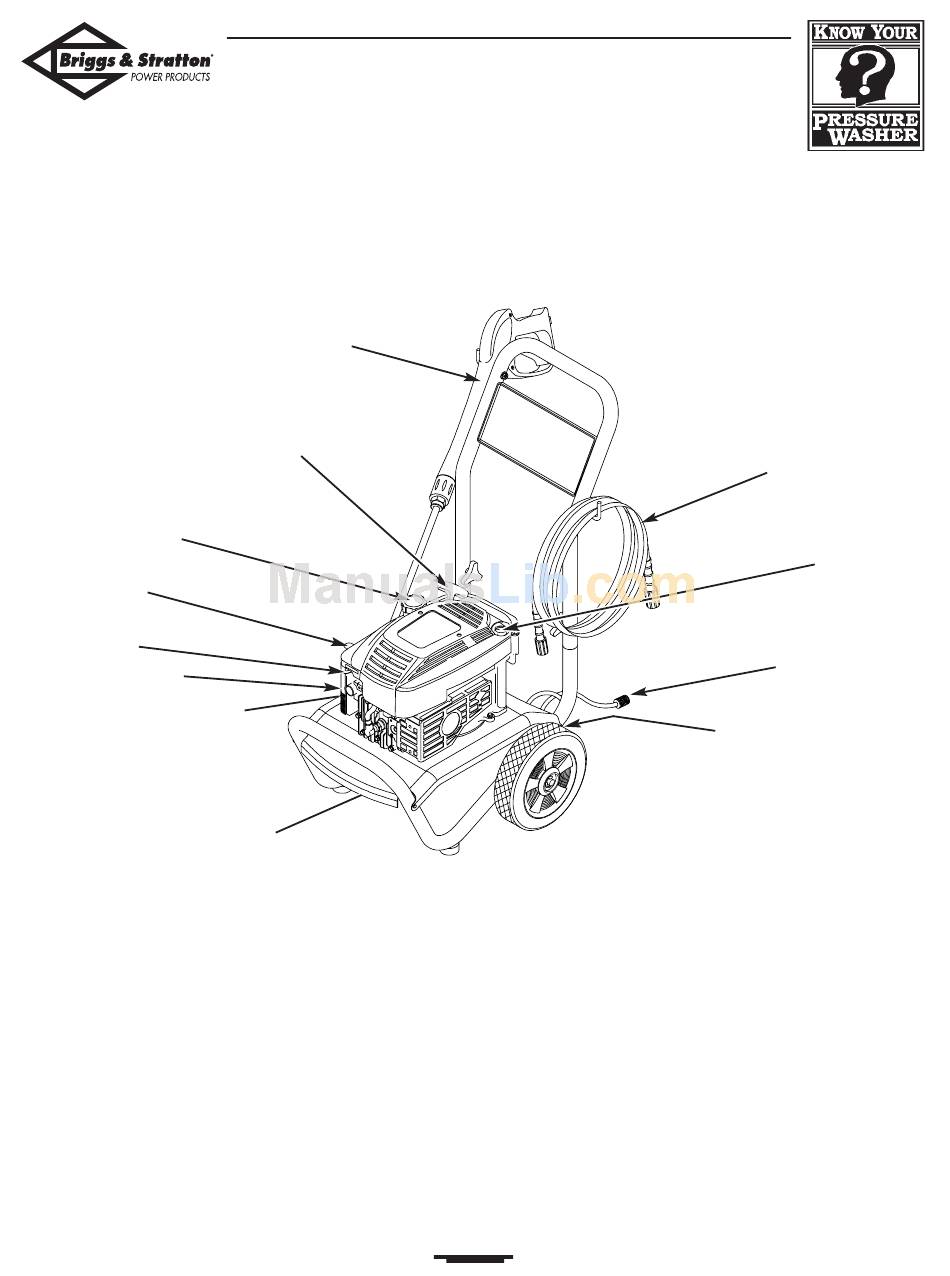

Compare the illustrations with your pressure washer to familiarize yourself with the locations of various controls and
adjustments. Save this manual for future reference.
Fuel Cap
Throttle Control Lever
Choke Lever
Air Filter
Adjustable Nozzle
Pump equipped with Automatic
Cool Down System
Adjustable Nozzle — Always attached to nozzle
extension. Adjustable nozzle allows you to adjust spray
pressure and spray pattern.
Air Filter — Dry type filter element limits the amount of
dirt and dust that gets in the engine.
Automatic Cool Down System — Cycles water
through pump when water reaches 125°-155°F.Warm
water will discharge from pump onto ground.This system
prevents internal pump damage.
Chemical Injection Siphon/Filter — Use to siphon
detergent or other pressure washer chemicals into the low
pressure stream.
Choke Lever — Prepares a cold engine for starting.
Data Tag (not shown, near rear of base plate) —
Provides model, revision and serial number of pressure washer.
Please have these readily available if calling for assistance.
Speed Clean™ 2300 PSI Pressure Washer
Spray Gun
Recoil Starter
Fuel Cap — Fill tank with regular unleaded fuel here.
Always leave room for fuel expansion.
High Pressure Hose — Connect one end to water
pump and the other end to spray gun.
High Pressure Outlet — Connection for high pressure
hose.
Oil Fill/Dipstick — Check and fill with oil here.
Pump — Develops high pressure.
Recoil Starter — Used for starting the engine manually.
Spray Gun — Controls the application of water onto
cleaning surface with trigger device. Includes safety latch.
Throttle Control Lever — Sets engine in starting mode
for recoil starter and stops a running engine.
Water Inlet — Connection for garden hose.
4
High Pressure Hose
Oil Fill/Dipstick
Chemical Injection
Siphon/Filter
High Pressure Outlet
& Water Inlet
