ASSEMBLY
INSTRUCTIONS
®
MANUAL

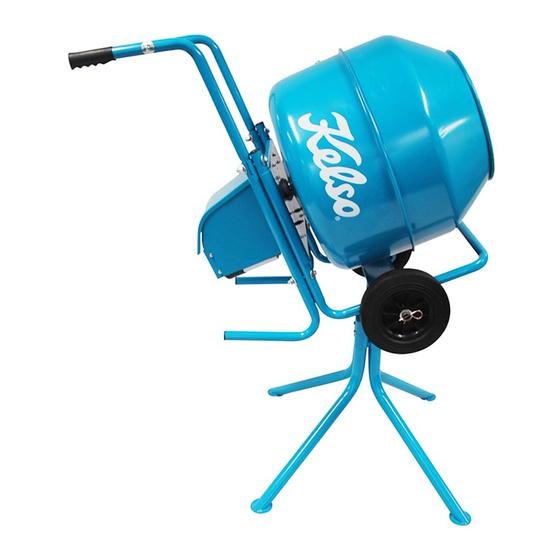

KC3.5FT
3.5CF 100L
COMPACT FRONT TIP
CEMENT MIXER
Carefully read through the entire Instruction Manual before using your new
Kelso Cement Mixer. Take special care to heed the Cautions and Warnings.
Your Kelso Cement Mixer has many features that will make the job faster and
easier. Safety, performance and dependability have been given top priority to
ensure easy operation and maintenance.
SAVE THIS MANUAL FOR FUTURE REFERENCE
CT0016_Kelso-FrontTipMixer-Manual_FA.indd 1
26/06/2015 12:13 pm
Advertisement
Table of Contents
Related Manuals for Kelso KC3.5FT
Summary of Contents for Kelso KC3.5FT
- Page 1 Carefully read through the entire Instruction Manual before using your new Kelso Cement Mixer. Take special care to heed the Cautions and Warnings. Your Kelso Cement Mixer has many features that will make the job faster and easier. Safety, performance and dependability have been given top priority to ensure easy operation and maintenance.
-
Page 2: Table Of Contents
CONTENTS Product Description Maintenance Tools Required for Assembly Operation Description of Symbols Cleaning Specifications General Inspection General Safety Rules Repairs Additional Safety Rules for Cement Mixers 5 Power Cord Product Contents Warranty Assembly Instructions Contact Details CT0016_Kelso-FrontTipMixer-Manual_FA.indd 2 26/06/2015 12:13 pm... -
Page 3: Product Description
PRODUCT DESCRIPTION 1. Cement Mixer Bowl 5. Stand 2. Tipping Handles 6. Tipping Lever 3. Motor Housing 7. Wheels 4. Frame 8. On/Off Switch TOOLS REQUIRED FOR ASSEMBLY • 6mm, 10mm & 16mm Spanners (Open or Ring) • 6mm, 10mm & 14mm Sockets •... -
Page 4: Description Of Symbols
b. Do not operate power tools in explosive DESCRIPTION OF SYMBOLS atmospheres, such as the presence of flammable The rating plate on your cement mixer may show liquids, gases or dust. Power tools create sparks symbols. These represent important information which may ignite the dust or fumes. -
Page 5: Additional Safety Rules For Cement Mixers
3. Personal Safety e. Maintain power tools. Check for misalignments or binding of moving parts, breakage of parts a. Stay alert, watch what you are doing and use and any other condition that may affect the common sense when operating the power power tools’... - Page 6 • Check that there is a ground connection. Prevent • Adjustments, measurements and cleaning jobs body contact with grounded surfaces: pipes, are to be performed only when the motor is radiators, ranges, and refrigerator enclosures. switched off and the mains plug removed. Make sure your fingers do not touch the plug’s •...
-
Page 7: Product Contents
PRODUCT CONTENTS Frame Assembly Contents Stand Assembly Contents Main Frame 1 unit Leg Shaft 1 unit Leg Section 2 unit 4 units Handle Section 2 units Handle Cross Bar 1 unit 10” Solid Wheel 2 units Hardware Contents (All bolts include a washer and lock nut) M10X80 Hex Head Bolts 4 units Motor &... -
Page 8: Assembly Instructions
ASSEMBLY INSTRUCTIONS 1. FRAME ASSEMBLY Ensure that you are working on a clean flat surface. A drop sheet may be useful to ensure parts are not damaged during assembly. Grab the Main Frame Section (A) and Leg Section (B). Use bolt (N) and insert with curved washer into the bottom hole from the front to connect the Main Frame to the Leg Section. - Page 9 3. MOTOR ATTACHMENT Grab the Motor (F) and remove the nuts, spring washers and washers from all four fixing points. Turn the frame over so that the handles are pointing up. Now insert the four fixing points in the motor into the matching holes of the frame back plate ensuring the motor shaft sits in the larger cut out hole.
- Page 10 5. MOTOR COVER HINGE The Left Cover (H) has attached a hinge that is used to hold the Top Cover (K) open. Unwind the nut that is attached to the bolt on the end of the hinge. Line the hole of the hinge up with the fixing point in the Top Cover, insert bolt and attach the nut.
-
Page 11: Maintenance
2. With your hands, and bystanders well away from MAINTENANCE all moving parts, press the ‘ON’ button to start • Clean the cement mixer after every use. the cement mixer. • Remove dust and dirt frequently. Cleaning is 3. Load the bowl with the suggested mixture as best done with a rag or a soft brush. -
Page 12: Cleaning
CLEANING GENERAL INSPECTION • Regularly check that all the bolts and nuts are • After every mix it is advisable to clear any tight. They may vibrate loose over time. build-up of cement from the mixing paddles inside the bowl. If left to dry the cement can be •...
