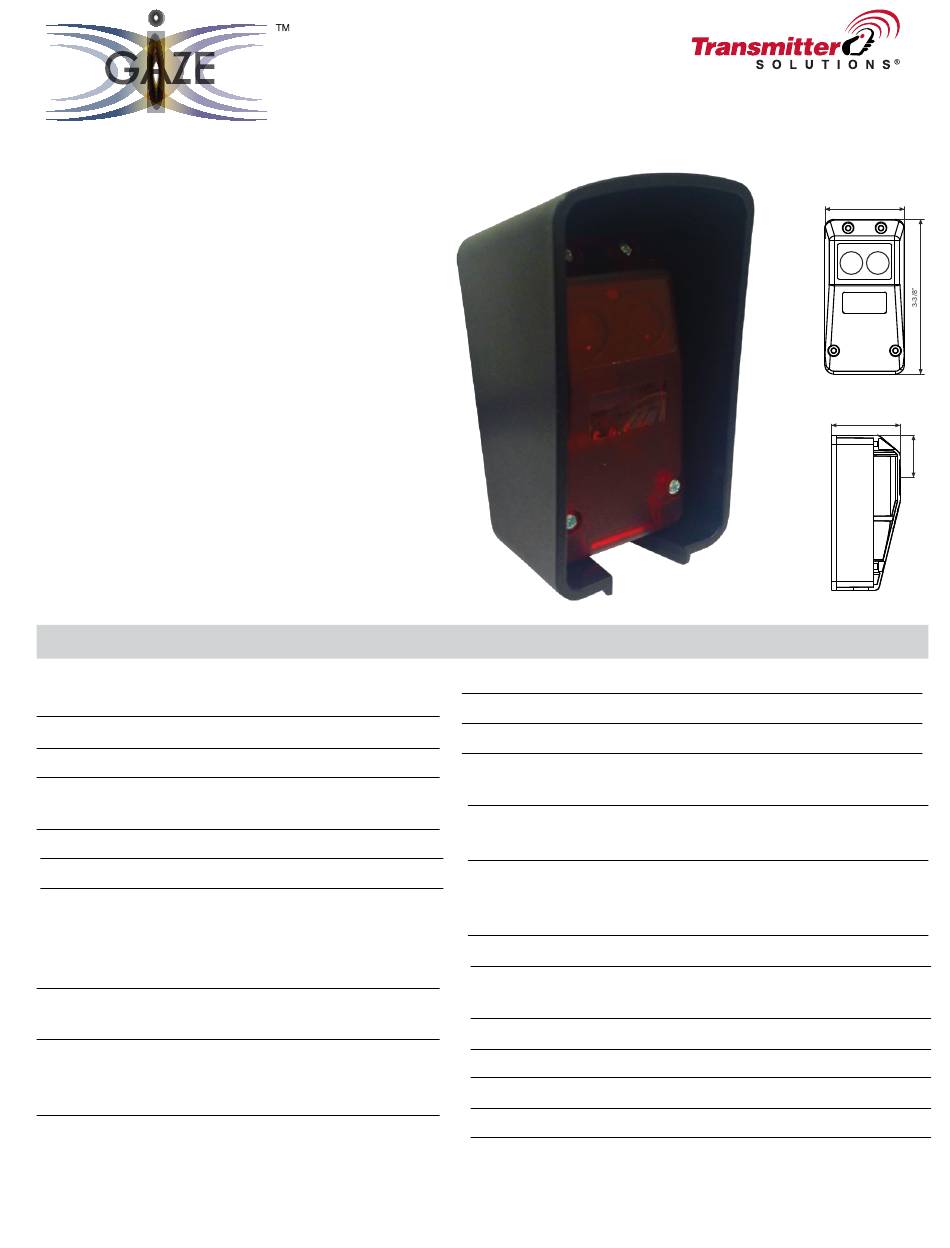

Transmitter Solutions IGAZE iGAZER45P Installation Manual

INSTALLATION MANUAL
FEATURES:
• Range 45-50 feet
• Immune to external light sources
• High degree of protection
• Optional cable entry
• Terminal compartment
• Polarisation filter optical system
• Test input
• Operating voltage 10-40VDC or 24VAC ±25%
• Protected against power supply polarity reversal
• Relay output
• Easy adjustment of the optical sensor
• Dirt indicator
• LED alignment indication
Operating voltage
Operational
Current consumption
Type of light
Aperture angle
Output
Switch rating
Response time
Relay delay
Type of switching

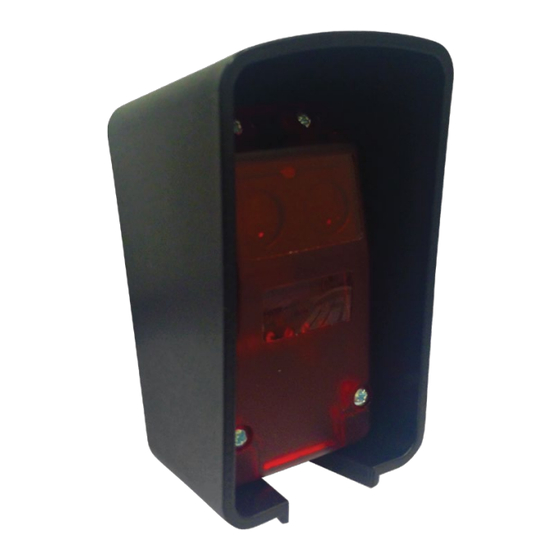

iGAZER45P
Polarized Photo Eyes
TECHNICAL DATA
10...40VDC
24VAC, ± 25%
<100ms after power on
max. 30mA/24V
red, 680nm
pulsed, polarised
approx. 1.5° total angle
relay, changeover contact
min. 1mA/min. 5VDC
max. 0.6A/50V AC
max. 0.5A/48VDC
(resistive load)
<10ms, detection of light
beam interruption
when the light beam is
uninterrupted again, the relay
picks up with 100ms delay
responsive to brightness, i.e.
the relay picks up when the
light beam is uninterrupted
Ranges 45-50 feet
Indications dual LED r ed/green
Light beam interrupted = lights up r ed
Light beam uninterrupted, spare critical function capacity.
= flashes red at 4Hz
Light beam uninterrupted, high spare function capacity.
= lights up green
Additional function test input
(when 0V at terminal 1 the
transmitter switches off)
Type of connection screw terminal max. 1.5mm²
Casing material lower part: ABS-GF15%
upper part: PMMA, red
Degree of protection IP67, to EN60529
Operating temp. -13°...140°F
Storage temp. -31°...176°F
Weight approx. 2 oz
Size 3-3/8 x 1-3/4 x 1-1/2 in³ (LxWxH)
1-3/4"
1-1/2"
1"
