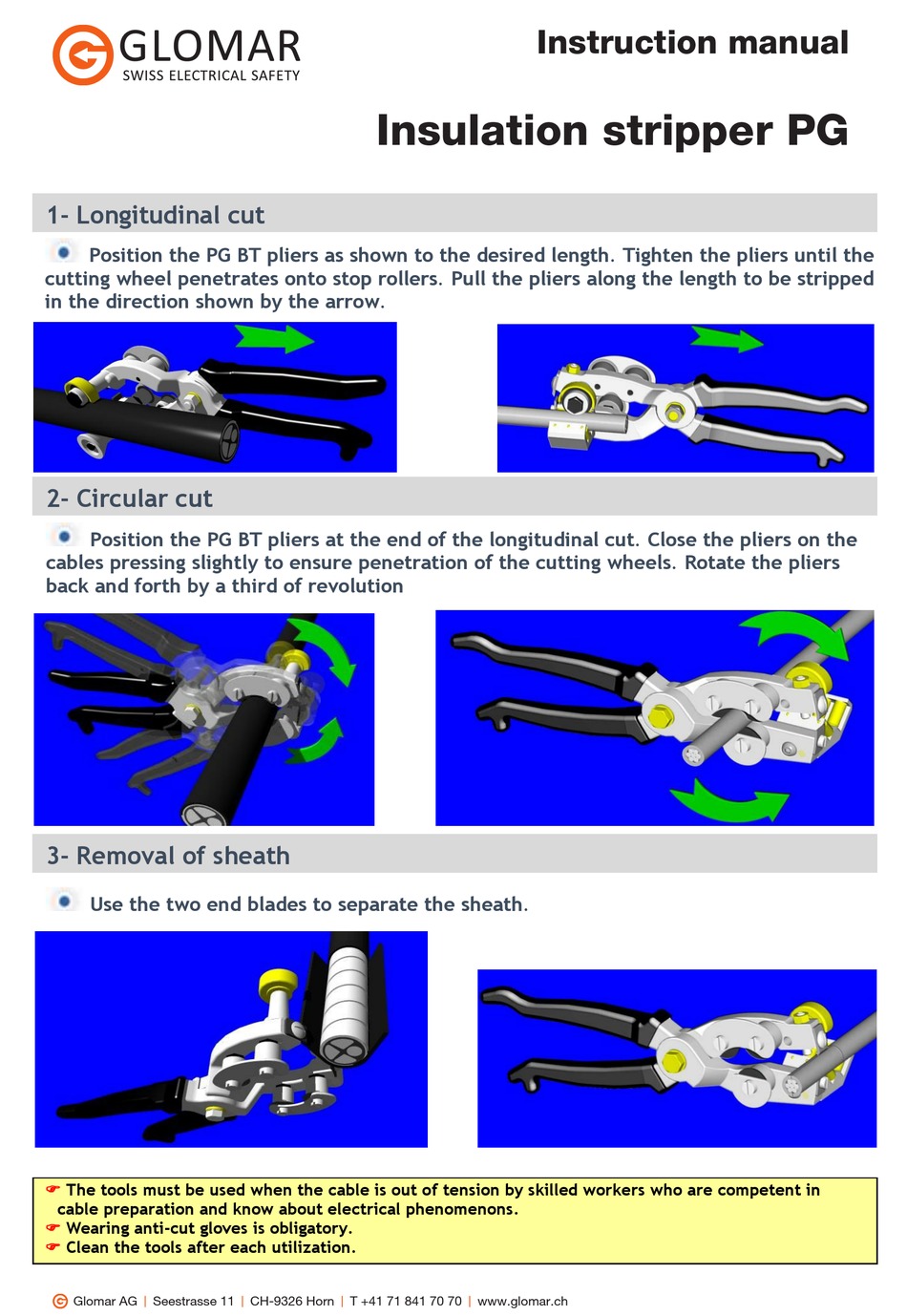

Glomar PG-1 Instruction Manual

1- Longitudinal cut

Position the PG BT pliers as shown to the desired length. Tighten the pliers until the
cutting wheel penetrates onto stop rollers. Pull the pliers along the length to be stripped
in the direction shown by the arrow.

2- Circular cut

Position the PG BT pliers at the end of the longitudinal cut. Close the pliers on the
cables pressing slightly to ensure penetration of the cutting wheels. Rotate the pliers
back and forth by a third of revolution

3- Removal of sheath

Use the two end blades to separate the sheath.
The tools must be used when the cable is out of tension by skilled workers who are competent in

cable preparation and know about electrical phenomenons.
Wearing anti-cut gloves is obligatory.

Clean the tools after each utilization.

