- Page 1 REV.11.19.A Equipment Supply Company Instruction Manual HD Adjustable Wheel Dolly ESCO #70134 Copyright © 2019 Equipment Supply Co., All rights reserved...

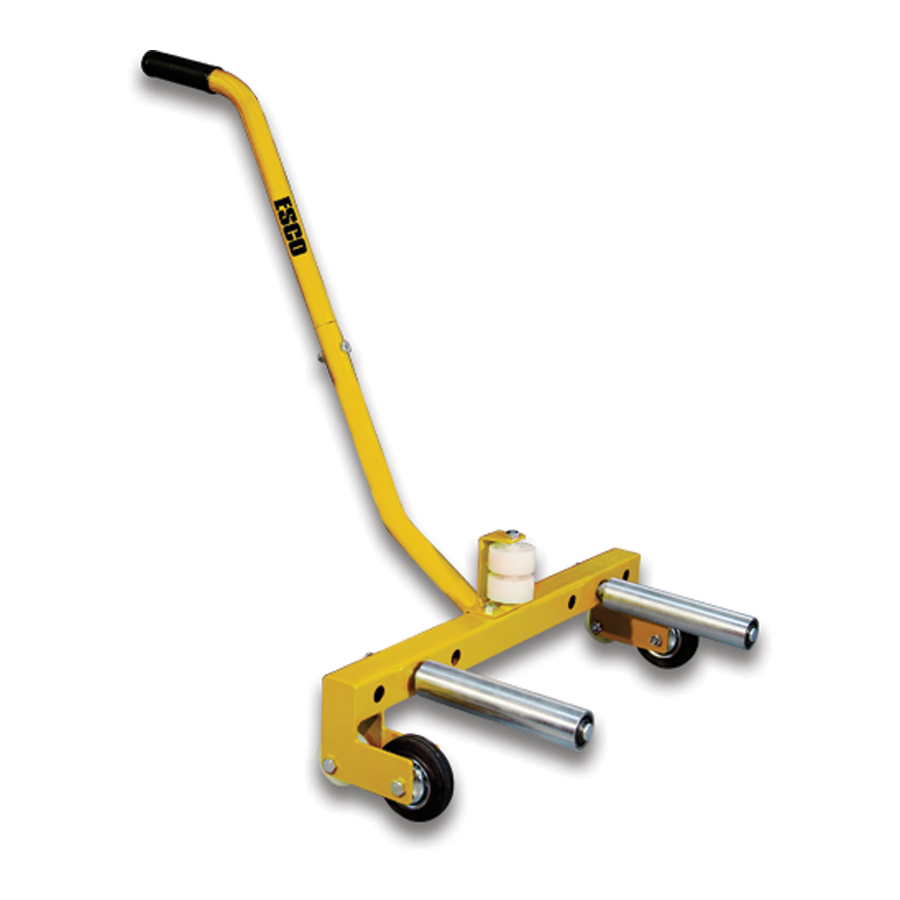

- Page 2 Product Description The HD Adjustable Wheel Dolly [Model #70134] is designed to assist service technicians as they move through the tire/wheel service process. Its light- weight, portable, and adjustable design makes it an ideal tire dolly for any service shop.
- Page 3 ESCO HD Adjustable Wheel Dolly Model #70134 REV.11.19.A Product Specifications Lifting Capacity: 330 lbs. | 150 kg Tire Diameter: 23.5” - 43.5” | 597 mm - 1105 mm Roller Spread: 12” - 24” | 304 mm - 609 mm Length: 47” | 1193 mm Width: 27.5”...
- Page 4 Always inspect the tool before use to ensure it is working properly. If rollers do not roll smoothly, DO NOT put into service. Contact the manufacturer or an authorized distributor of ESCO product and parts for replacement parts or consultation.
- Page 5 ESCO HD Adjustable Wheel Dolly Model #70134 REV.11.19.A When using the TIRE WHEEL DOLLY ALWAYS use two-hands. (See Figure 1 for example) Figure 1 - Always Use Both Hands MOVING TIRE ON TIRE WHEEL DOLLY: Make sure the tire is properly centered on the rollers of the TIRE WHEEL DOLLY.
- Page 6 ESCO HD Adjustable Wheel Dolly Model #70134 REV.11.19.A REV.11.19.A #70134 Parts Breakdown #70134 Replacement Part Numbers Item Description Item Description Hand Sleeve Bushing Rear Handle Screw Bolt Wheel Spring Washer Lock Nut Wing Nut Snap Pin Front Handle Axle Screw...
- Page 7 Not only do we service our own products, but we also service our competitors’ products. In addition to ESCO’s 30 years of providing quality repair service, ESCO has reached out and partnered with more than 50+ hydraulic repair facilities across the US & Canada, to deliver quality repair and timely return of products.
- Page 8 ESCO website WWW.ESCO.NET CONTACT INFO: www.esco.net - info@esco.net 15270 Flight Path Drive Brooksville, FL 34604 PH. 352.754.1117 Toll Free. 1.800.352.9852 (US, Canada Only) Fax: 352.754.4508 ESCO - The Proper Tools to Keep Your Equipment Moving! Stay Connected with ESCO...
